STS740EKC60400 - Exmark 60" Staris S-Series Stand-On Mower, Koh (SN: 404314159 - 406294344) (2019) Hydraulic Assembly Parts Diagram

60" Staris S-Series Stand-On Mower, Koh

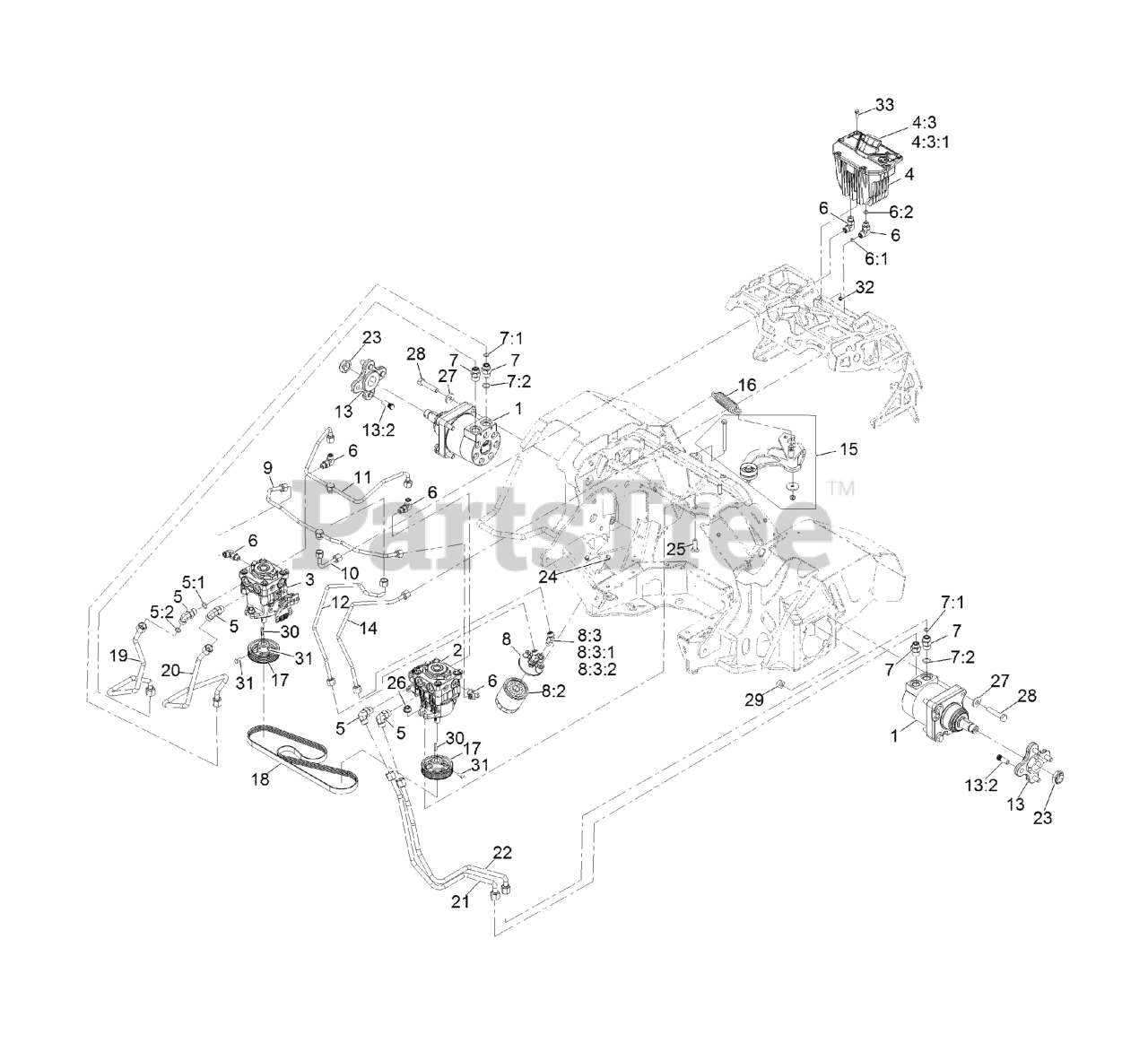

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-1162

MOTOR, TL195

$1072.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1926

USE 142-2933
(Superseded to 142-2933)

$1247.99

$

Usually ships in 3-6 days

0

3

Exmark 135-1927

USE 142-2934
(Superseded to 142-2934)

$1247.99

$

Usually ships in 3-6 days

0

4

Exmark 135-3305

ASM, HYDRAULIC RESERVOIR

$201.99

$

In Stock, only 1 left!

0

4:3

Exmark 116-9273

RESERVOIR CAP ASM

$27.99

$

Usually ships in 3-6 days

0

4:3:1

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

5:1

Exmark 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

5:2

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

6

Exmark 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

6:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

6:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Exmark 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

7:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

7:2

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

8

Exmark 135-2179

ASM, FILTER HEAD

$110.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$49.99

$

In Stock, Qty 13

0

8:3

Exmark 340-96

Adapter

$43.99

$

Usually ships in 3-6 days

0

8:3:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

8:3:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

9

Exmark 135-7056

LINE, HYDRAULIC, CASE TEE

$94.99

$

Usually ships in 3-6 days

0

10

Exmark 135-7054

LINE, HYDRAULIC, CASE

$44.99

$

Usually ships in 3-6 days

0

11

Exmark 135-7055

LINE, HYDRAULIC, CHARGE TEE

$94.99

$

Usually ships in 3-6 days

0

12

Exmark 135-7053

LINE, HYDRAULIC, CHARGE

$105.99

$

Usually ships in 3-6 days

0

13

Exmark 135-2214

ASM, HUB W/ STUDS

$57.99

$

In Stock, only 1 left!

0

13:2

Exmark 116-1696

STUD-WHEEL

$3.99

$

In Stock, Qty 20+

0

14

Exmark 135-7052

LINE, HYDRAULIC, SUPPLY

$101.99

$

Usually ships in 3-6 days

0

15

Exmark 135-1270

ASM, IDLER ARM

$105.99

$

In Stock, only 3 left!

0

16

Exmark 135-1272

SPRING, EXTENSION

$17.99

$

In Stock, only 2 left!

0

17

Exmark 135-1197

USE 142-3044
(Superseded to 142-3044)

$108.99

$

In Stock, only 1 left!

0

18

Exmark 135-1196

BELT, PVK5

$36.99

$

In Stock, only 1 left!

0

19

Exmark 135-3151

USE 142-5455
(Superseded to 142-5455)

$78.99

$

Usually ships in 3-6 days

0

20

Exmark 135-3152

USE 142-5456
(Superseded to 142-5456)

$78.99

$

Usually ships in 3-6 days

0

21

Exmark 135-3153

USE 142-6120
(Superseded to 142-6120)

$101.99

$

Usually ships in 3-6 days

0

22

Exmark 135-3154

USE 142-6121
(Superseded to 142-6121)

$101.99

$

In Stock, only 2 left!

0

23

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

24

Exmark 119-1065

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

25

Exmark 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

26

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

27

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

28

Exmark 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

29

Exmark 3290-510

NUT-SQUARE

$1.99

$

Usually ships in 3-6 days

0

30

Exmark 135-7971

KEY, 5MM X 5MM X 29MM

$2.99

$

In Stock, only 3 left!

0

31

Exmark 3241-7

Screw-SQH

$3.99

$

In Stock, Qty 12

0

32

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

35

Exmark 340-99

Fitting-HYD, 90 DEG

$40.99

$

Usually ships in 3-6 days

0

35:1

Exmark 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

35:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

36

Exmark 73-0041

Washer-Thrust

$1.99

$

Usually ships in 3-6 days

0
