STS730GKA60400 - Exmark 60" Staris S-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (2019) Fuel Assembly Parts Diagram

60" Staris S-Series Stand-On Mower, Kaw

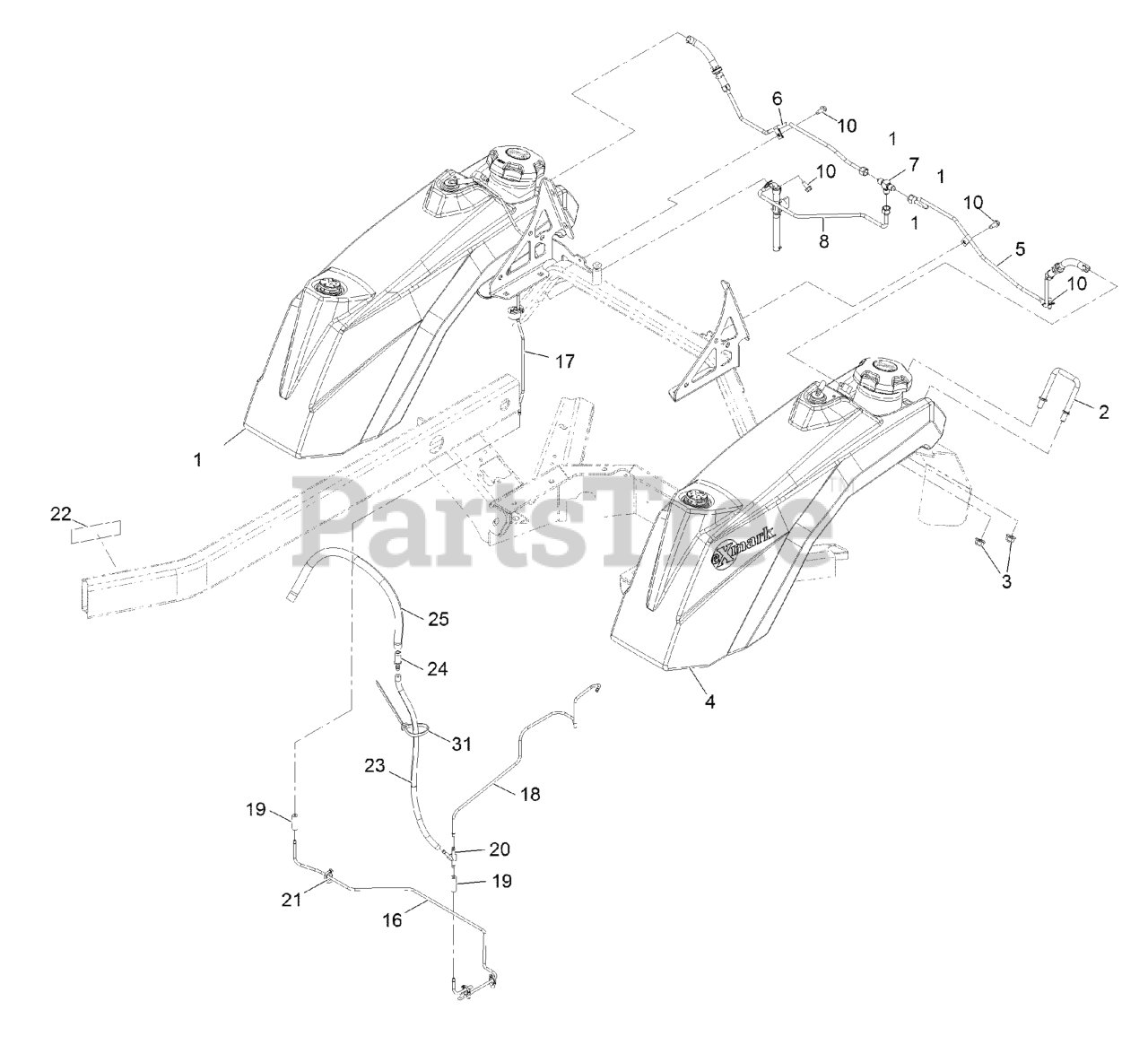

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-2227

ASM, Rt Fuel Tank

$699.99

$

Usually ships in 3-6 days

0

2

Exmark 135-7299

Clamp, Tank

$16.99

$

Usually ships in 3-6 days

0

3

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 135-2225

ASM, Lt Fuel Tank

$699.99

$

Usually ships in 3-6 days

0

5

Exmark 135-2197

ASM, Left Fuel Line
(Superseded to 142-3597)

$96.99

$

Usually ships in 3-6 days

0

6

Exmark 135-2198

ASM, Right Fuel Line

$96.99

$

Usually ships in 3-6 days

0

7

Exmark 135-2203

Fitting, 2603-4-4-4

$12.99

$

Usually ships in 3-6 days

0

8

Exmark 135-2199

ASM, Kaw Fuel Line
(Superseded to 142-3599)

$104.99

$

Usually ships in 3-6 days

0

10

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

16

Exmark 135-2219

Line, Vent, Main

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 135-2221

Line, Vent, Right

$49.99

$

Usually ships in 3-6 days

0

18

Exmark 135-7097

Line, Vent, Left

$49.99

$

Usually ships in 3-6 days

0

19

Exmark 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

20

Exmark 135-2222

Fitting, 3/16" Y

$8.49

$

Usually ships in 3-6 days

0

21

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

22

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 135-3950

Hose, Vent

$19.99

$

Usually ships in 3-6 days

0

24

Exmark 98-2952

FITTING-STRAIGHT

$9.99

$

In Stock, only 1 left!

0

25

Exmark 116-5087

HOSE-FUEL

$19.99

$

Usually ships in 3-6 days

0

31

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
