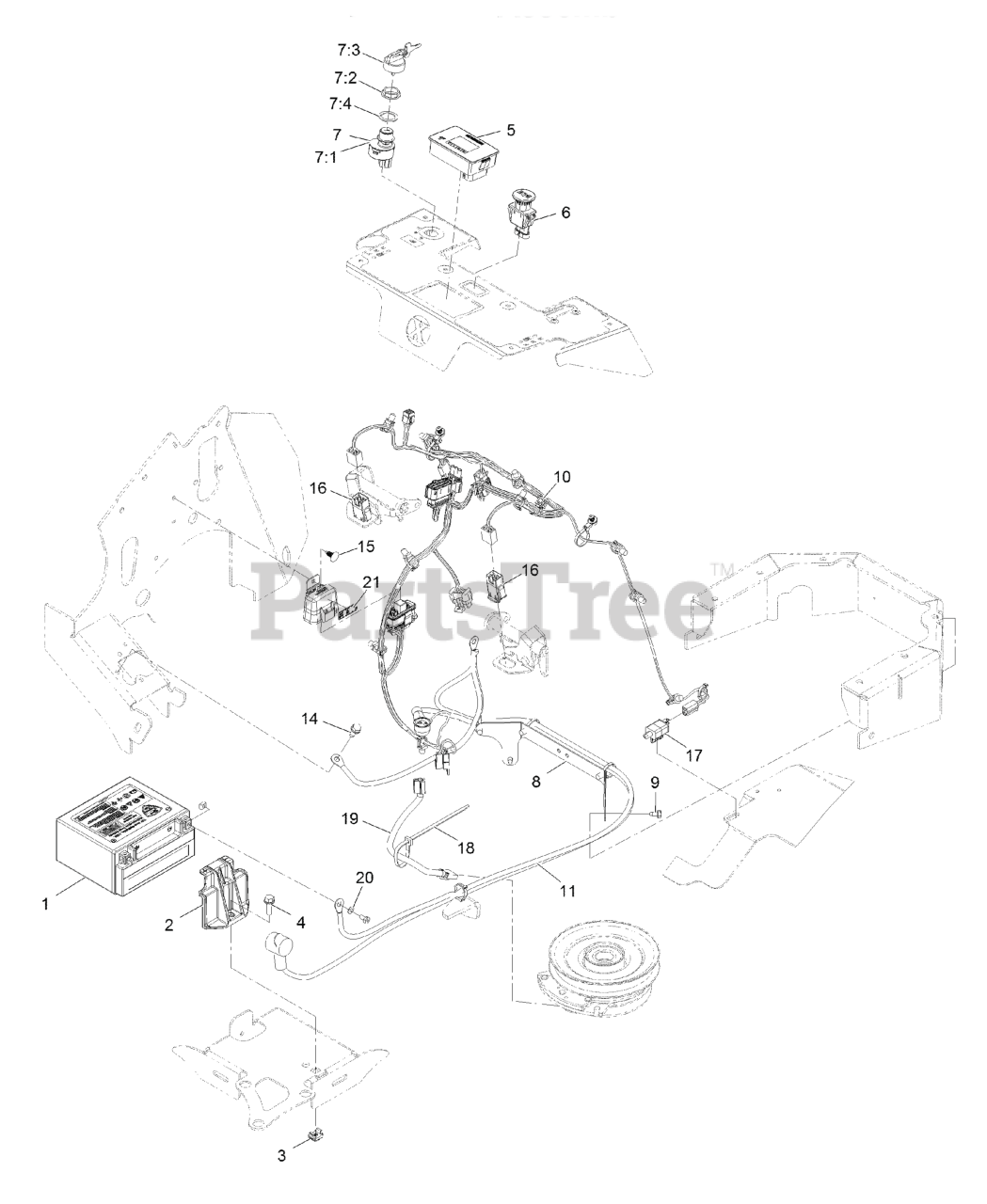

STS730GKA52400 - Exmark 52" Staris S-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

52" Staris S-Series Stand-On Mower, Kaw

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-4421

BATTERY, AGM, NON-SPILLABLE
(Superseded to 142-7345)

$244.90

$

Usually ships in 4-12 days

0

2

Exmark 135-4422

HOLD DOWN, BATTERY

$6.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4473

NUT, SNAP

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

5

Exmark 135-2471

Meter-Hour

$

$

Not available

6

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

7

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

7:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

7:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

7:3

Exmark 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

7:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

8

Exmark 135-1924-03

SUPPORT, BATTERY CABLE

$18.99

$

Usually ships in 3-6 days

0

9

Exmark 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

10

Exmark 135-2021

USE 142-2948
(Superseded to 142-2948)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$334.99

$

Usually ships in 3-6 days

0

11

Exmark 135-2126

HARNESS-BATTERY

$100.99

$

In Stock, only 4 left!

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

16

Exmark 104-3338

SWITCH-DELTA

$54.99

$

Usually ships in 3-6 days

0

17

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

18

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

19

Exmark 109-9274

HARNESS-CLUTCH

$20.99

$

In Stock, Qty 5

0

20

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

21

Exmark 126-7875

DECAL-FUSE

$3.49

$

Usually ships in 3-6 days

0

99

Exmark 135-7732

HARDWARE KIT, BATTERY

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0
