STS730AKC52400 - Exmark 52" Staris S-Series Stand-On Mower, Koh (SN: 406294345 - 408644345) (Rev A) (2020) Controls Assembly Parts Diagram

52" Staris S-Series Stand-On Mower, Koh

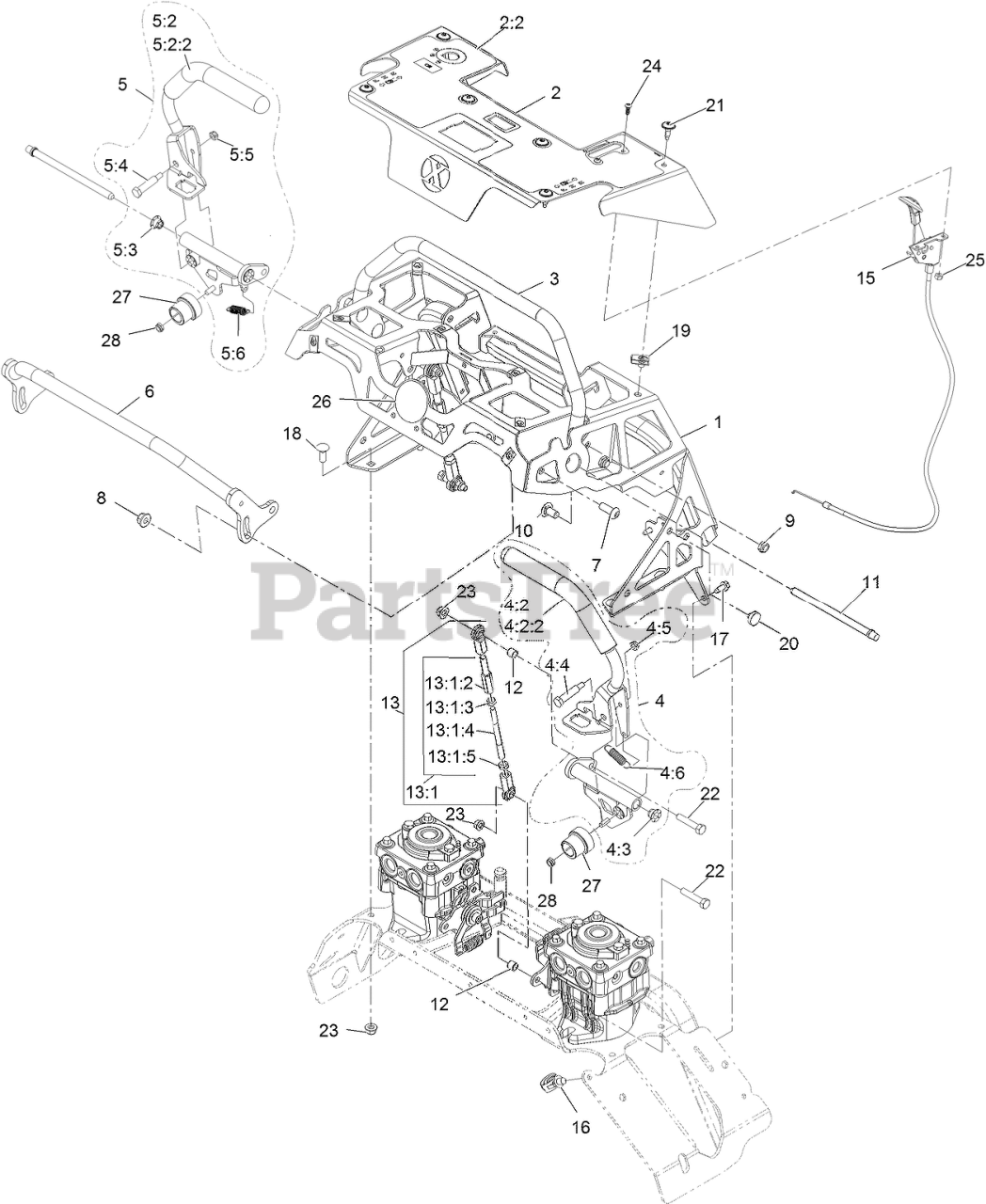

Controls Assembly Parts Diagram

  • Title

1

Exmark 135-4142

ASM, Control Tower W/Decal

$435.99

$

Usually ships in 3-6 days

0

2

Exmark 142-2418

ASM, Control Panel W/ Decal

$152.99

$

Usually ships in 3-6 days

0

2:2

Exmark 135-6772

Decal-Control Panel EFI

$32.99

$

Usually ships in 3-6 days

0

3

Exmark 135-3430-03

Weld, Rear Ref Bar

$47.99

$

Usually ships in 3-6 days

0

4

Exmark 135-1304

ASM, Motion Control, Lt

$100.99

$

Usually ships in 3-6 days

0

4:2

Exmark 135-2546

ASM, Lt Control Lever W/ Grip

$39.99

$

Usually ships in 3-6 days

0

4:2:2

Exmark 135-3301

Grip, Drive Lever

$9.49

$

Usually ships in 3-6 days

0

4:3

Exmark 135-6412

Bearing, Igus

$14.99

$

Usually ships in 3-6 days

0

4:4

Exmark 121-1229

BOLT-SHOULDER
(Superseded to 136-7195)

$1.99

$

Usually ships in 3-6 days

0

4:5

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4:6

Exmark 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 135-1305

ASM, Motion Control, Rt

$100.99

$

Usually ships in 3-6 days

0

5:2

Exmark 135-2547

ASM, Rt Control Lever W/ Grip

$39.99

$

Usually ships in 3-6 days

0

5:2:2

Exmark 135-3301

Grip, Drive Lever

$9.49

$

Usually ships in 3-6 days

0

5:3

Exmark 135-6412

Bearing, Igus

$14.99

$

Usually ships in 3-6 days

0

5:4

Exmark 121-1229

BOLT-SHOULDER
(Superseded to 136-7195)

$1.99

$

Usually ships in 3-6 days

0

5:5

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5:6

Exmark 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

6

Exmark 135-3432-03

Weld, Front Ref Bar

$47.99

$

Usually ships in 3-6 days

0

7

Exmark 3274-94

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Exmark 135-1277

PIN, PIVOT

$19.99

$

Usually ships in 3-6 days

0

12

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

13

Exmark 135-7116

ASM, Linkage

$52.99

$

In Stock, only 1 left!

0

13:1

ASM, Motion Control Link

Note: Not serviced separately

$

$

Not available

13:1:2

Exmark 116-4755

ROD-ADJUSTMENT

$50.99

$

Usually ships in 3-6 days

0

13:1:3

Exmark 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

13:1:4

Exmark 135-1291

Link, Motion Control
(Superseded to 135-1292)

$69.99

$

Usually ships in 3-6 days

0

13:1:5

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

15

Exmark 135-4352

CABLE, THROTTLE

$36.99

$

Usually ships in 3-6 days

0

16

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

17

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

18

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

19

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

21

Exmark 135-3494

Screw, Torx

$2.99

$

In Stock, Qty 5

0

22

Exmark 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

23

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 135-3176

SCREW, BHCS

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Exmark 135-2281

Decal-Cover

$3.49

$

Usually ships in 3-6 days

0

27

Exmark 126-1499

CAM

$7.99

$

Usually ships in 3-6 days

0

28

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
