STS730AKC52400 - Exmark 52" Staris S-Series Stand-On Mower, Koh (SN: 404314159 - 406294344) (Rev B) (2019) Drive Wheel Assembly Parts Diagram
52" Staris S-Series Stand-On Mower, Koh

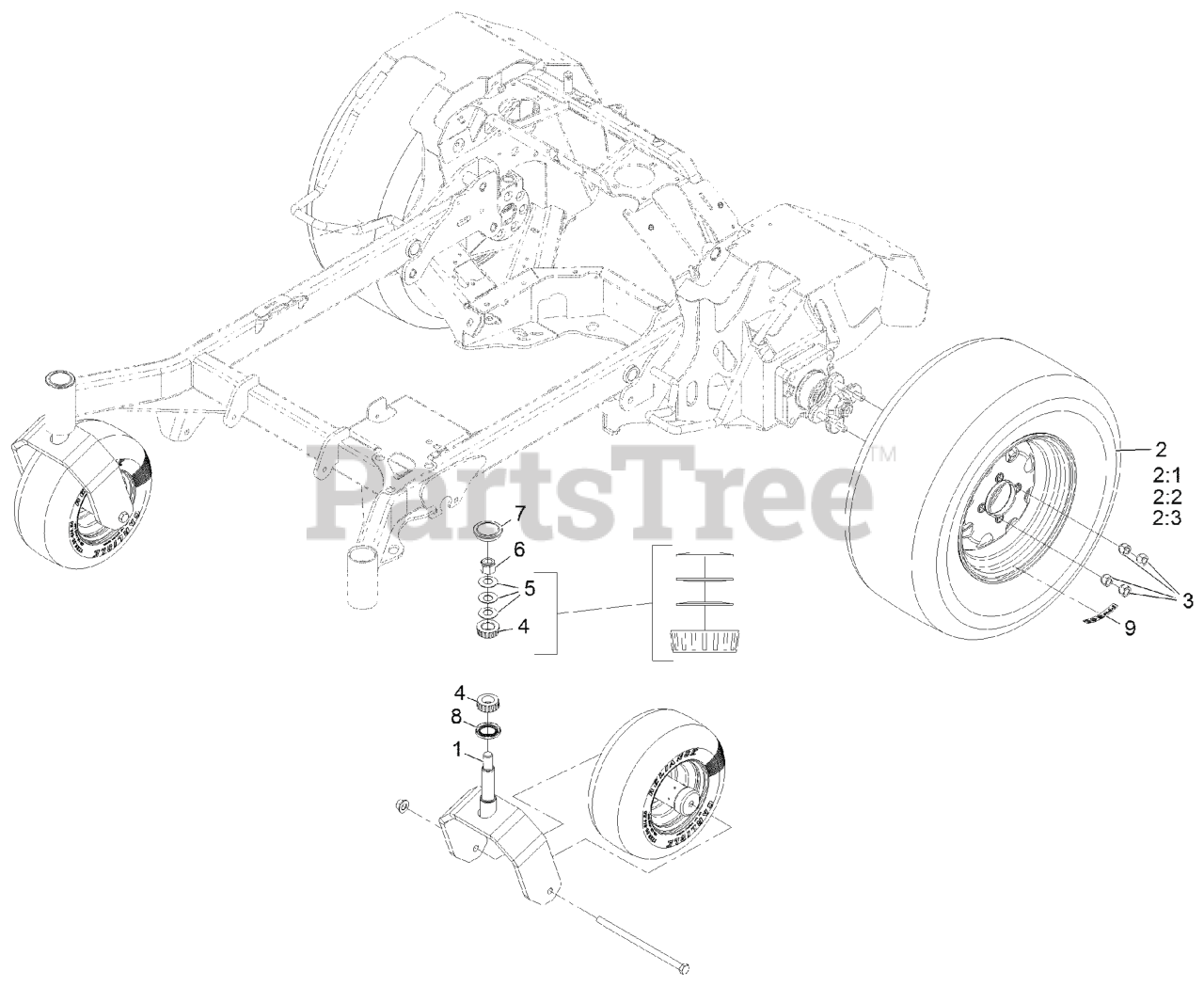

Drive Wheel Assembly Parts Diagram
1
ASM, Caster, 12X6-6
Note: Not serviced separately
$
$
Not available
Exmark 135-2215
ASM, WHEEL AND TIRE
$381.99
$
Usually ships in 3-6 days
$226.99
$
Usually ships in 3-6 days
Exmark 135-2170
RIM, 12 X 7
$294.99
$
Usually ships in 3-6 days
Exmark 232-27
Stem-Valve
$
$
Not available
Exmark 242-50
NUT-LUG
$1.99
$
In Stock, Qty 20+
Exmark 1-543509
Cone-Bearing Tapered Roller
$13.99
$
In Stock, Qty 20+
Exmark 1-633508
WASHER-BELLVILLE
$3.49
$
In Stock, Qty 20+
Exmark 3296-51
NUT-LOCK, NI
$6.49
$
In Stock, Qty 10
Exmark 103-4882
CAP-GREASE
$7.99
$
In Stock, Qty 20+
Exmark 116-5647
SEAL-GREASE
$5.49
$
In Stock, Qty 20+
Exmark 126-2055
DECAL-TORQUE, WHEEL HUB LUG
$6.49
$
In Stock, Qty 11
