STS651GKA48400 - Exmark 48" Staris S-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) Deck Lift Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Kaw

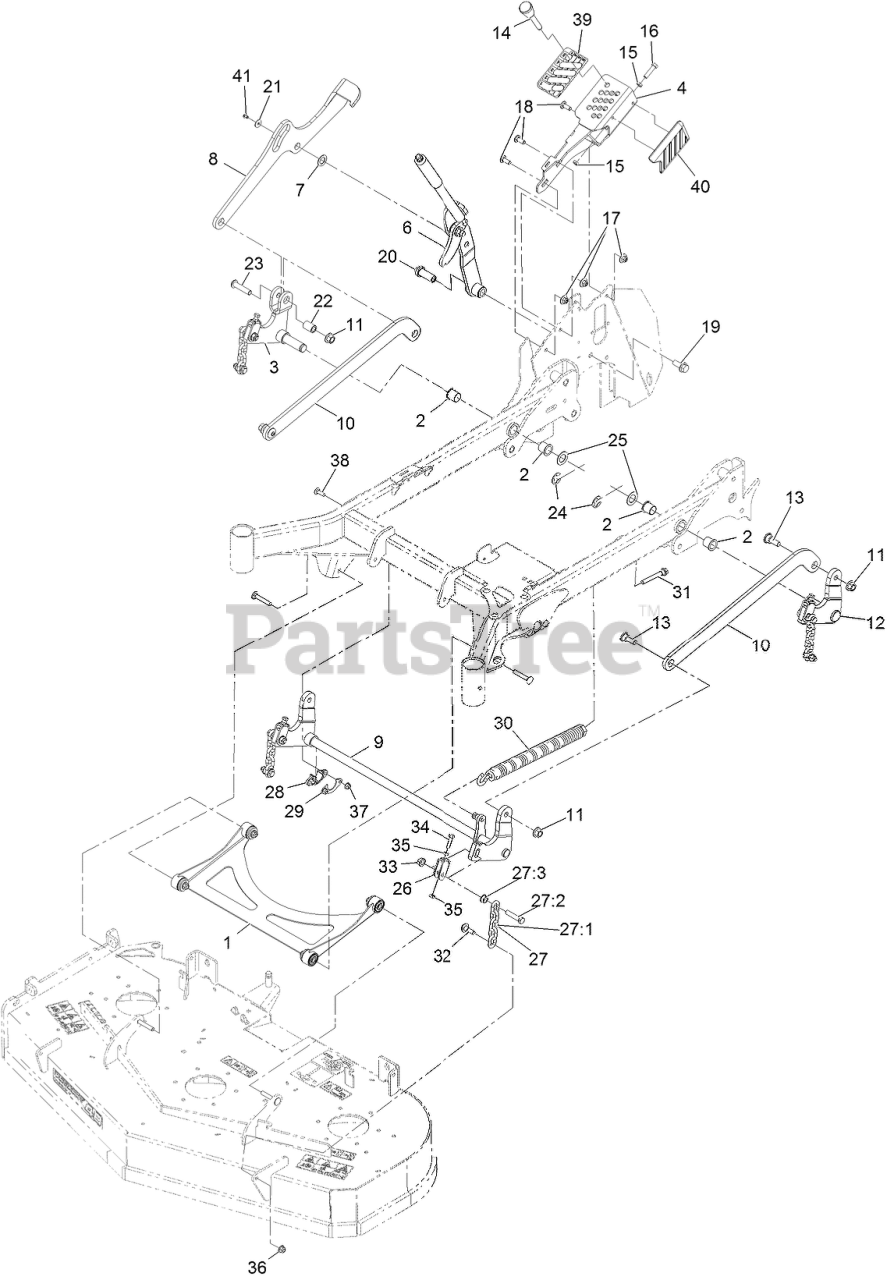

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 142-3574

ASM, Deck Strut
(Superseded to 142-4364)

$119.99

$

In Stock, only 2 left!

0

2

Exmark 135-1248

BUSHING, IGUS

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 135-4586-03

Weld, Bellcrank, Rt

$58.99

$

Usually ships in 3-6 days

0

4

Exmark 142-2300-03

Weld, HOC Index

$124.99

$

Usually ships in 3-6 days

0

6

Exmark 135-7940

ASM, HOC Lever
(Superseded to 142-6677)

$174.99

$

Usually ships in 3-6 days

0

7

Exmark 119-7640

WASHER-THRUST

$3.49

$

In Stock, Qty 11

0

8

Exmark 135-7782-03

Strap, HOC Index
(Superseded to 142-3040-03)

$97.99

$

Usually ships in 3-6 days

0

9

Exmark 135-4585-03

Weld, HOC Cross Shaft

$211.99

$

Usually ships in 3-6 days

0

10

Exmark 135-1253-03

Strap, HOC Lift

$57.99

$

Usually ships in 3-6 days

0

11

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

12

Exmark 135-4587-03

Weld, Bellcrank

$58.99

$

Usually ships in 3-6 days

0

13

Exmark 135-1259

Bolt, Shoulder

$16.99

$

Usually ships in 3-6 days

0

14

Exmark 126-5401

PIN-HOC

$21.99

$

Usually ships in 3-6 days

0

15

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

16

Exmark 323-50

BOLT-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Exmark 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

20

Exmark 142-2181

Pivot, HOC Lever

$15.99

$

Usually ships in 3-6 days

0

21

Exmark 3256-67

WASHER

$0.99

$

In Stock, Qty 9

0

22

Exmark 135-3944

Spacer, HOC

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 135-3945

Screw-HSBH

$9.49

$

Usually ships in 3-6 days

0

24

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

25

Exmark 119-2332

Washer-Flat

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, Qty 5

0

27

Exmark 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

0

27:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

27:2

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

27:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

28

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 20+

0

29

Exmark 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 15

0

30

Exmark 116-0886

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

31

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

33

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

34

Exmark 322-47

SCREW-HH

$2.49

$

In Stock, Qty 18

0

35

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

36

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

39

Exmark 135-2280

Decal-Height Of Cut

$9.49

$

Usually ships in 3-6 days

0

40

Exmark 135-5337

Pad, Knee

$12.99

$

Usually ships in 3-6 days

0

41

Exmark 142-2216

Screw, 1/4-20 X 3/8 PH Torx

$6.99

$

Usually ships in 3-6 days

0
