STS651GKA48400 - Exmark 48" Staris S-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (Rev C) (2019) Park Brake Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Kaw

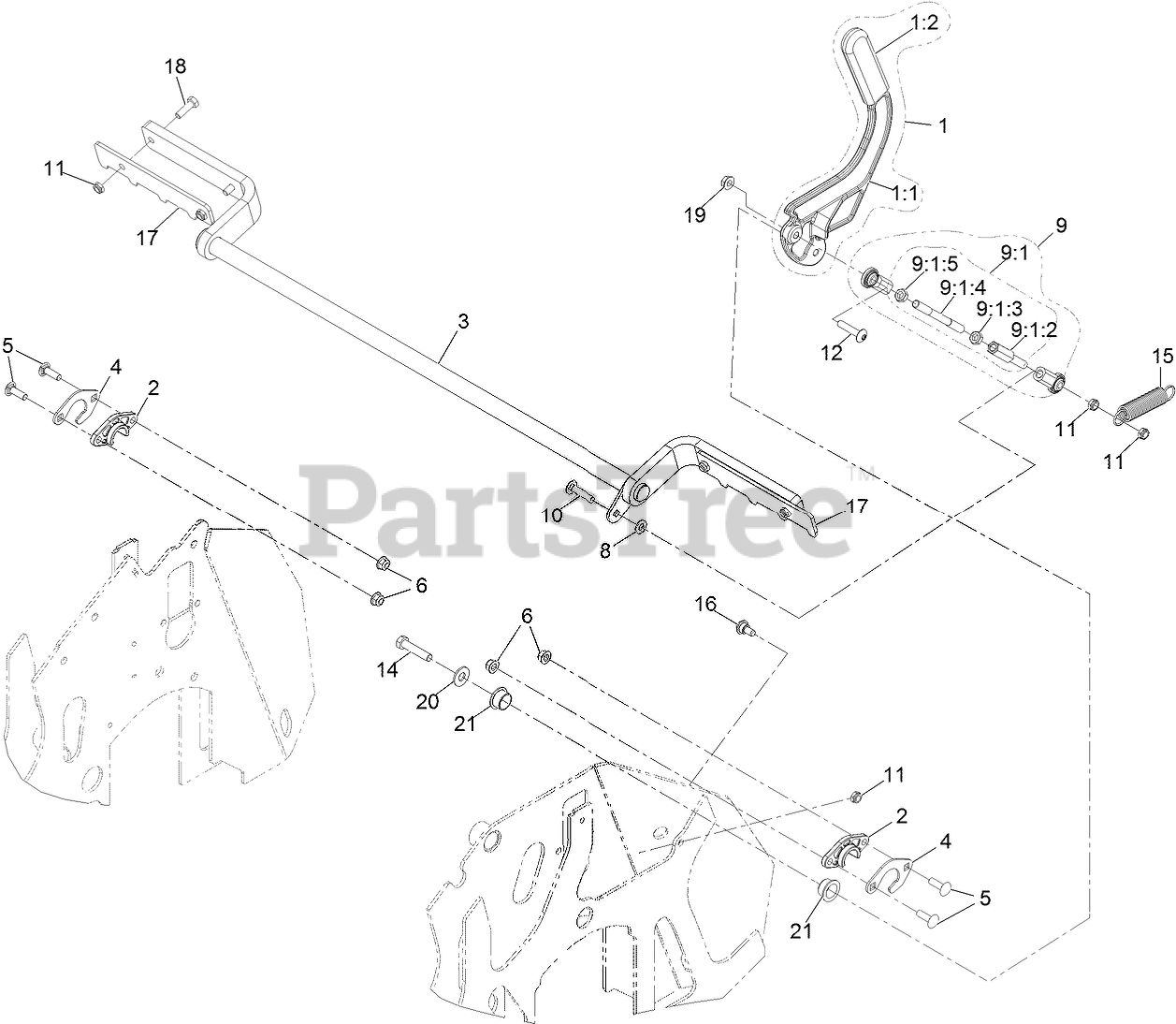

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 135-7092

ASM, Brake Lever W/ Grip
(Superseded to 142-2413)

$56.99

$

Usually ships in 3-6 days

0

1:1

Exmark 135-6984-03

Weld, Brake Lever

$

$

Not available

1:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

2

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 12

0

3

Exmark 135-1189-03

Weld, Brake Shaft
(Superseded to 142-3739-03)

$167.99

$

Usually ships in 3-6 days

0

4

Exmark 135-7867

Support, Bearing

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Exmark 135-7116

ASM, Linkage

$51.99

$

In Stock, only 1 left!

0

9:1

ASM, Motion Control Link

Note: Not serviced separately

$

$

Not available

9:1:2

Exmark 116-4755

ROD-ADJUSTMENT

$50.99

$

Usually ships in 3-6 days

0

9:1:3

Exmark 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

9:1:4

Exmark 135-1291

Link, Motion Control
(Superseded to 135-1292)

$69.99

$

Usually ships in 3-6 days

0

9:1:5

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

10

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

11

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

12

Exmark 126-7439

SCREW-TORX

$2.99

$

In Stock, only 1 left!

0

14

Exmark 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

15

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

16

Exmark 120-9471

BOLT-SHOULDER

$5.49

$

In Stock, only 2 left!

0

17

Exmark 135-6577-03

Plate, Snubber

$18.99

$

Usually ships in 3-6 days

0

18

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

20

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

21

Exmark 135-7091

Bushing, Igus

$6.99

$

Usually ships in 3-6 days

0
