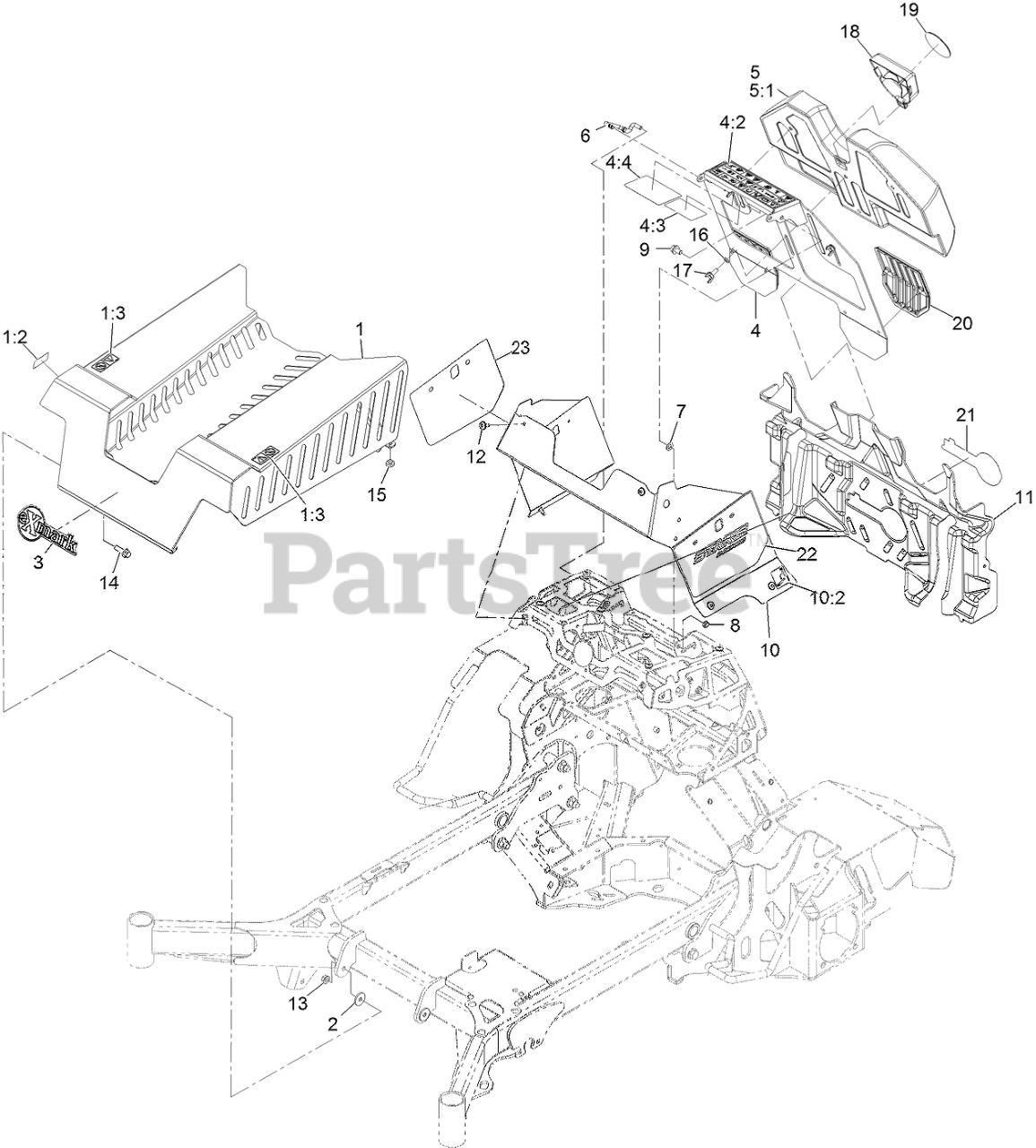

STS651GKA48400 - Exmark 48" Staris S-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (Rev C) (2019) Guarding Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Kaw

Guarding Assembly Parts Diagram

  • Title
1

Exmark 135-2163

ASM, Front Cover W/ Decals

$488.99

$

Usually ships in 3-6 days

0

1:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:3

Exmark 119-6807

Decal-Warning

$7.99

$

Usually ships in 3-6 days

0

2

Exmark 107675

WASHER

$3.49

$

In Stock, Qty 18

0

3

Exmark 126-6877

DECAL, EXMARK LOGO

$7.49

$

In Stock, Qty 10

0

4

Exmark 135-2162

ASM, Pad Backing W/Decals

$200.99

$

Usually ships in 3-6 days

0

4:2

Exmark 135-2412

Decal-Warning

$7.49

$

Usually ships in 3-6 days

0

4:3

Exmark 116-8253

DECAL-DRIVE RELEASE

$2.99

$

Usually ships in 3-6 days

0

4:4

Exmark 135-2266

Decal-Service Aid

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 135-1320

Pad, Thigh

$234.99

$

Usually ships in 3-6 days

0

5:1

Exmark 135-6556

Cover, Pad

$137.99

$

Usually ships in 3-6 days

0

6

Exmark 135-1611

ROD, PROP

$16.99

$

Usually ships in 3-6 days

0

7

Exmark 131-8667

WASHER-THRUST

$1.49

$

In Stock, Qty 12

0

8

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

9

Exmark 3234-9

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 135-2164

ASM, Tower Skin W/ Decals

$200.99

$

Usually ships in 3-6 days

0

10:2

Exmark 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

In Stock, only 1 left!

0

11

Exmark 135-1605

Panel, Heat Deflector

$163.99

$

Usually ships in 3-6 days

0

12

Exmark 135-3494

Screw, Torx

$2.99

$

In Stock, Qty 5

0

13

$0.99

$

In Stock, Qty 20+

0

14

Exmark 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

15

$6.49

$

In Stock, Qty 11

0

16

Exmark 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 135-2180

SCREW, THUMB

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 135-2596

Insert, Pad

$8.99

$

In Stock, Qty 6

0

19

Exmark 135-2714

Decal-X Logo Badge 3 In

$8.99

$

In Stock, Qty 6

0

20

Exmark 135-5107

Pad, Knee

$16.99

$

In Stock, only 2 left!

0

21

Exmark 135-7280

Decal-Exmark Logo

$11.99

$

Usually ships in 3-6 days

0

22

Exmark 135-6809

Decal-Staris Logo Lt

$20.99

$

Usually ships in 3-6 days

0

23

Exmark 135-6810

Decal-Staris Logo Rt

$20.99

$

Usually ships in 3-6 days

0
