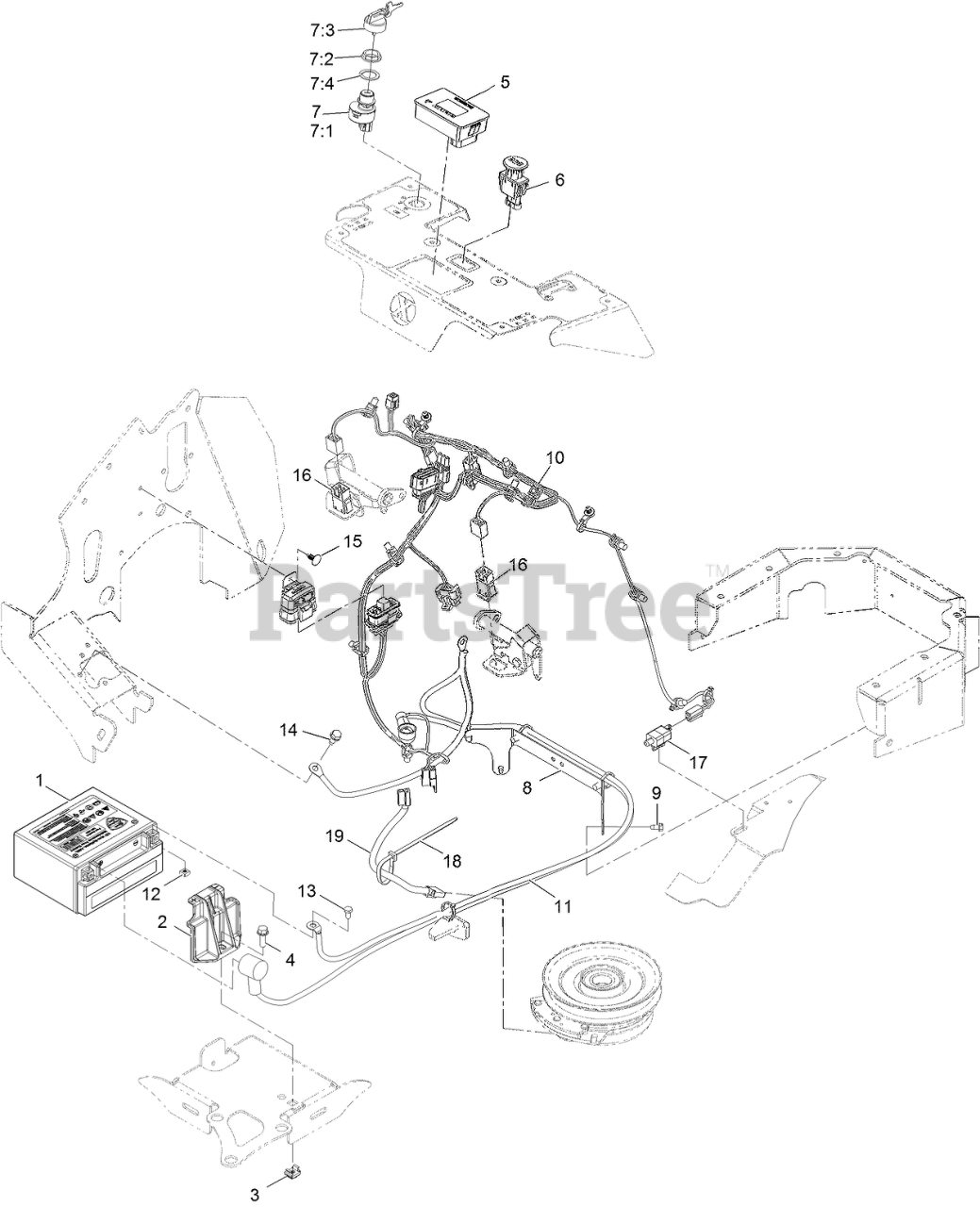

STS651GKA48400 - Exmark 48" Staris S-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (Rev C) (2019) Electrical Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Kaw

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-4421

Battery, Agm
(Superseded to 142-7345)

$244.90

$

Usually ships in 4-12 days

0

2

Exmark 135-4422

Hold Down, Battery

$7.49

$

Usually ships in 3-6 days

0

3

Exmark 135-4473

Nut, Snap

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

5

Exmark 135-2471

Meter-Hour

$

$

Not available

6

Exmark 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

7

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

7:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

7:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

7:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

7:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

8

Exmark 135-1924-03

Support, Battery Cable

$19.99

$

Usually ships in 3-6 days

0

9

Exmark 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

10

Exmark 135-2021

Harness-Wiring
(Superseded to 142-2948)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$375.99

$

Usually ships in 3-6 days

0

11

Exmark 135-2126

Harness-Battery

$113.99

$

In Stock, only 4 left!

0

12

Exmark HDW13708

Square Nut 1/4-20,ATV CB

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

16

Exmark 104-3338

SWITCH-DELTA

$54.99

$

Usually ships in 3-6 days

0

17

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

18

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

19

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$15.99

$

In Stock, only 2 left!

0
