STS650AKC48400 - Exmark 48" Staris S-Series Stand-On Mower, Koh (SN: 408644346 - 411294211) (Rev A) (2021) Deck Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Koh

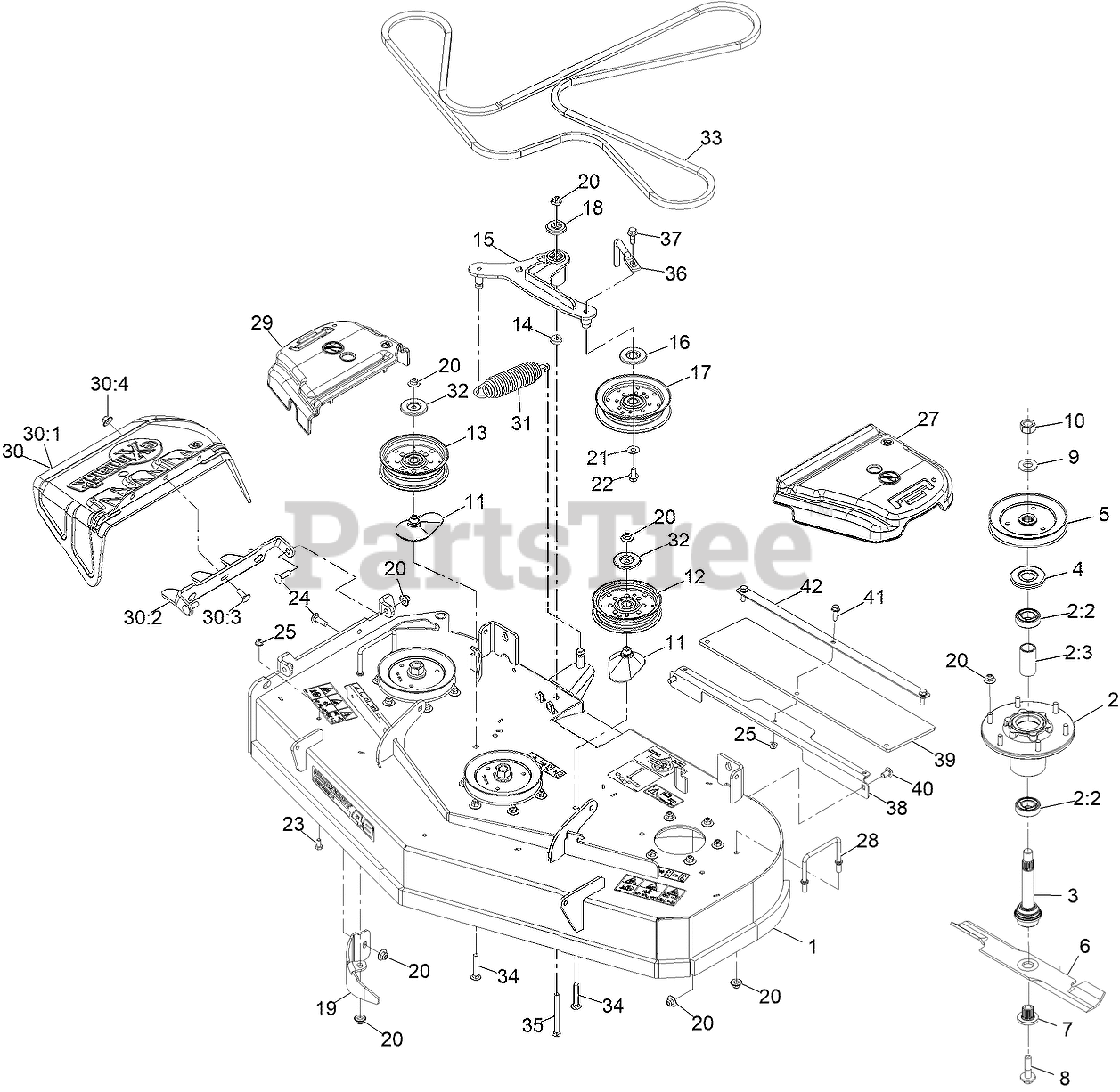

Deck Assembly Parts Diagram

  • Title

1

Exmark 135-1996

ASM, DECK W/ DECALS, 48

$2037.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 10

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 9

0

4

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 9

0

5

Exmark 116-0674

SHEAVE,BLADE DRIVE 5.90

$76.99

$

In Stock, only 1 left!

0

6

Exmark 103-6386

USE 103-6386-S
(Superseded to 103-6386-S)

Note: Optional Equipment

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6381

USE 103-6381-S
(Superseded to 103-6381-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

0

6

Exmark 103-6401

USE 103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 9

0

6

Exmark 116-5177

USE 116-5177-S
(Superseded to 116-5177-S)

Note: Optional Equipment

$31.99

$

In Stock, Qty 20+

0

6

Exmark 103-6391

USE 103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$31.99

$

In Stock, Qty 20+

0

7

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

8

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

9

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

10

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0

11

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

12

Exmark 126-9187

PULLEY-IDLER, FLAT

$60.99

$

In Stock, Qty 19

0

13

Exmark 126-9197

IDLER-PULLEY, FLAT 5.00X1

$62.99

$

Usually ships in 3-6 days

0

14

Exmark 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0

15

Exmark 135-1937

ASM, DECK IDLER

$34.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

0

17

Exmark 126-9196

IDLER-PULLEY, FLAT

$60.99

$

In Stock, Qty 8

0

18

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

19

Exmark 116-5995-01

BAFFLE-DOGLEG,LZS LZX VT48

$62.99

$

Usually ships in 3-6 days

0

20

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Exmark 110-1718

SCREW-HHF

$1.99

$

In Stock, Qty 10

0

23

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

24

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

25

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

28

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

29

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

30

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

30:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

30:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

30:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

30:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

32

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

33

Exmark 135-1998

USE 135-1998-SL
(Superseded to 135-1998-SL)

$152.99

$

In Stock, only 2 left!

0

34

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

35

Exmark 3231-37

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

36

Exmark 135-5023

GUIDE, BELT

$14.99

$

Usually ships in 3-6 days

0

37

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 11

0

38

Exmark 135-6287-03

BRKT, HEAT DEFLECTOR

$36.99

$

Usually ships in 3-6 days

0

39

Exmark 135-6358

SHIELD, HEAT

$118.99

$

Usually ships in 3-6 days

0

40

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

41

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

42

Exmark 135-7122-03

BRKT-HEAT DEFLECTOR, TOP

$16.99

$

Usually ships in 3-6 days
