STS650AKC48400 - Exmark 48" Staris S-Series Stand-On Mower, Koh (SN: 406294345 - 408644345) (Rev A) (2020) Platform Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Koh

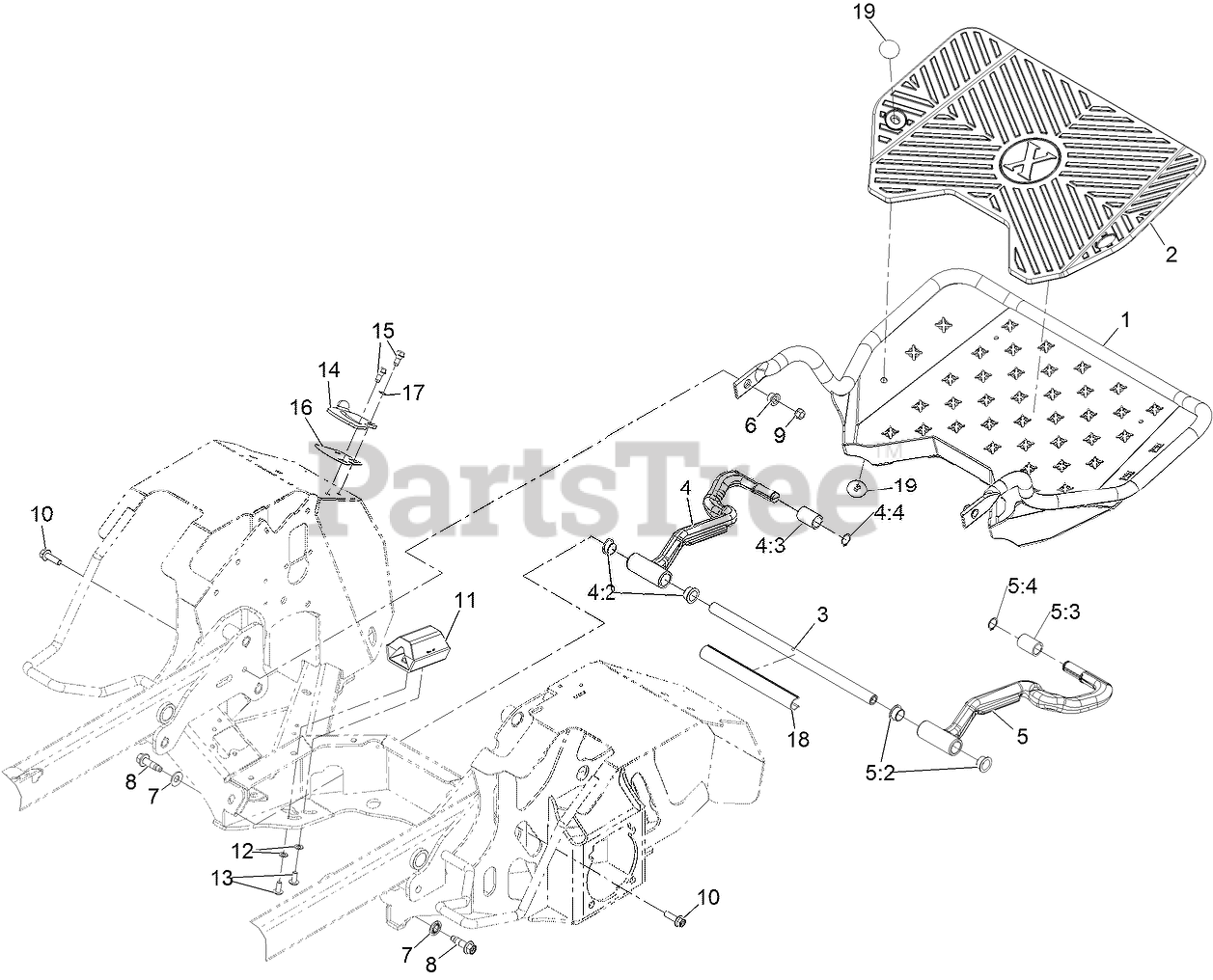

Platform Assembly Parts Diagram

  • Title

1

Exmark 142-2748-05

Weld, Platform

$396.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3129

Mat, Platform

$64.99

$

Usually ships in 3-6 days

0

3

Exmark 135-1336

SHAFT, CROSS

$49.99

$

Usually ships in 3-6 days

0

4

Exmark 135-2237

ASM, Rt Arm W/ Bushings

$129.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

4:3

Exmark 135-6438

Bushing, Sleeve

$9.49

$

In Stock, only 2 left!

0

4:4

Exmark 32120-72

RING-SNAP

$2.49

$

In Stock, Qty 20+

0

5

Exmark 135-2236

ASM, Lt Arm W/ Bushings

$129.99

$

Usually ships in 3-6 days

0

5:2

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

5:3

Exmark 135-6438

Bushing, Sleeve

$9.49

$

In Stock, only 2 left!

0

5:4

Exmark 32120-72

RING-SNAP

$2.49

$

In Stock, Qty 20+

0

6

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, Qty 20+

0

7

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Exmark 135-7001

Screw-HHF

$6.99

$

Usually ships in 3-6 days

0

9

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Exmark 135-4712

SCREW, HHF

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 135-3993

Bumper

$50.99

$

Usually ships in 3-6 days

0

12

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

13

Exmark 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

14

Exmark 142-2492-03

Latch, Platform

$17.99

$

Usually ships in 3-6 days

0

15

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

16

Exmark 135-5206

Decal-Latch Lock

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 142-2432

Washer, Wave

$3.49

$

Usually ships in 3-6 days

0

18

Exmark 135-7563

Keeper

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 142-3247

Rivet-Ratchet

$3.49

$

Usually ships in 3-6 days

0
