STS60-23BV - Scag Turf Storm Spreader/Sprayer, 23hp Vanguard (SN: V9800001 - V9899999) STEERING CONTROLS Parts Diagram

Turf Storm Spreader/Sprayer, 23hp Vanguard

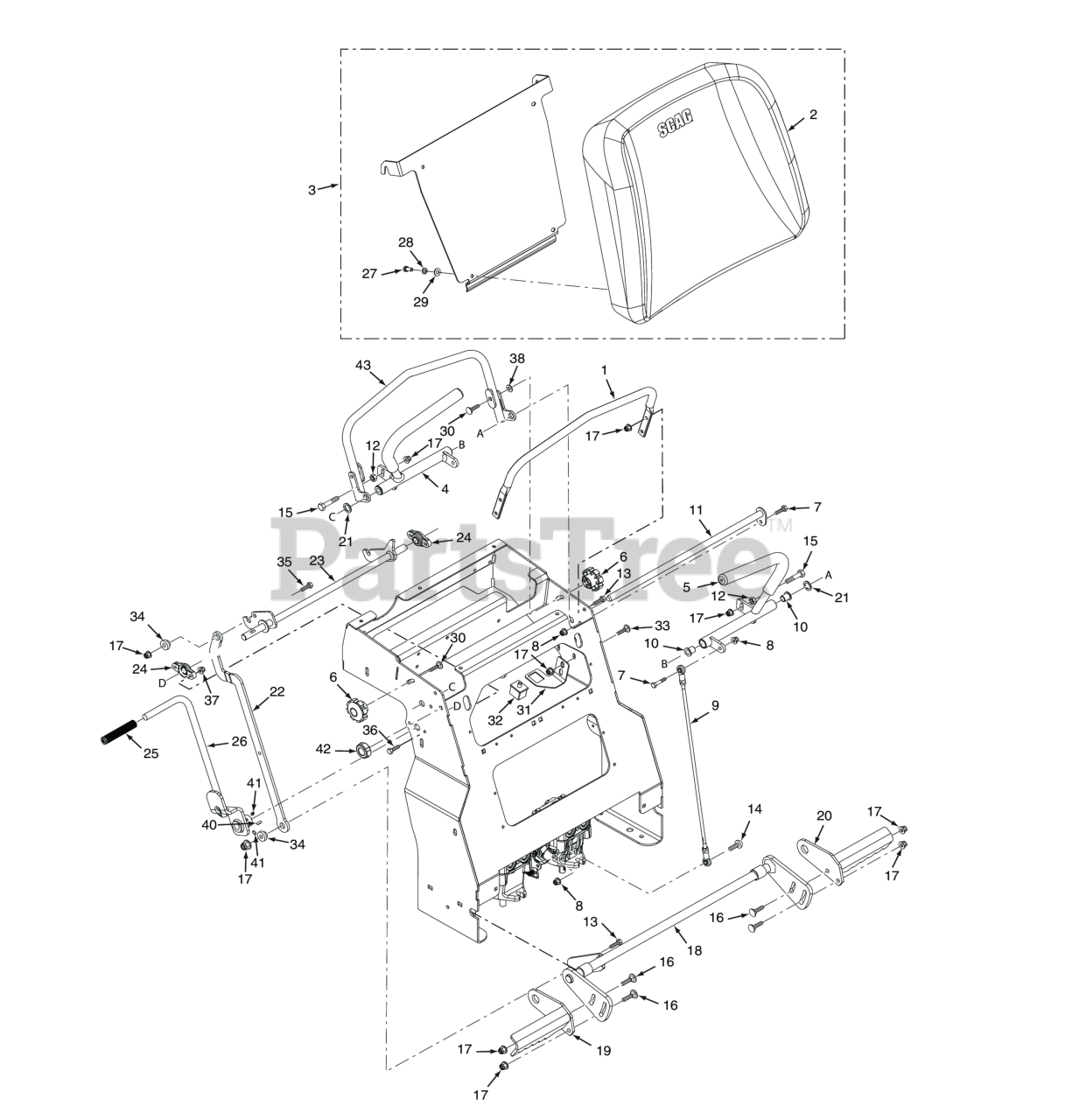

STEERING CONTROLS Parts Diagram

  • Title

1

Scag 427189

Reference Bar

$54.99

$

Usually ships in 2-12 days

0

2

Scag 486476

Operator Pad

$296.99

$

Usually ships in 2-12 days

0

3

Scag 463155

Operator Pad Assy., w/Decal

$583.99

$

Usually ships in 2-12 days

0

4

Scag 463015

Handlebar Assembly, LH

$146.99

$

Usually ships in 2-12 days

0

5

Scag 463016

Handlebar Assembly, RH

$146.99

$

Usually ships in 2-12 days

0

6

Scag 481885-07

Knob, 5/16 - 18

$70.99

$

Usually ships in 2-12 days

0

7

Scag 04201-17

Bolt, Hex 5/16" - .375 x 1.00- Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

8

Scag 04317-02

Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel

$2.49

$

Usually ships in 2-12 days

0

9

Scag 485842

Linkage Assy., Steering

$69.99

$

Usually ships in 2-12 days

0

10

Scag 483453-14

Bearing, .625 ID Plastic

$4.49

$

In Stock, only 2 left!

0

11

Scag 452957

Shaft Weldment, Control Arm

$134.99

$

Usually ships in 2-12 days

0

12

Scag 04220-04

Nut, 3/8 - 16 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

13

Scag 04201-30

Bolt, Hex Head 3/8 - 16 x 1.50 - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

14

Scag 04108-02

Hex Head Socket, 5/16-18 x 1" (36)

$2.49

$

Usually ships in 2-12 days

0

15

Scag 04201-31

Bolt, Hex 3/8 - 16 x 1.75 - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

16

Scag 04203-29

Bolt, Carriage 3/8 - 16 x 1.25 - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

17

Scag 04317-03

Nut, Flange Elastic Stop 3/8 - 16 - Stainless Steel

$2.99

$

Usually ships in 2-12 days

0

18

Scag 453047

Bellcrank Weldment, Brake

$168.99

$

Usually ships in 2-12 days

0

19

Scag 452841

BRAKE PADDLE WLMT, LH

$36.99

$

Usually ships in 2-12 days

0

20

Scag 452842

Brake Paddle Weldment, RH

$52.99

$

Usually ships in 2-12 days

0

21

Scag 04241-07

Washer, Flat 5/8 - .687 x 1.00 x .078 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

22

Scag 428529

Link, Brake Engage

$26.99

$

Usually ships in 2-12 days

0

23

Scag 452967

Lock Weldment, Neutral

$371.99

$

Usually ships in 2-12 days

0

24

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

25

Scag 48342

GRIP, PARKING BRAKE

$2.49

$

Usually ships in 2-12 days

0

26

Scag 463021

Brake Lever Assembly

$97.99

$

Usually ships in 2-12 days

0

27

Scag 04201-16

Bolt, Hex 5/16 - 18 x .75 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

28

Scag 04230-03

Washer, Lock 5/16 Spring - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

29

Scag 04240-02

Washer, Flat 5/16 - .349 x .750 x .050 - Stainless Steel

$

$

Currently unavailable

30

Scag 04203-17

Bolt, Carriage 5/16 - 18 x 1" - - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

31

Scag 427908

Mounting Bracket, Brake Switch

$57.99

$

Usually ships in 2-12 days

0

32

Scag 483473

Switch, Double Pole - Plunger

$17.99

$

In Stock, Qty 12

0

33

Scag 04203-28

Bolt, Carriage 3/8-16 x 1.0 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

34

Scag 48100-30

BUSHING, BRONZE - .376 ID X .627 OD

$1.99

$

Usually ships in 2-12 days

0

35

Scag 04208-01

Cap Screw, 3/8 - 16 x 1.25 Hex Socket - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

36

Scag 04201-07

Bolt, Hex 1/4 - 20 x 1.25 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

37

Scag 04317-01

Locknut, 1/4 - 20 Flg. Elastic Stop - Stainless Steel

$1.99

$

Usually ships in 2-12 days

0

38

Scag 04241-06

Washer, Flat 5/16 - .349 x .750 x .050 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

39

Scag 04224-02

Nut, Push On - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

40

Scag 04063-12

KEY, WOODRUFF #61, 3/16 X 5/8

$0.99

$

In Stock, Qty 12

0

41

Scag 04212-01

Set Screw, 1/4 - 20 x .25 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

42

Scag 481885-06

Knob, 5/16-18

$14.99

$

In Stock, Qty 8

0

43

Scag 452960

Weldment, Reference Bar

$170.99

$

Usually ships in 2-12 days

0
