STS60-23BV - Scag Turf Storm Spreader/Sprayer, 23hp Vanguard (SN: V9800001 - V9899999) SPRAYER PUMP Parts Diagram

Turf Storm Spreader/Sprayer, 23hp Vanguard

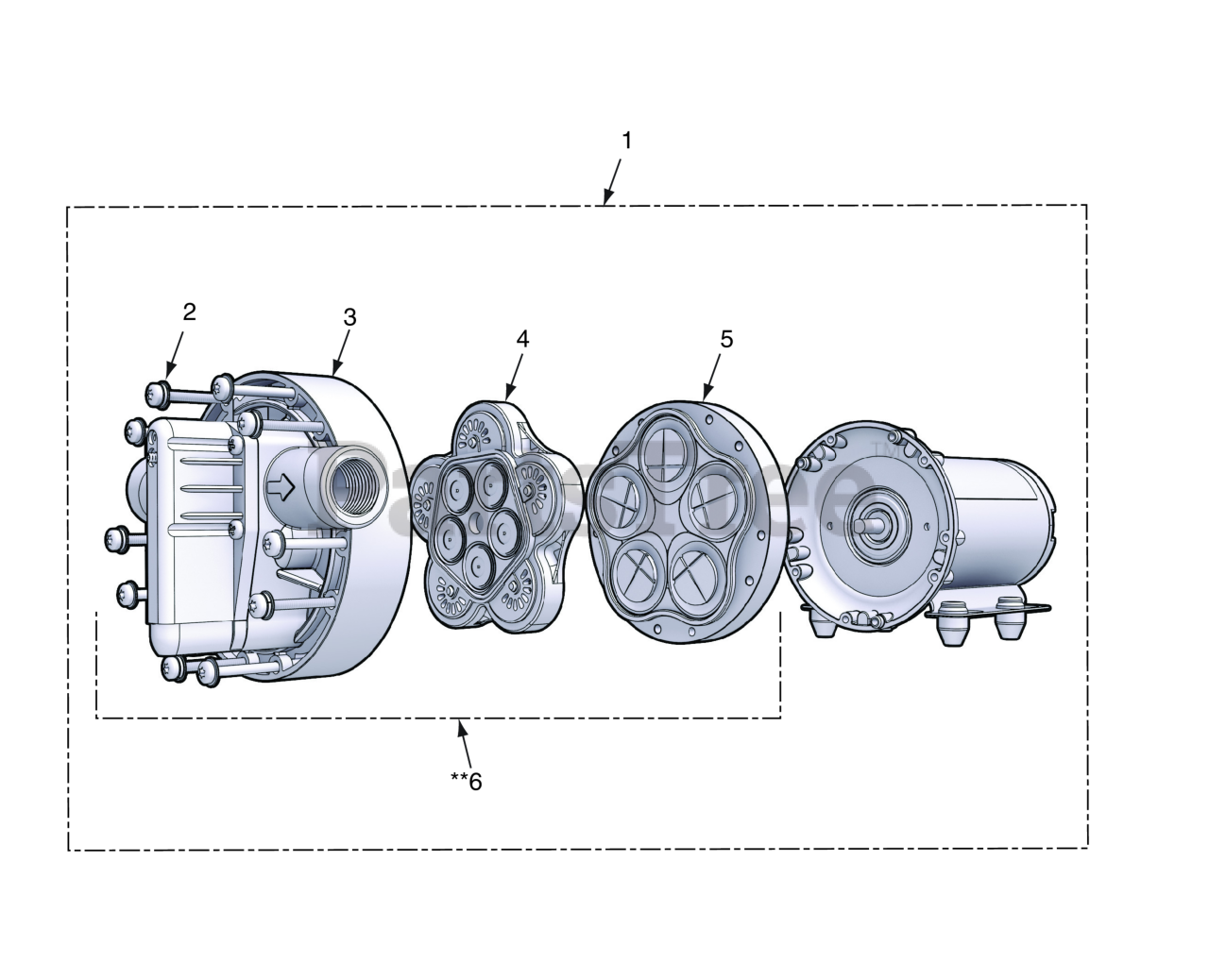

SPRAYER PUMP Parts Diagram

  • Title

1

Scag 486090

Pump, 12V Electric

$415.99

$

Usually ships in 2-12 days

0

2

Scag 486901

Screw Kit, Remco (all pumps)

$20.99

$

Usually ships in 2-12 days

0

3

Scag 486897

Bypass, Upper Housing (5.3 GPM)

$147.99

$

Usually ships in 2-12 days

0

4

Scag 486898

Valve Housing (5.3 GPM)

$155.99

$

Usually ships in 2-12 days

0

5

Scag 486899

Lower Housing (5.3 GPM)

$223.99

$

Usually ships in 2-12 days

0

6

Scag 486902

Pump Head Assembly (7 GPM -Optional Accessory)

Note: Only available as an assembly for the optional 7GPM pump

$464.99

$

Usually ships in 2-12 days

0

Scag 486900

Outlet Check Valve (5 GPM & 7 GPM)

Note: Not Shown

$15.99

$

Usually ships in 2-12 days

0
