STS60-23BV - Scag Turf Storm Spreader/Sprayer, 23hp Vanguard (SN: V9800001 - V9899999) FUEL SYSTEM Parts Diagram

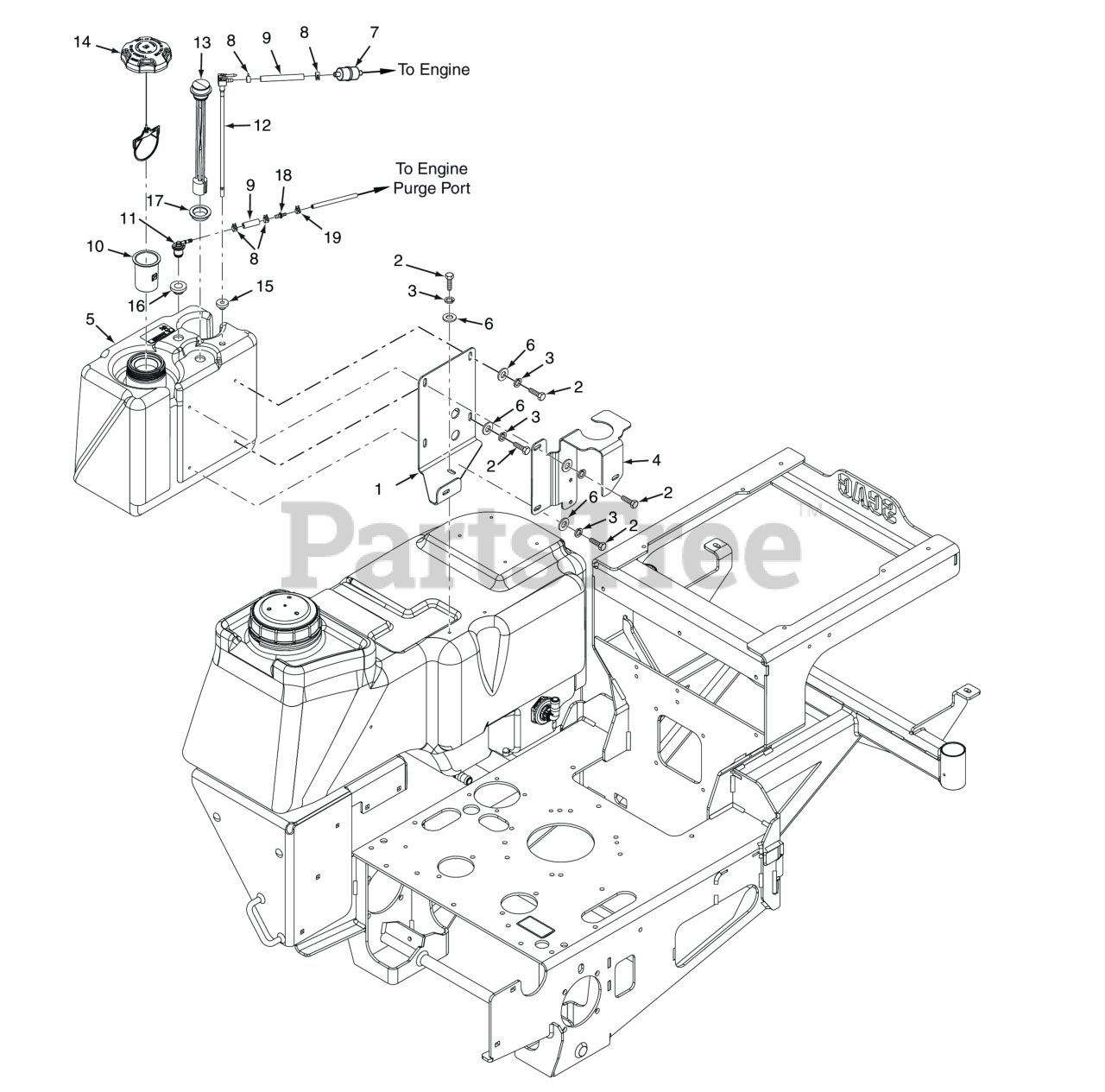

Turf Storm Spreader/Sprayer, 23hp Vanguard

FUEL SYSTEM Parts Diagram

  • Title

1

Scag 428290

Mounting Bracket, Fuel Tank

$186.99

$

Usually ships in 2-12 days

0

2

Scag 04201-16

Bolt, Hex 5/16 - 18 x .75 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

3

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

4

Scag 428473

Mounting Bracket, Oil Reservoir

$

$

Not available

5

Scag 463282

Fuel Tank Assembly (incl. #2, 3, 5, 6, 17, 18)

$466.99

$

Usually ships in 2-12 days

0

6

Scag 04241-02

Washer, Flat 5/16 -.375 x .875 x .0547/.104 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

7

Fuel Filter

Note: Order through Engine Manufacturer

$

$

Not available

8

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 7

0

9

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

10

Scag 484279-03

TUBE, FUEL INLET - 3.00

$20.99

$

Usually ships in 2-12 days

0

11

Scag 484333

Remote Vent, No Valve

$14.99

$

In Stock, only 1 left!

0

12

Scag 486181

Valve, Fuel Shutoff w/Screen

$68.99

$

Usually ships in 2-12 days

0

13

Scag 484243

Fuel Gauge Assembly

$80.99

$

Usually ships in 2-12 days

0

14

Scag 484286

Fuel Cap w/ Tether (E.P.A.)

$53.99

$

In Stock, only 1 left!

0

15

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

16

Scag 484285

Grommet, Viton,

$

$

Not available

17

Scag 484242

Grommet, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

18

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, Qty 5

0

19

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0
