STS60-21BV - Scag Turf Storm Spreader/Sprayer, 21hp Vanguard (SN: T2500001 - T2599999) SHEET METAL COMPONENTS Parts Diagram

Turf Storm Spreader/Sprayer, 21hp Vanguard

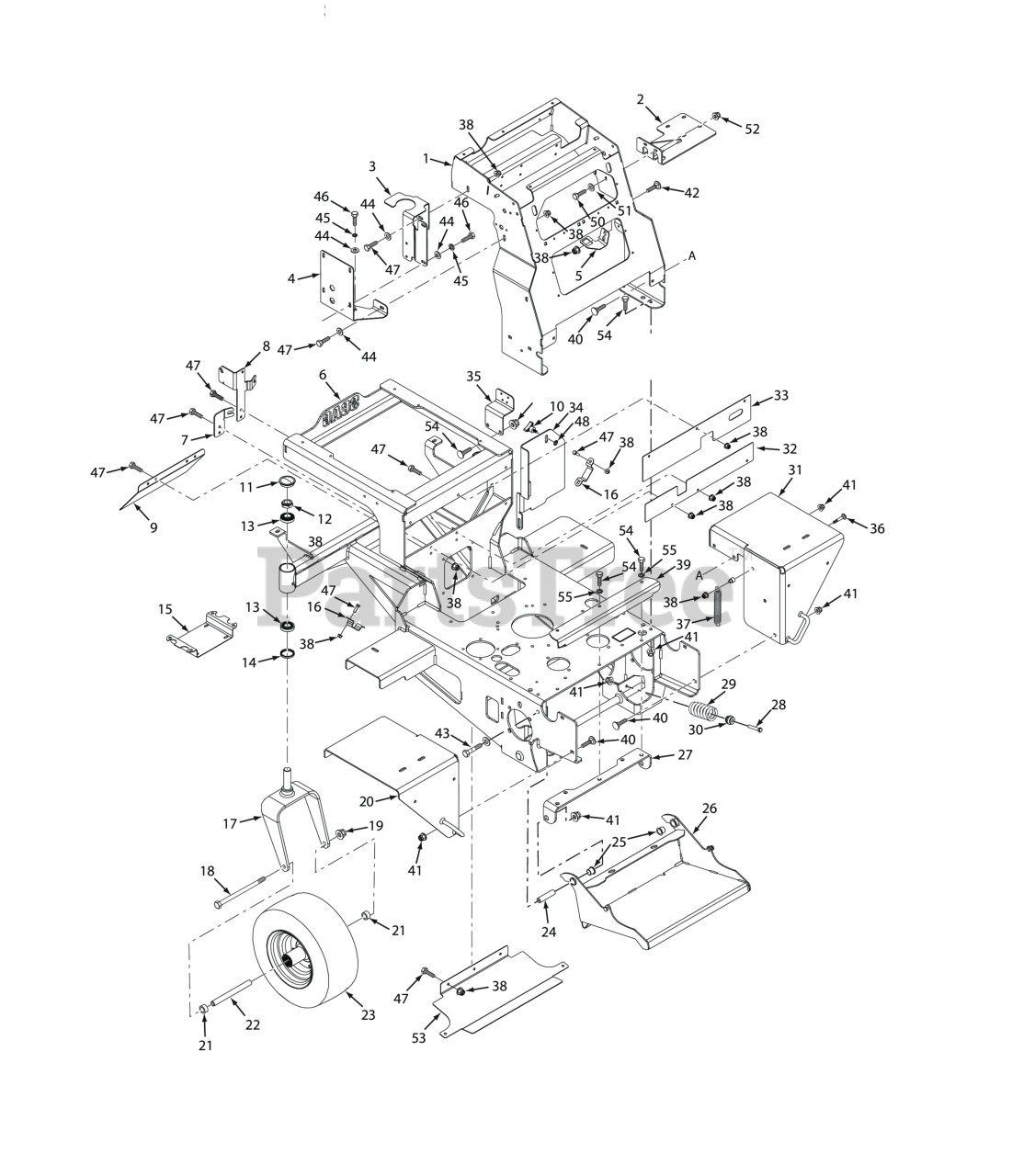

SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 453243

Handlebar Weldment

$3005.99

$

Usually ships in 2-12 days

0

2

Scag 453115

Mounting Bracket, Hose Reel

$194.99

$

Usually ships in 2-12 days

0

3

Scag 428473

Mounting Bracket, Oil Reservoir

$

$

Not available

4

Scag 428290

Mounting Bracket, Fuel Tank

$186.99

$

Usually ships in 2-12 days

0

5

Scag 427908

Mounting Bracket, Brake Switch

$55.99

$

Usually ships in 2-12 days

0

6

Scag 453233

Mainframe Weldment, STS

$12203.99

$

Usually ships in 2-12 days

0

7

Scag 428119

Mounting Bracket, Door Cable

$36.99

$

Usually ships in 2-12 days

0

8

Scag 428107

Mounting Bracket, Cable

$65.99

$

Usually ships in 2-12 days

0

9

Scag 428586

Cover, Vent

$88.99

$

Usually ships in 2-12 days

0

10

Scag 486824

Knob, w/ Stud, 5/16 - 18

$8.49

$

Usually ships in 2-12 days

0

11

Scag 486340

Cap, Grease

$13.99

$

In Stock, only 2 left!

0

12

Scag 04021-20

Nut, Hex Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

13

Scag 481657-01

Bearing Cone

$3.49

$

Usually ships in 2-12 days

0

14

Scag 451025

Upright Post Weldment, RH

$

$

Not available

15

Scag 428211

Mounting Bracket, Foamer Accessory (optional)

$69.99

$

Usually ships in 2-12 days

0

16

Scag 428089

Bracket, Hose

$19.99

$

Usually ships in 2-12 days

0

17

Scag 453241

Caster Yoke Weldment

$171.99

$

Usually ships in 2-12 days

0

18

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS)

$5.99

$

In Stock, Qty 20+

0

19

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, Qty 8

0

20

Scag 453237

Fender, LH

$937.99

$

Usually ships in 2-12 days

0

21

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

22

Scag 43583

Sleeve, Caster Wheel (61V, 72A/VS)

$13.99

$

In Stock, Qty 20+

0

23

Scag 486109

Caster Wheel Assembly, 16 x 6.50 - 8

$226.99

$

Usually ships in 2-12 days

0

Scag 486416

Tire, 16 x 6.5-8 4 Ply

$91.99

$

Usually ships in 2-12 days

0

Scag 486715

Rim Assy. w/Valve

$

$

Currently unavailable

24

Scag 431132

Spacer

$

$

Currently unavailable

25

Scag 483453-04

Bearing, .750 I.D. Plastic

$3.99

$

In Stock, Qty 18

0

26

Scag 463354

Footplate Assembly (Incl. #25)

Note: (Incl. #25)

$

$

Not available

27

Scag 453036

Footplate Weldment

$54.99

$

Usually ships in 2-12 days

0

28

Scag 04201-33

Bolt, Hex Head 3/8-16 x 2-1/4" - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

29

Scag 484479

Spring, Suspension Platform

$41.99

$

Usually ships in 2-12 days

0

30

Scag 43867

Mount, Spring

$17.99

$

Usually ships in 2-12 days

0

31

Scag 453238

Fender, RH

$937.99

$

Usually ships in 2-12 days

0

32

Scag 428198

Guard, Rear Hopper Lower

$

$

Not available

33

Scag 428032

Guard, Rear Hopper Uppler

$

$

Not available

34

Scag 427761

Battery Door

$193.99

$

Usually ships in 2-12 days

0

35

Scag 428619

Mounting Bracket, Strainer

$46.99

$

Usually ships in 2-12 days

0

36

Scag 04203-20

Bolt, Carriage 5/16-18 x 1.75 - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

37

Scag 48755

Spring,Counter Balance

$10.99

$

In Stock, only 2 left!

0

38

Scag 04317-02

Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel

$2.49

$

Usually ships in 2-12 days

0

39

Scag 428588

Mounting Bracket, Operator Presence

$180.99

$

Usually ships in 2-12 days

0

40

Scag 04203-28

Bolt, Carriage 3/8-16 x 1.0 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

41

Scag 04317-03

Nut, Flange Elastic Stop 3/8 - 16 - Stainless Steel

$2.99

$

Usually ships in 2-12 days

0

42

Scag 04203-17

Bolt, Carriage 5/16 - 18 x 1" - - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

43

Scag 04201-58

Bolt, Hex 3/8 - 16 x 4.00 - Stainless Steel

$2.99

$

Usually ships in 2-12 days

0

44

Scag 04241-02

Washer, Flat 5/16 -.375 x .875 x .0547/.104 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04230-03

Washer, Lock 5/16 Spring - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

46

Scag 04201-16

Bolt, Hex 5/16 - 18 x .75 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

47

Scag 04201-17

Bolt, Hex 5/16" - .375 x 1.00- Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

48

Scag 04224-02

Nut, Push On - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

49

Scag 428617

Spring Bracke, Footplate

$

$

Currently unavailable

50

Scag 04201-06

Bolt, Hex 1/4 - 20 x 1.00

$0.99

$

Usually ships in 2-12 days

0

51

Scag 04317-01

Locknut, 1/4 - 20 Flg. Elastic Stop - Stainless Steel

$1.99

$

Usually ships in 2-12 days

0

52

Scag 04241-03

Washer, Flat 1/4-.281X.625X.080 - Stainless Steel

$12.99

$

Usually ships in 2-12 days

0

53

Scag 428548

Muffler Heat Shield

$176.99

$

Usually ships in 2-12 days

0

54

Scag 04201-30

Bolt, Hex Head 3/8 - 16 x 1.50 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

55

Scag 04230-04

Lockwasher, 3/8-.377 x .680 x 094

$0.99

$

Usually ships in 2-12 days

0
