STS60-21BV - Scag Turf Storm Spreader/Sprayer, 21hp Vanguard (SN: T2500001 - T2599999) ELECTRICAL SYSTEM Parts Diagram

Turf Storm Spreader/Sprayer, 21hp Vanguard

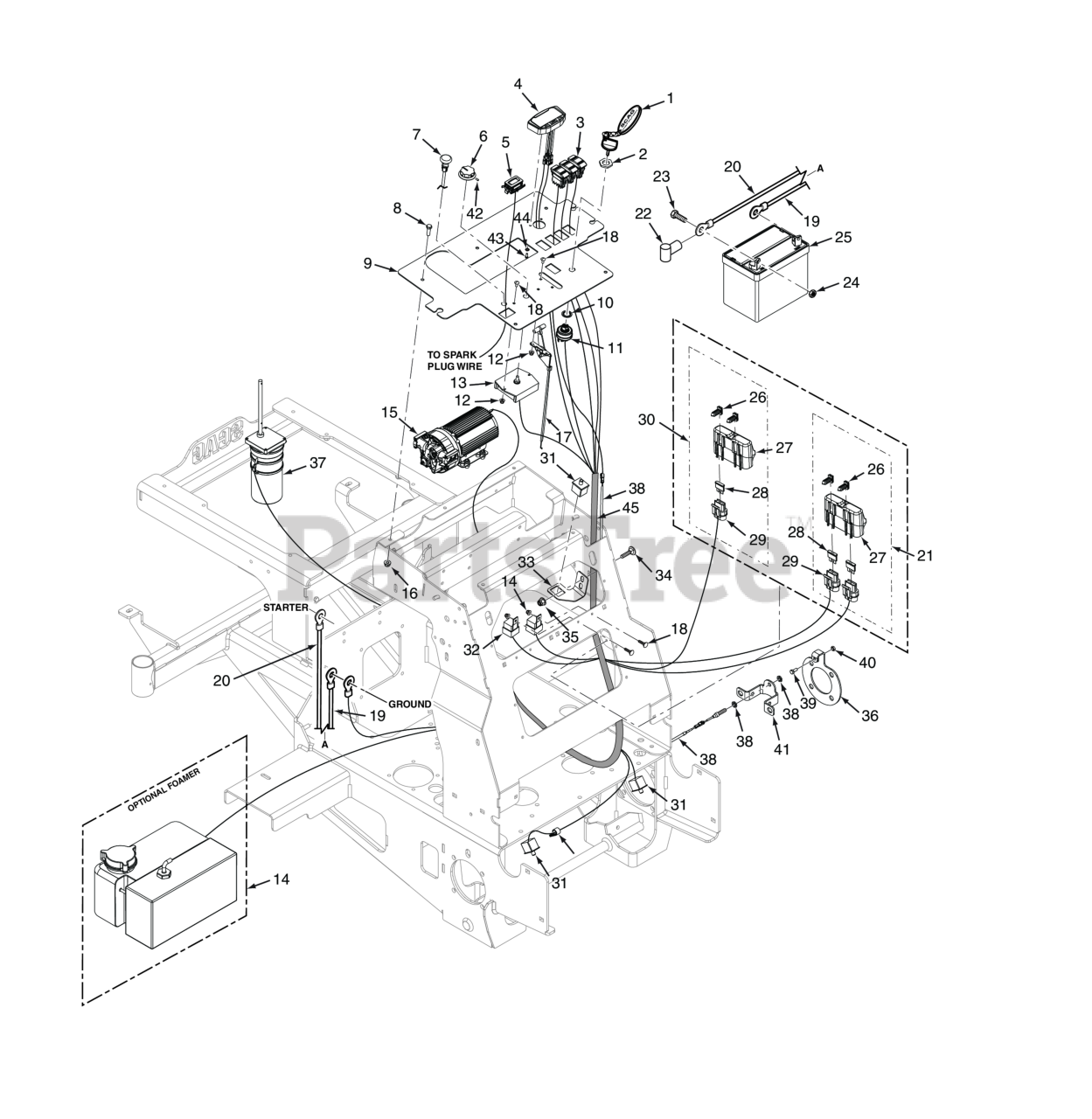

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

2

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

3

Scag 487039

Switch, Rocker - Lighted

$31.99

$

In Stock, only 1 left!

0

4

Scag 486621

Display, Trail Tech

$360.99

$

Usually ships in 2-12 days

0

5

Scag 484565

Hour Meter, Inductive

$51.99

$

In Stock, only 1 left!

0

6

Scag 486833

Knob (Incl #38)

$31.99

$

Usually ships in 2-12 days

0

7

Scag 483976

Choke Control (excludes EFI models)

$22.99

$

In Stock, only 2 left!

0

8

Scag 04201-17

Bolt, Hex 5/16" - .375 x 1.00- Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

9

Scag 463337

Instrument Panel w/ Decal

$

$

Not available

10

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

11

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

Note: (Incl. #2, #10)

$27.99

$

In Stock, Qty 20+

0

12

Scag 04221-01

Locknut, #10 - 32 Elastic Stop - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

13

Scag 486455

Motor Controller

$577.99

$

Usually ships in 2-12 days

0

14

Scag 9612

Foamer Accessory (optional)

$

$

Currently unavailable

15

Scag 486090

Pump, 12V Electric

$415.99

$

Usually ships in 2-12 days

0

16

Scag 04317-02

Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel

$2.49

$

Usually ships in 2-12 days

0

17

Scag 483975

Throttle Control, SVR

$24.99

$

In Stock, only 3 left!

0

18

Scag 04203-01

Bolt, Carriage #10 - 32 x .50 - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

19

Scag 48029-14

Battery Cable, 31-1/2" Black (25KA, 26DFI, 31DFI) - Kawasaki

$16.99

$

Usually ships in 2-12 days

0

20

Scag 48029-32

Battery Cable, Red

$21.99

$

Usually ships in 2-12 days

0

21

Scag 483642

Double Fuse Assy.

Note: (incl.#26, #27, #28, #29)

$43.99

$

Usually ships in 2-12 days

0

22

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

23

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

24

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 10

0

25

Scag 483665

Battery, 350 CCA (not available through Scag)

$

$

Not available

26

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

27

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

28

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

29

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

30

Scag 483642

Double Fuse Assy.

Note: (incl.#26, #27, #28, #29)

$43.99

$

Usually ships in 2-12 days

0

31

Scag 483473

Switch, Double Pole - Plunger

$16.99

$

In Stock, Qty 12

0

32

Scag 483013

Relay, 12V 40 AMP Standard

$20.99

$

In Stock, Qty 20+

0

33

Scag 427908

Mounting Bracket, Brake Switch

$55.99

$

Usually ships in 2-12 days

0

34

Scag 04203-17

Bolt, Carriage 5/16 - 18 x 1" - - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

35

Scag 04317-02

Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel

$2.49

$

Usually ships in 2-12 days

0

36

Scag 428105

Plate, Hub Magnet Holder

$67.99

$

Usually ships in 2-12 days

0

37

Scag 486440

Gear Motor, Electric

$552.99

$

Usually ships in 2-12 days

0

38

Scag 486614

Wire Harness, Display

$74.99

$

Usually ships in 2-12 days

0

39

Scag 486611

Bolt, Magnetic

$10.99

$

Usually ships in 2-12 days

0

40

Scag 04225-01

Nut, M6 x 1.00

$0.99

$

Usually ships in 2-12 days

0

41

Scag 427828

Plate, Speed Sensor

$50.99

$

Usually ships in 2-12 days

0

42

Scag 04012-16

Set Screw, #8 - 32 x .375

$26.99

$

Usually ships in 2-12 days

0

43

Scag 04202-01

Bolt, Hex Head M4-.7 x 10

$0.99

$

Usually ships in 2-12 days

0

44

Scag 04233-01

Lockwasher, M4-1.1 x 7.6 x .8

$0.99

$

Usually ships in 2-12 days

0

45

Scag 487069

Wire Harness, STS

$

$

Not available
