STS60-21BV - Scag Turf Storm Spreader/Sprayer, 21hp Vanguard (SN: R9500001 - R9599999) SPRAYER SYSTEM Parts Diagram

Turf Storm Spreader/Sprayer, 21hp Vanguard

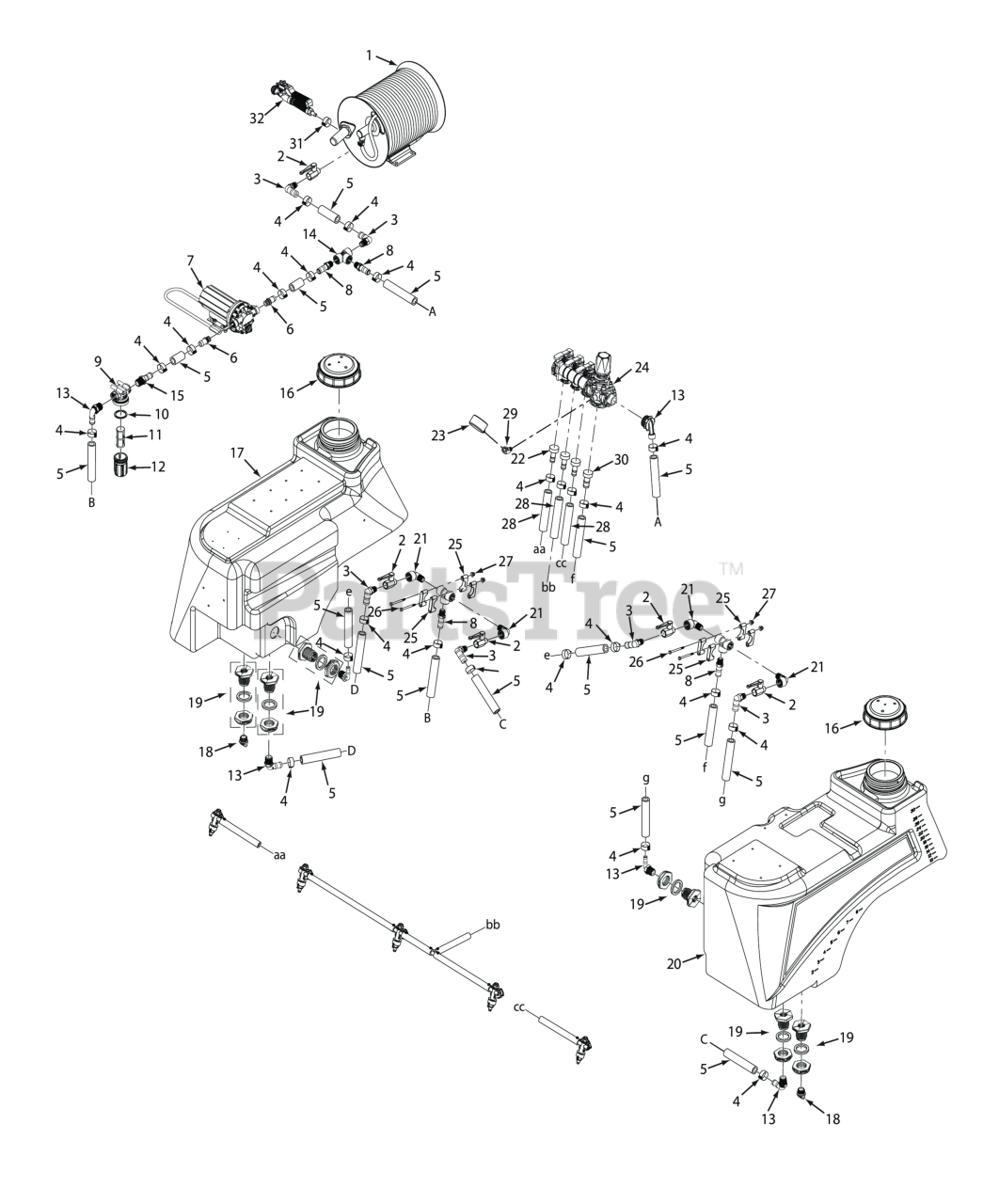

SPRAYER SYSTEM Parts Diagram

  • Title

1

Scag 486606

Hose Reel Assy

$560.99

$

Usually ships in 2-12 days

0

2

Scag 486549

Valve, Ball 1/2" NPT

$25.99

$

Usually ships in 2-12 days

0

3

Scag 486084-03

Fitting, 90 Deg.1/2 - 14 NPT X 3/4" Hose

$5.99

$

Usually ships in 2-12 days

0

4

Scag 48136-04

CLAMP, WORM DRIVE

$8.49

$

Usually ships in 2-12 days

0

5

Scag 486191

Hose, 3/4" EPDM ( Order by the inch)

$0.99

$

In Stock, Qty 20+

0

6

Scag 486552

Fitting, 3/4" O-ring

$5.99

$

Usually ships in 2-12 days

0

7

Scag 486090

Pump, 12V Electric

$415.99

$

Usually ships in 2-12 days

0

8

Scag 486083-07

Hose Barb, 1/2" NPT X 3/4" Hose

$1.99

$

Usually ships in 2-12 days

0

9

Scag 486185

Strainer Head

$53.99

$

Usually ships in 2-12 days

0

10

Scag 486187

Gasket

$14.99

$

Usually ships in 2-12 days

0

11

Scag 486186

Screen

$63.99

$

Usually ships in 2-12 days

0

12

Scag 486188

Bowl

$32.99

$

Usually ships in 2-12 days

0

13

Scag 486084-05

Fitting, 90 Deg. 3/4 - 14 NPT x 3/4" Hose

$3.99

$

Usually ships in 2-12 days

0

14

Scag 486081-03

Tee Fitting, 1/2 NPT

$14.99

$

Usually ships in 2-12 days

0

15

Scag 486083-09

Hose Barb, 3/4 NPT x 3/4" Hose

$2.49

$

Usually ships in 2-12 days

0

16

Scag 486112

Cap, Sprayer

$

$

Not available

17

Scag 463276

Tank Assy, RH

$

$

Not available

18

Scag 486453

Drain Plug, 3/4"

$7.49

$

Usually ships in 2-12 days

0

19

Scag 486088-02

Fitting, 3/4" NPT

$29.99

$

Usually ships in 2-12 days

0

20

Scag 463275

Tank Assy, LH

$

$

Not available

21

Scag 486556-01

Fitting, Street Elbow 90 Deg. 1/2"

$13.99

$

Usually ships in 2-12 days

0

22

Scag 486155

Fitting, Valve

$9.99

$

Usually ships in 2-12 days

0

23

Scag 486412

Pressure Gauge

$67.99

$

Usually ships in 2-12 days

0

24

Scag 463267

Valve Assy (Incl.

$655.99

$

Usually ships in 2-12 days

0

25

Scag 486395

Mounting Bracket, Valve Assy

$6.99

$

Usually ships in 2-12 days

0

26

Scag 04201-13

Bolt, 1/4 - 20 x 2.75 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

27

Scag 04317-01

Locknut, 1/4 - 20 Flg. Elastic Stop - Stainless Steel

$1.99

$

Usually ships in 2-12 days

0

28

Scag 486190

Hose, 1/2" EPDM (order by the inch)

$6.49

$

Usually ships in 2-12 days

0

29

Scag 486411

Fitting, 45 Degree 1/4 NPT

$10.99

$

Usually ships in 2-12 days

0

30

Scag 486905

Fitting, Valve

$23.99

$

Usually ships in 2-12 days

0

31

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, Qty 20+

0

32

Scag 486860

Sprayer Gun

$103.99

$

In Stock, only 1 left!

0
