STS60-21BV - Scag Turf Storm Spreader/Sprayer, 21hp Vanguard (SN: R9500001 - R9599999) SPRAYER BOOM ASSEMBLY Parts Diagram

Turf Storm Spreader/Sprayer, 21hp Vanguard

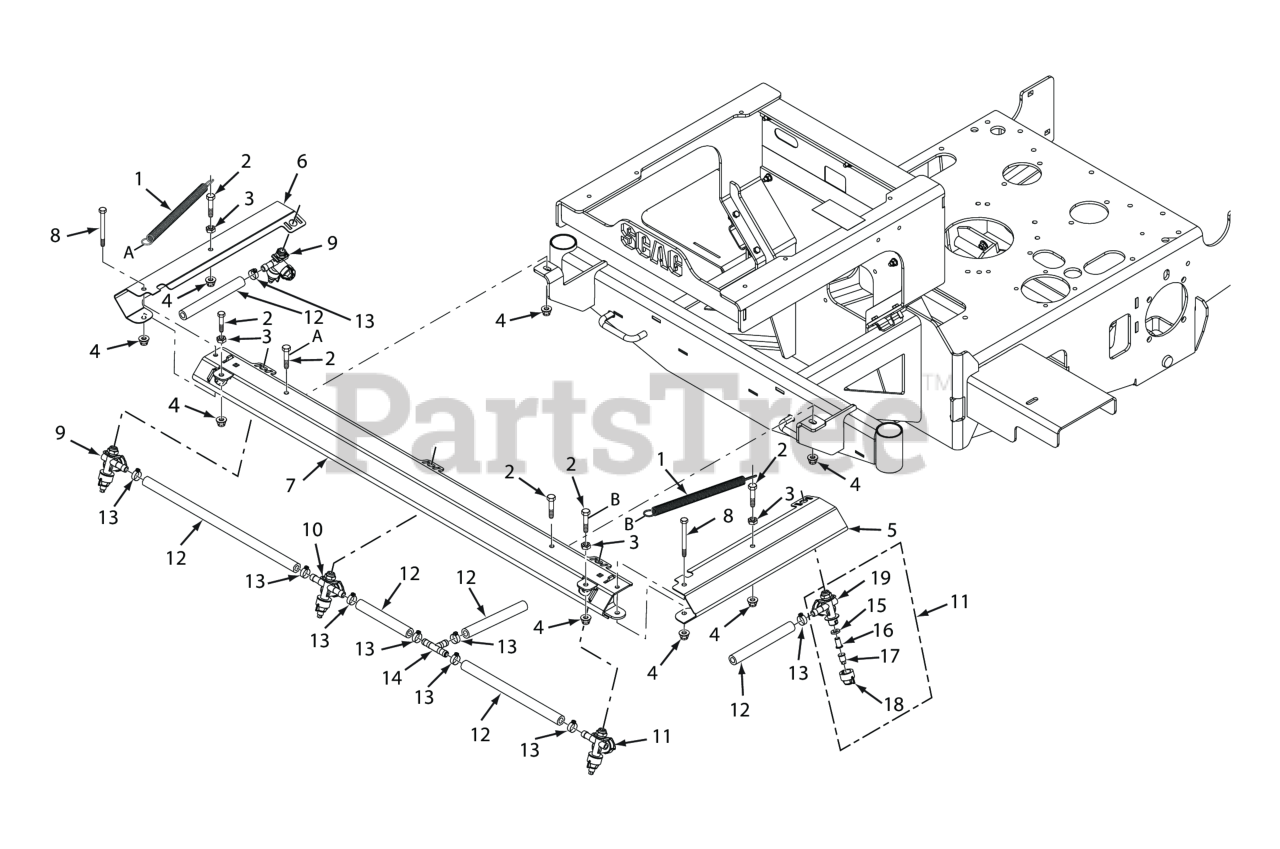

SPRAYER BOOM ASSEMBLY Parts Diagram

  • Title
1

Scag 486150

Spring, Boom Arm

$37.99

$

In Stock, Qty 5

0

2

Scag 04201-30

Bolt, Hex Head 3/8 - 16 x 1.50 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

3

Scag 04220-04

Nut, 3/8 - 16 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

4

Scag 04317-03

Nut, Flange Elastic Stop 3/8 - 16 - Stainless Steel

$2.99

$

In Stock, only 2 left!

0

5

Scag 428373

Boom, LH

$123.99

$

Usually ships in 2-12 days

0

6

Scag 428374

Boom, RH

$123.99

$

Usually ships in 2-12 days

0

7

Scag 453239

Boom, Main

$506.99

$

Usually ships in 2-12 days

0

8

Scag 04201-57

Bolt, Hex Head 3/8- 16 x 3.50 - Stainless Steel

$2.49

$

In Stock, only 2 left!

0

9

Scag 463152

Nozzle Assembly, RH

Note: (incl. #15, #16, #17, #18, #19)

$49.99

$

Usually ships in 2-12 days

0

10

Scag 486699

Nozzle Assembly, Main

Note: (incl. #15, #16, #17, #18, #19)

$49.99

$

Usually ships in 2-12 days

0

11

Scag 463151

Nozzle Assembly, LH

Note: (incl. #15, #16, #17, #18, #19)

$49.99

$

Usually ships in 2-12 days

0

12

Scag 486190

Hose, 1/2" EPDM (order by the inch)

$6.49

$

In Stock, Qty 20+

0

13

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

14

Scag 486082-03

Fitting, Tee 1/2" Hose Barb

$5.99

$

Usually ships in 2-12 days

0

15

Scag 486099

Washer, Rubber

$1.49

$

Usually ships in 2-12 days

0

16

Scag 486557

Nozzle, Strainer #50 Mesh

$3.49

$

Usually ships in 2-12 days

0

17

Scag 486100-01

Nozzle Tip

$20.99

$

Usually ships in 2-12 days

0

18

Scag 486098

Nozzle Cap

$2.49

$

Usually ships in 2-12 days

0

19

Scag 486096

Nozzle Body, Single LH (used in #11)

$26.99

$

Usually ships in 2-12 days

0

Scag 486097

Nozzle Body, Single RH (used in #9)

$26.99

$

Usually ships in 2-12 days

0

Scag 486700

Nozzle Body, Double Main (used in #10)

$18.99

$

Usually ships in 2-12 days

0
