STS60-21BV - Scag Turf Storm Spreader/Sprayer, 21hp Vanguard (SN: R9500001 - R9599999) 220# HOPPER ASSEMBLY Parts Diagram

Turf Storm Spreader/Sprayer, 21hp Vanguard

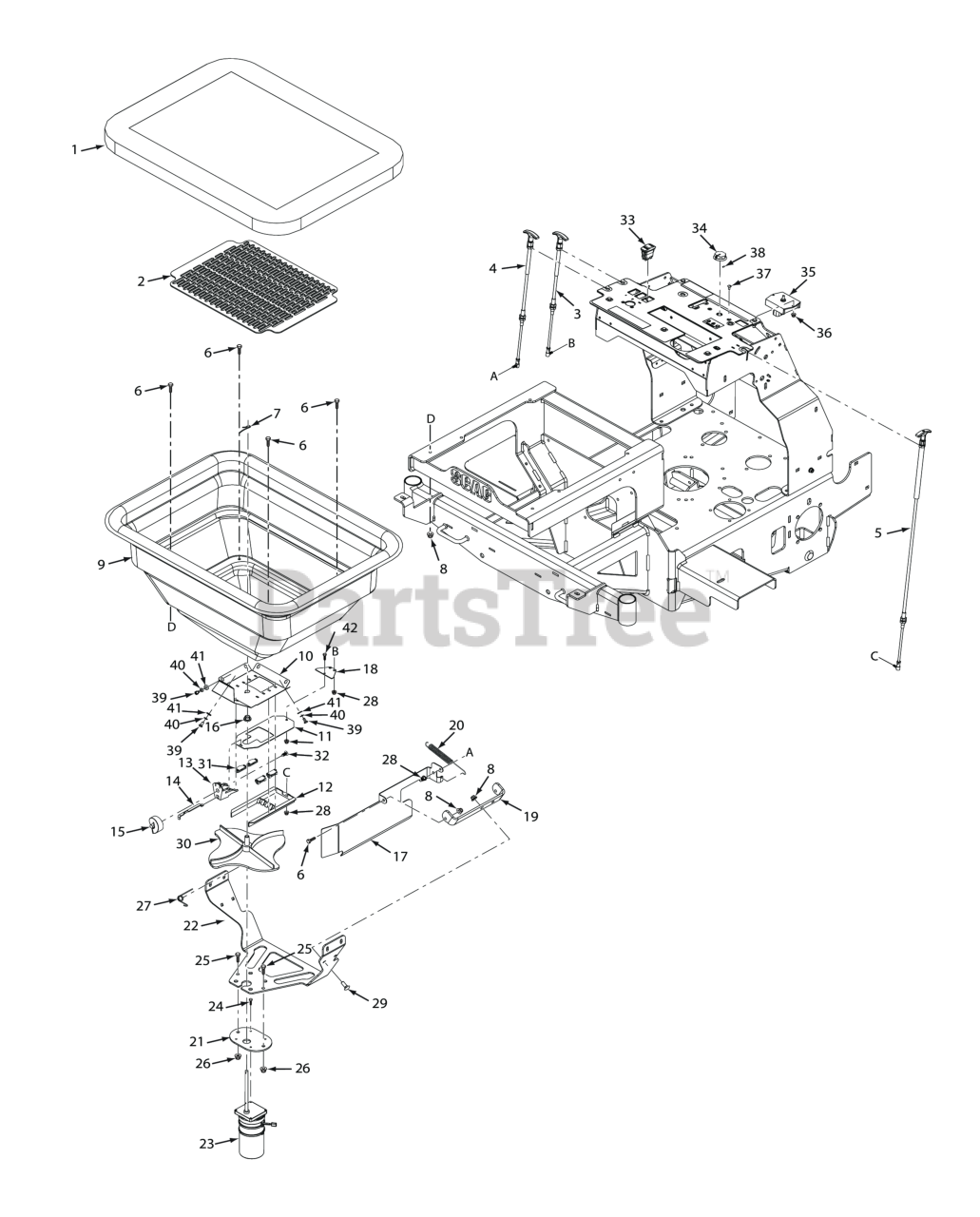

220# HOPPER ASSEMBLY Parts Diagram

  • Title

1

Scag 486381

Cover, 220lb Hopper

$104.99

$

Usually ships in 2-12 days

0

2

Scag 427766

Grate, Spreader

$351.99

$

Usually ships in 2-12 days

0

3

Scag 486390

Cable, Hopper Gate

$244.99

$

Usually ships in 2-12 days

0

4

Scag 486439

Cable, Side Deflector

$242.99

$

Usually ships in 2-12 days

0

5

Scag 486544

Cable, Pattern Adjust

$284.99

$

Usually ships in 2-12 days

0

6

Scag 04201-17

Bolt, Hex 5/16" - .375 x 1.00- Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

7

Scag 486375

Agitator

$16.99

$

In Stock, only 1 left!

0

8

Scag 04317-02

Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel

$2.49

$

Usually ships in 2-12 days

0

9

Scag 463144

Hopper Assembly

$838.99

$

Usually ships in 2-12 days

0

10

Scag 486367

Mounting Plate, Speader System

$143.99

$

Usually ships in 2-12 days

0

11

Scag 486368

Gate, Rear

$47.99

$

Usually ships in 2-12 days

0

12

Scag 486369

Diffuser

$20.99

$

Usually ships in 2-12 days

0

13

Scag 486370

Mount, Dial

$11.99

$

In Stock, only 1 left!

0

14

Scag 486372

Linkage, Rate Gate

$39.99

$

Usually ships in 2-12 days

0

15

Scag 486373

Milled Dial

$13.99

$

Usually ships in 2-12 days

0

16

Scag 486374

Bearing, Hopper Bottom

$2.99

$

Usually ships in 2-12 days

0

17

Scag 427706

Guard Door, LH Hopper

$94.99

$

Usually ships in 2-12 days

0

18

Scag 428120

Door Arm

$13.99

$

Usually ships in 2-12 days

0

19

Scag 428368

Mounting Bracket, Deflector Door

$76.99

$

Usually ships in 2-12 days

0

20

Scag 486541

Spring, Door Assist

$9.99

$

Usually ships in 2-12 days

0

21

Scag 428367

Mounting Plate, Electric Motor

$56.99

$

Usually ships in 2-12 days

0

22

Scag 428040

Motor Mount Bracket

$482.99

$

Usually ships in 2-12 days

0

23

Scag 486440

Gear Motor, Electric

$552.99

$

Usually ships in 2-12 days

0

24

Scag 04201-01

Bolt, Hex #10-32 x .50 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

25

Scag 04201-28

Bolt, Hex 3/8 - 16 x 1.00 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

26

Scag 04317-03

Nut, Flange Elastic Stop 3/8 - 16 - Stainless Steel

$2.99

$

Usually ships in 2-12 days

0

27

Scag 486825

Spring, SS Clip

$4.49

$

Usually ships in 2-12 days

0

28

Scag 04221-09

Nut, 1/4-28 Elastis Stop - Stainless Steel

$

$

Currently unavailable

29

Scag 04203-17

Bolt, Carriage 5/16 - 18 x 1" - - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

30

Scag 486351

Impeller

$67.99

$

Usually ships in 2-12 days

0

31

Scag 486371

Guide, Rate Gate

$7.99

$

Usually ships in 2-12 days

0

32

Scag 486372

Linkage, Rate Gate

$39.99

$

Usually ships in 2-12 days

0

33

Scag 486389

Switch, Rocker

$18.99

$

In Stock, only 1 left!

0

34

Scag 486833

Knob (Incl #38)

$31.99

$

Usually ships in 2-12 days

0

35

Scag 486455

Motor Controller

$577.99

$

Usually ships in 2-12 days

0

36

Scag 04221-01

Locknut, #10 - 32 Elastic Stop - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

37

Scag 04203-01

Bolt, Carriage #10 - 32 x .50 - Stainless Steel

$1.49

$

Usually ships in 2-12 days

0

38

Scag 04012-16

Set Screw, #8 - 32 x .375

$26.99

$

Usually ships in 2-12 days

0

39

Scag 04201-04

Bolt, Hex Head 1/4 - 20 x .50 - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

40

Scag 04230-02

Washer, Lock 1/4 Spring - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0

41

Scag 04241-03

Washer, Flat 1/4-.281X.625X.080 - Stainless Steel

$12.99

$

Usually ships in 2-12 days

0

42

Scag 04201-02

Bolt, Hex Head #10 - 32 x 3/4" - Stainless Steel

$0.99

$

Usually ships in 2-12 days

0
