STR-22CH - Scag Turf Runner Riding Mower, 22hp Kohler (SN: 70000 - 79999) Traction Drive Parts Diagram

Turf Runner Riding Mower, 22hp Kohler

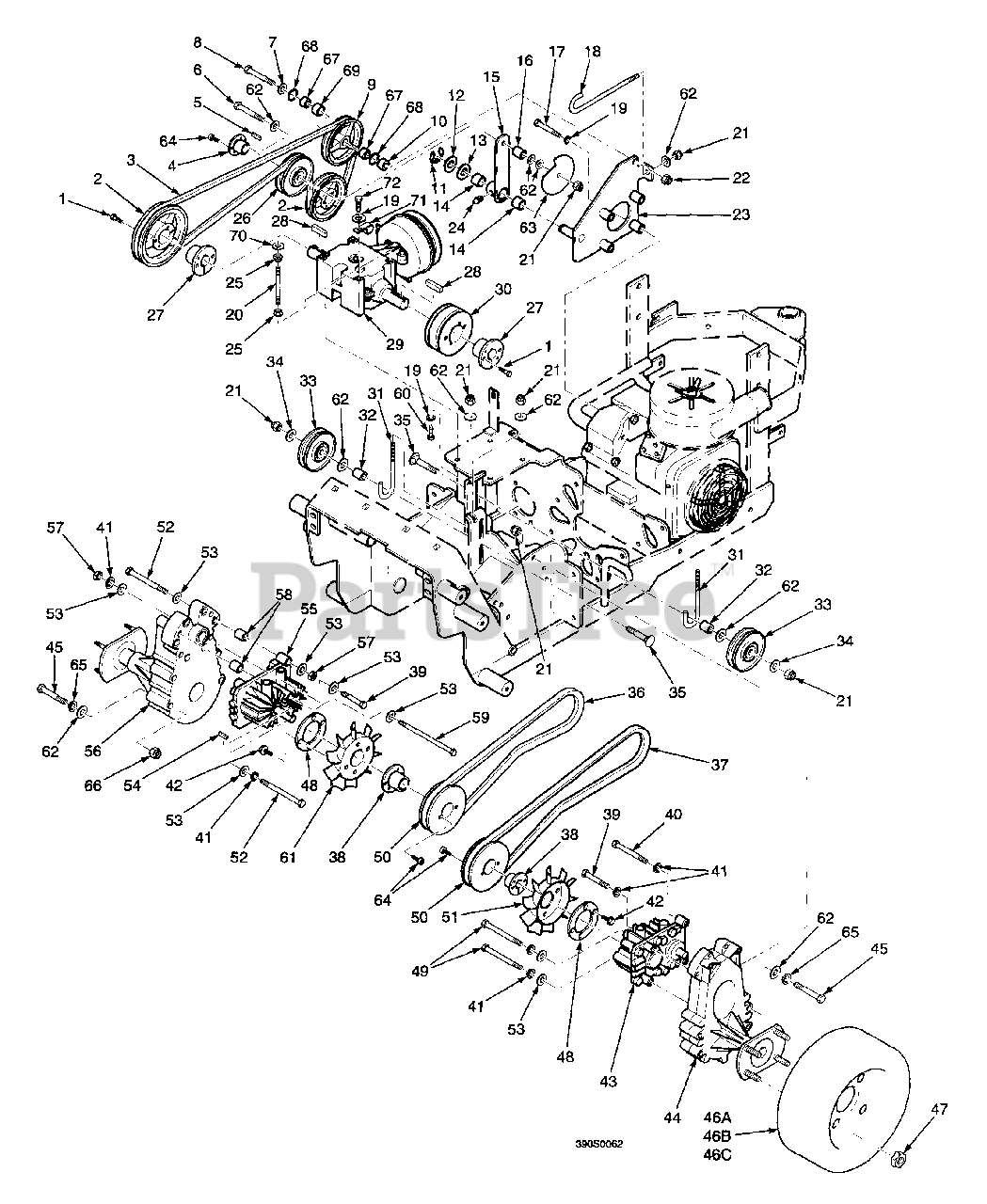

Traction Drive Parts Diagram

  • Title

1

Scag 04001-109

Bolt, Hex Head, 1/4-20 x 1-3/8"

$2.49

$

In Stock, only 2 left!

0

2

Scag 481434

Pulley, 5.55 OD

$95.99

$

Usually ships in 2-12 days

0

3

Scag 481497

Belt, Main Drive

$53.99

$

Usually ships in 2-12 days

0

4

Scag 48926

Hub, Tapered

$30.99

$

In Stock, Qty 20+

0

5

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

6

Scag 04001-62

Bolt, Hex Head, 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

7

Scag 04040-07

Flatwasher, 1/2 (.531 x .062 x 095)

$0.99

$

In Stock, Qty 5

0

8

Scag 04001-90

Bolt, Hex Head, 1/2-13 x 3-1/4"

$2.99

$

Usually ships in 2-12 days

0

9

Scag 48062

Pulley, Idler - 5.75 Dia

$85.99

$

Usually ships in 2-12 days

0

10

Scag 43391

Spacer

$8.99

$

Usually ships in 2-12 days

0

11

Scag 04050-02

Retaining Ring, .75 "E"

$0.99

$

In Stock, Qty 7

0

12

Scag 04041-08

Flatwasher, 3/8 (7.66 x 1.25 x .06)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04041-08S

Flatwasher, 3/8 (7.66 x 1.25 x .035)

$0.99

$

In Stock, Qty 20+

0

14

Scag 48100-05

Bushing, Oilite, .753 ID

$0.99

$

In Stock, only 3 left!

0

15

Scag 46081

Arm, Idler

$46.99

$

Usually ships in 2-12 days

0

16

Scag 43277

Spacer, J-Pull Rod

$6.49

$

In Stock, only 1 left!

0

17

Scag 04001-22

Bolt, Hex Head, 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

18

Scag 44114

Rod, J-Pull

$5.99

$

Usually ships in 2-12 days

0

19

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

20

Scag 04004-31

Stud, 3/8-16 x 4.00"

$2.49

$

Usually ships in 2-12 days

0

21

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 04021-07

Hex Locknut, Elastic Stop, 1/2-13

$0.99

$

In Stock, Qty 20+

0

23

Scag 45741

Pivot, Engine Idler

$

$

Not available

24

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

25

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 48198

Pulley, Idler
(Superseded to 483211)

$42.99

$

In Stock, only 1 left!

0

27

Scag 48141

Hub, Tapered, 1.00 Bore

$29.99

$

In Stock, only 1 left!

0

28

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

29

Scag 481227

Gearbox, T-Drive

$

$

Not available

30

Scag 481229

Pulley, 4.25 OD Double Groove

$132.99

$

Usually ships in 2-12 days

0

31

Scag 44075

Rod, J-Pull

$

$

Not available

32

Scag 43077

Spacer, J-Pull

$4.99

$

In Stock, only 1 left!

0

33

Scag 481048

Pulley
(Superseded to 483208)

$33.99

$

In Stock, Qty 20+

0

34

Scag 04041-12

Flatwasher, 3/8 (.375 x 1.50 x .06)

$0.99

$

In Stock, Qty 9

0

35

Scag 04003-21

Carriage Bolt, 3/8-16 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

36

Scag 481499

Belt, R.H. Transmission Drive

$22.99

$

Usually ships in 2-12 days

0

37

Scag 481498

Belt, L.H. Transmission Drive

$30.99

$

Usually ships in 2-12 days

0

38

Scag 48791

Hub, Tapered, 15 mm

$

$

Not available

39

Scag 04001-12

Bolt, Hex Head, 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-53

Bolt, Hex Head, 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

41

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

42

Scag 04017-04

Serr. Fl. Hex Head CPSCR, 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

43

Scag 481225

Pump, L.H.

$933.99

$

Usually ships in 2-12 days

0

44

Scag 481223

Axle, L.H.

$

$

Not available

45

Scag 04001-132

Bolt, Hex Head, 3/8-24 x 4.0 GR 8

$1.99

$

Usually ships in 2-12 days

0

46A

Scag 48827

Wheel Assembly, Drive
(Superseded to 481503)

$357.99

$

Usually ships in 2-12 days

0

46B

Scag 48827-02

Tire Only
(Superseded to 481619)

$302.99

$

Usually ships in 2-12 days

0

46C

Scag 48321-04

Rim Only
(Superseded to 481725)

$

$

Not available

47

Scag 04028-01

Nut, Wheel

$1.49

$

In Stock, Qty 14

0

48

Scag 421209

Back-up Washer, Fan

$

$

Not available

49

Scag 04001-126

Bolt, Hex Head, 5/16-18 x 5-1/2"

$2.49

$

In Stock, only 4 left!

0

50

Scag 481231

Pulley, 4.25 OD

$68.99

$

Usually ships in 2-12 days

0

51

Scag 48789

Fan, Cooling LH
(Superseded to 482133)

$28.99

$

Usually ships in 2-12 days

0

52

Scag 04001-96

Bolt, Hex Head, 5/16-18 x 4-1/2"

$2.49

$

Usually ships in 2-12 days

0

53

Scag 04040-04

Flatwasher, 5/16 (.344 x .688 x .065)

$0.99

$

In Stock, Qty 20+

0

54

Scag 04063-14

Key, 5 mm x 5 mm x 25 mm

$0.99

$

In Stock, Qty 5

0

55

Scag 481226

Pump, R.H.

$933.99

$

Usually ships in 2-12 days

0

56

Scag 481224

Axle, R.H.

$

$

Not available

57

Scag 04020-03

Hex Nut, 5/16-18

$0.99

$

In Stock, only 1 left!

0

58

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

59

Scag 04001-94

Bolt, Hex Head, 5/16-18 x 7-1/2"

$3.49

$

In Stock, only 2 left!

0

60

Scag 04001-32

Bolt, Hex Head, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

61

Scag 481232

Fan, Cooling RH

$19.99

$

Usually ships in 2-12 days

0

62

Scag 04043-02

Flatwasher, 5/16 USS GR 8

$0.99

$

Usually ships in 2-12 days

0

63

Scag 421863

Washer, Heat Deflector

$

$

Not available

64

Scag 04015-14

Socket Head Capscrew, 1/4-20 x 1-3/8"

$2.99

$

Usually ships in 2-12 days

0

65

Scag 04030-09

Lockwasher, 3/8 Spring, Hardened

$

$

Currently unavailable

66

Scag 04021-18

Lock Nut 3/8-24 Elastic Stop GR 8

$1.49

$

In Stock, Qty 9

0

67

Scag 48102

Bearing Idler Pulley

$11.99

$

Usually ships in 2-12 days

0

68

Scag 04050-06

1.575" Truarc Ring

$2.49

$

Usually ships in 2-12 days

0

69

Scag 43045

Sleeve, Idler Pulley

$

$

Not available

70

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

71

Scag 48030-13

Clamp, .75 ID

$

$

Not available

72

Scag 04001-18

Hex Head Bolt, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0
