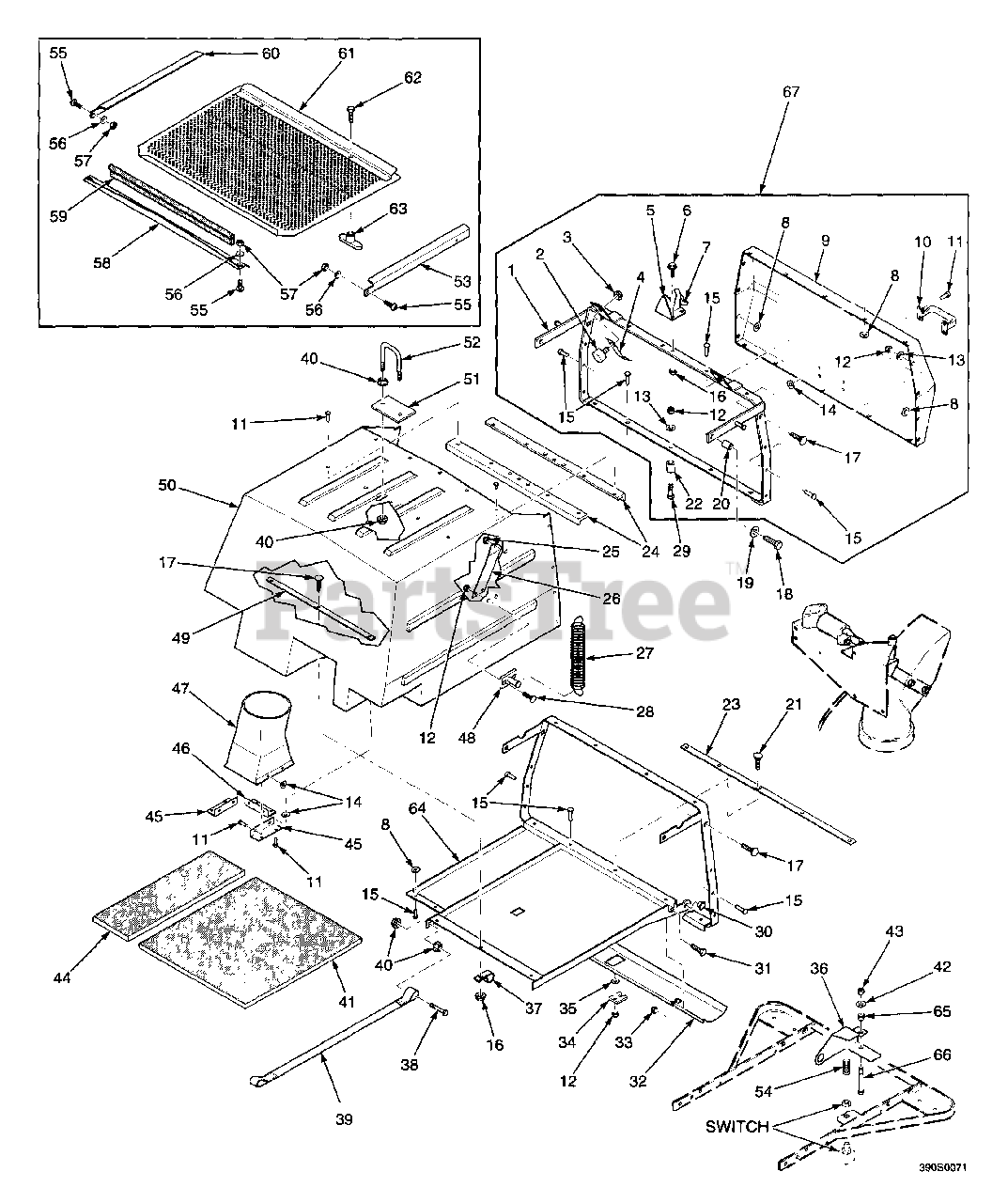

STR-22CH - Scag Turf Runner Riding Mower, 22hp Kohler (SN: 70000 - 79999) Hopper Parts Diagram

Turf Runner Riding Mower, 22hp Kohler

Hopper Parts Diagram

  • Title

1

Scag 45762

Frame, Hopper Door

$

$

Not available

2

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

3

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

4

Scag 422050

Retainer, Screen

$

$

Not available

5

Scag 422144

Guard, Latch
(Superseded to 422320)

$

$

Not available

6

Scag 04017-06

Serr. Fl. Hex Head CPSCR, 1/4-20 x 1.00"

$0.99

$

Usually ships in 2-12 days

0

7

Scag 481387

Latch, Hopper Door

$25.99

$

Usually ships in 2-12 days

0

8

Scag 04041-22

Flatwasher, 1/4 (.258 x .500 x .0598)

$0.99

$

Usually ships in 2-12 days

0

9

Scag 481252

Door, Hopper

$

$

Not available

10

Scag 481282

Handle

$

$

Not available

11

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

0

12

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0

13

Scag 04040-14

Flatwasher, 1/4 (.312 x .75 x .065)

$0.99

$

In Stock, only 4 left!

0

14

Scag 04041-19

Flatwasher, 3/16 (.196 x .469 x .048)

$0.99

$

In Stock, Qty 5

0

15

Scag 04091-01

Rivet, Lok Bolt, 1/4 x 85"

$1.99

$

Usually ships in 2-12 days

0

16

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

17

Scag 04003-06

Carriage Bolt, 1/4-20 x 1.00

$0.99

$

In Stock, Qty 6

0

18

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2

$0.99

$

In Stock, Qty 20+

0

19

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

20

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

21

Scag 04003-09

Carriage Bolt, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 9

0

22

Scag 421960

Boss, Centering

$3.99

$

Usually ships in 2-12 days

0

23

Scag 421964

Support, Door - Inside

$

$

Not available

24

Scag 422179

Support, Hopper - Top

$

$

Not available

25

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 421977

Support, Hinge (L.H Shown)

$

$

Not available

26

Scag 421978

Support, Hinge (R.H.Not Shown)

$34.99

$

Usually ships in 2-12 days

0

27

Scag 481343

Spring, Hopper Door

$28.99

$

Usually ships in 2-12 days

0

28

Scag 04003-02

Carriage Bolt, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1 25"

$0.99

$

In Stock, Qty 6

0

30

Scag 43260

Bushing

$9.99

$

Usually ships in 2-12 days

0

31

Scag 04001-08

Bolt, Hex Head, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

32

Scag 421973

Shield, Hopper

$

$

Not available

33

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 421961

Tab, Centering

$

$

Not available

35

Scag 43308

Spacer

$6.49

$

Usually ships in 2-12 days

0

36

Scag 422278

Lever, Hopper Switch

$

$

Not available

37

Scag 48030-09

Clamp, Cable - .50"

$1.49

$

In Stock, Qty 5

0

38

Scag 04001-46

Bolt, Hex Head, 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 481451

Strap, Hopper Stop

$24.99

$

Usually ships in 2-12 days

0

40

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

41

Scag 422241

Insulation, Hopper - Rear

$

$

Not available

42

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

43

Scag 04021-10

Locknut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

44

Scag 422058

Insulation, Hopper - R.H.

$

$

Not available

45

Scag 422228

Mount, Transition Chute - Side

$

$

Not available

46

Scag 422037

Mount, Transition Chute - Rear

$

$

Not available

47

Scag 481279

Chute, Transition

$90.99

$

Usually ships in 2-12 days

0

48

Scag 45779

Anchor, Spring

$

$

Not available

49

Scag 422052

Bar, Clamp

$

$

Not available

50

Scag 481424

Hopper

$703.99

$

Usually ships in 2-12 days

0

51

Scag 422180

Plate

$

$

Not available

52

Scag 44122

U-Bolt, 3/8-16

$

$

Not available

53

Scag 45839

Guide, Screen - Upper L.H.

$

$

Not available

54

Scag 481056

Spring, Switch

$30.99

$

Usually ships in 2-12 days

0

55

Scag 04010-01

Screw, Round Head, #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

56

Scag 04031-01

Lockwasher, External Tooth, #10

$0.99

$

In Stock, Qty 20+

0

57

Scag 04020-01

Hex Nut, #10

$8.99

$

In Stock, Qty 20+

0

58

Scag 45796

Screen Stop

$

$

Not available

59

Scag 481353-01

Trim Seal

$16.99

$

Usually ships in 2-12 days

0

60

Scag 45840

Guide, Screen - Upper R.H.

$

$

Not available

61

Scag 45797

Screen

$167.99

$

Usually ships in 2-12 days

0

62

Scag 04017-16

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

63

Scag 481092-01

Wingnut, Plastic

$5.49

$

In Stock, only 2 left!

0

64

Scag 45865

Frame, Hopper

$

$

Not available

65

Scag 481495

Spring, Switch Lever

$54.99

$

Usually ships in 2-12 days

0

66

Scag 04001-76

Hex Head Bolt, 5/16-18 x 4.0"

$1.99

$

In Stock, Qty 5

0

67

Scag 46864

Door Assy, Hopper

$

$

Not available
