STR-22CH - Scag Turf Runner Riding Mower, 22hp Kohler (SN: 60000 - 69999) SPEED AND STEERING CONTROLS Parts Diagram

Turf Runner Riding Mower, 22hp Kohler

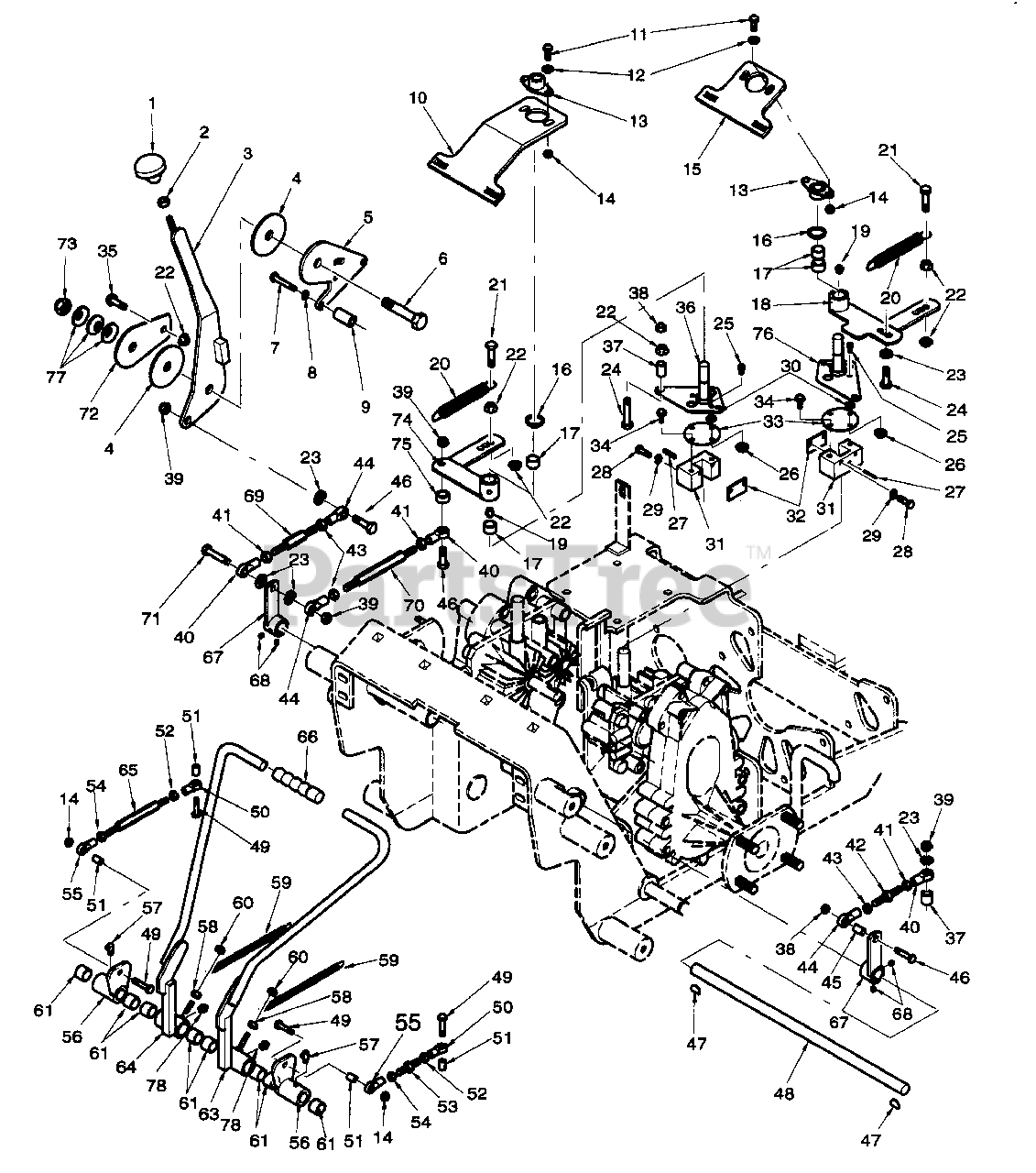

SPEED AND STEERING CONTROLS Parts Diagram

  • Title

1

Scag 481245

KNOB

$8.49

$

Usually ships in 2-12 days

0

2

Scag 04020-04

HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 45753

LEVER, SPEED CONTROL

$

$

Not available

4

Scag 481243

DISC, FRICTION

$

$

Not available

5

Scag 422197

MOUNTING, PLATE, SPEED SELECTOR

$

$

Not available

6

Scag 04001-122

BOLT, HEX HEAD, 5/8-11 X 2-1/4

$2.99

$

Usually ships in 2-12 days

0

7

Scag 04001-53

BOLT, HEX HEAD, 5/16-18 X 2-1/2

$0.99

$

In Stock, Qty 13

0

8

Scag 04030-03

LOCKWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

9

Scag 43380

SPACER, SPEED CONTROL

$

$

Not available

10

Scag 421880

MOUNTING PLATE, SPEED CONTROL

$

$

Not available

11

Scag 04001-08

BOLT, HEX HEAD, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

12

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

13

Scag 48796

BUSHING, SELF-ALIGNING

$12.99

$

Usually ships in 2-12 days

0

14

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 421879

MOUNTING PLATE, LEFT BEARING

$

$

Not available

16

Scag 04050-01

RING, RETAINING, .625

$0.99

$

In Stock, Qty 20+

0

17

Scag 48100-11

BUSHING, OILITE, .627 ID
(Superseded to 481509)

$

$

Not available

18

Scag 46889

LEVER, L.H. SPEED CONTROL

$

$

Not available

19

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

20

Scag 48051

SPRING

$5.49

$

In Stock, only 2 left!

0

21

Scag 04001-32

BOLT, HEX HEAD, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 12

0

22

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-45

BOLT, HEX HEAD, 3/8-16 X 2.0

$0.99

$

In Stock, Qty 8

0

25

Scag 04015-10

CAPSCREW, SOCKET HEAD, 1/4-20 X 1/2

$

$

Currently unavailable

26

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

27

Scag 04060-06

ROLL PIN

$0.99

$

In Stock, only 1 left!

0

28

Scag 04001-59

BOLT, HEX HEAD, 1/4-20 X 1-1/4

$0.99

$

In Stock, Qty 5

0

29

Scag 04030-02

LOCKWASHER, 1/4

$0.99

$

In Stock, Qty 20+

0

30

Scag 04040-03

FLATWASHER, 1/4(.281 X .625 X .065)

$0.99

$

In Stock, Qty 8

0

31

Scag 48829

BLOCK, PUMP CONTROL

$21.99

$

In Stock, only 1 left!

0

32

Scag 421203

CLAMP PLATE, PUMP CONTROL

$18.99

$

Usually ships in 2-12 days

0

33

Scag 421238

PLATE, COUPLER
(Superseded to 422273)

$8.49

$

Usually ships in 2-12 days

0

34

Scag 04017-05

SERR. FL. HEX HEAD CPSCRW, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

35

Scag 04017-18

SERR. FL. HEX HEAD CPSCRW, 5/16-18 X 1-1/4

$1.49

$

Usually ships in 2-12 days

0

36

Scag 45750

ARM, R.H. PUMP CONTROL

$64.99

$

Usually ships in 2-12 days

0

37

Scag 43376

STOP, PUMP ARM

$

$

Not available

38

Scag 04021-05

HEX LOCKNUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

39

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 48464

BALL JOINT, 3/8-24 R.H. THREAD

$23.99

$

In Stock, only 1 left!

0

41

Scag 04020-14

HEX NUT, 3/8-24 R.H. THREAD

$0.99

$

In Stock, only 3 left!

0

42

Scag 48590

LINK

$

$

Not available

43

Scag 04020-17

HEX NUT, 3/8-24 L.H. THREAD

$2.49

$

In Stock, only 3 left!

0

44

Scag 48544

ROD END, 3/8-24 L.H. THREAD

$26.99

$

Usually ships in 2-12 days

0

45

Scag 43212

SLEEVE

$4.49

$

In Stock, Qty 5

0

46

Scag 04001-20

BOLT, HEX HEAD, 3/8-16 1-1/2

$0.99

$

In Stock, Qty 20+

0

47

Scag 04063-12

KEY, 3/16 X 5/8 WOODRUFF

$0.99

$

In Stock, Qty 12

0

48

Scag 43371

SHAFT SPEED CONTROL

$42.99

$

Usually ships in 2-12 days

0

49

Scag 04001-11

BOLT, HEX HEAD, 5/16-18 X 1-1/2

$0.99

$

In Stock, Qty 6

0

50

Scag 481189

ROD END, 5/16-24 R.H. THREAD

$24.99

$

Usually ships in 2-12 days

0

51

Scag 43161

SPACER

$

$

Not available

52

Scag 04020-13

HEX NUT, 5/16-24 R.H. THREAD

$0.99

$

Usually ships in 2-12 days

0

53

Scag 43379

LINK, SPEED CONTROL

$22.99

$

Usually ships in 2-12 days

0

54

Scag 04020-23

HEX NUT, 5/16-24 L.H. THREAD

$

$

Not available

55

Scag 481188

ROD END, 5/16-24 L.H. THREAD

$26.99

$

Usually ships in 2-12 days

0

56

Scag 46886

CONTROL LEVER

$

$

Not available

57

Scag 48114-08

GREASE FITTING, 90DEG

$3.99

$

Usually ships in 2-12 days

0

58

Scag 04020-03

HEX NUT, 5/16-18

$0.99

$

In Stock, only 1 left!

0

59

Scag 481242

SPRING, HANDLE RETURN

$7.99

$

Usually ships in 2-12 days

0

60

Scag 04021-04

HEX LOCKNUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

61

Scag 48100-05

BUSHING, OILITE, .753 ID

$0.99

$

In Stock, only 3 left!

0

?62

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

63

Scag 46887

LEVER, L.H. CONTROL

$

$

Not available

64

Scag 46888

LEVER, R.H. CONTROL
(Superseded to 461004)

$

$

Not available

65

Scag 43378

LINK, R.H. ADJUSTMENT

$

$

Not available

66

Scag 481248

GRIP, HAND CONTROL
(Superseded to 481477)

$4.49

$

In Stock, only 2 left!

0

67

Scag 45745

LEVER, SPEED CONTROL
(Superseded to 482146)

$

$

Not available

68

Scag 04012-02

SETSCREW, SOCKET HEAD, 1/4-20 X 1/4

$0.99

$

In Stock, only 2 left!

0

69

Scag 43379

LINK, SPEED CONTROL

$22.99

$

Usually ships in 2-12 days

0

70

Scag 43246

LINK

$27.99

$

Usually ships in 2-12 days

0

71

Scag 04001-21

BOLT, HEX HEAD, 3/8-16 X 1-3/4

$0.99

$

In Stock, Qty 20+

0

72

Scag 422198

PLATE, SPEED SELECTOR

$

$

Not available

73

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP 5/8-11

$1.49

$

In Stock, Qty 20+

0

74

Scag 46890

LEVER, R.H. SPEED CONTROL

$

$

Not available

75

Scag 43063

SPACER

$7.99

$

In Stock, only 2 left!

0

76

Scag 45749

ARM, L.H. PUMP CONTROL

$73.99

$

Usually ships in 2-12 days

0

77

Scag 04032-04

WASHER, BELLEVILLE, 5/8

$

$

Not available

78

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 9

0
