STR-22CH - Scag Turf Runner Riding Mower, 22hp Kohler (SN: 60000 - 69999) HOPPER ACTUATOR MECHANISM Parts Diagram

Turf Runner Riding Mower, 22hp Kohler

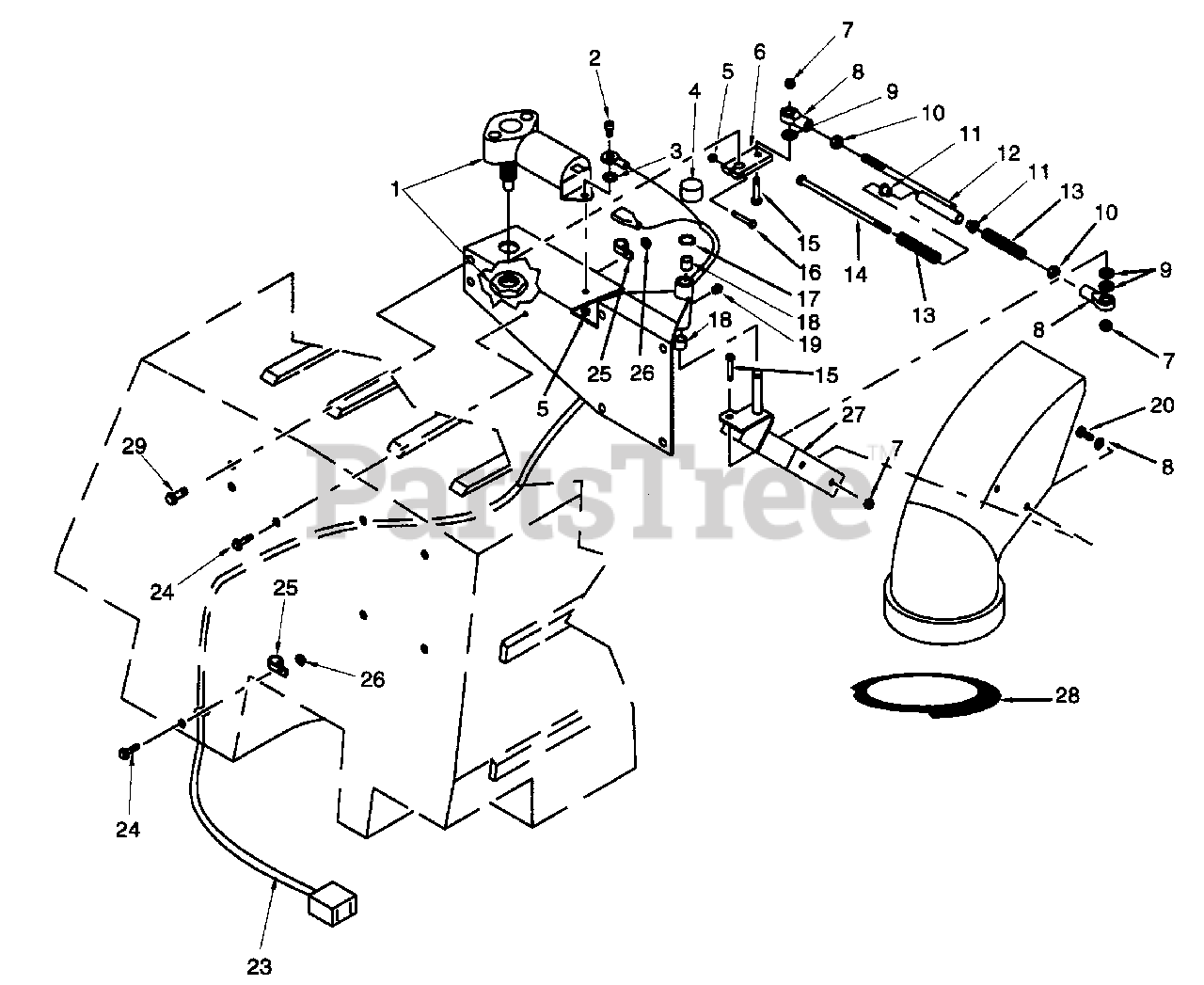

HOPPER ACTUATOR MECHANISM Parts Diagram

  • Title

1

Scag 481254

MOTOR, ACTUATOR

$577.99

$

Usually ships in 2-12 days

0

2

Scag 04015-05

CAPSCREW, SOCKET HEAD, #10-32 X 1/2

$0.99

$

In Stock, Qty 5

0

3

Scag 04031-01

WASHER, EXTERNAL

$0.99

$

In Stock, Qty 20+

0

4

Scag 481285

CAP, PLASTIC

$0.99

$

Usually ships in 2-12 days

0

5

Scag 04021-01

HEX LOCKNUT, ELASTIC STOP, #10-32

$0.99

$

In Stock, Qty 10

0

6

Scag 481291

LEVER, ACTUATOR

$20.99

$

Usually ships in 2-12 days

0

7

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

8

Scag 481189

ROD END, 5/16-18 R.H. THREAD

$24.99

$

Usually ships in 2-12 days

0

9

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04020-13

HEX NUT, 5/16-18

$0.99

$

Usually ships in 2-12 days

0

11

Scag 481354

BUSHING, NYLON

$

$

Not available

12

Scag 45799

CONNECTING ROD

$

$

Not available

13

Scag 481344

SPRING, CONNECTING ROD

$

$

Not available

14

Scag 04001-124

BOLT, HEX HEAD, 5/16-18 X 7.00

$

$

Not available

15

Scag 04001-10

BOLT, HEX HEAD, 5/16-18 X 1-1/4

$0.99

$

In Stock, Qty 14

0

16

Scag 04015-08

CAPSCREW, SOCKET HEAD, #10-32 X 1-1/2

$0.99

$

Usually ships in 2-12 days

0

17

Scag 04050-10

RETAINER RING

$0.99

$

In Stock, only 4 left!

0

18

Scag 48100-04

BUSHING, OILITE, .502ID

$0.99

$

In Stock, only 4 left!

0

19

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 9

0

20

Scag 04001-08

BOLT, HEX HEAD, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

?21

Scag 481253

CHUTE
(Superseded to 461475)

$

$

Not available

?22

Scag 45777

ACTUATOR MOUNT
(Superseded to 46844)

$

$

Not available

23

Scag 481256

WIRE HARNESS, HOPPER
(Superseded to 482033)

$42.99

$

Usually ships in 2-12 days

0

24

Scag 04017-05

SERR. FL. HEX HEAD CAPSCREW, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

25

Scag 48030-09

CLAMP, CABLE, 1/2

$1.49

$

In Stock, Qty 5

0

26

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

27

Scag 45778

PIVOT, ELBOW

$

$

Not available

28

Scag 481408

SEAL, HOPPER ELBOW

$9.99

$

Usually ships in 2-12 days

0

29

Scag 04006-01

BODY BOLT, 5/16-18 X .81

$0.99

$

In Stock, Qty 9

0
