STR-22CH - Scag Turf Runner Riding Mower, 22hp Kohler (SN: 60000 - 69999) ENGINE AND ATTACHING PARTS Parts Diagram

Turf Runner Riding Mower, 22hp Kohler

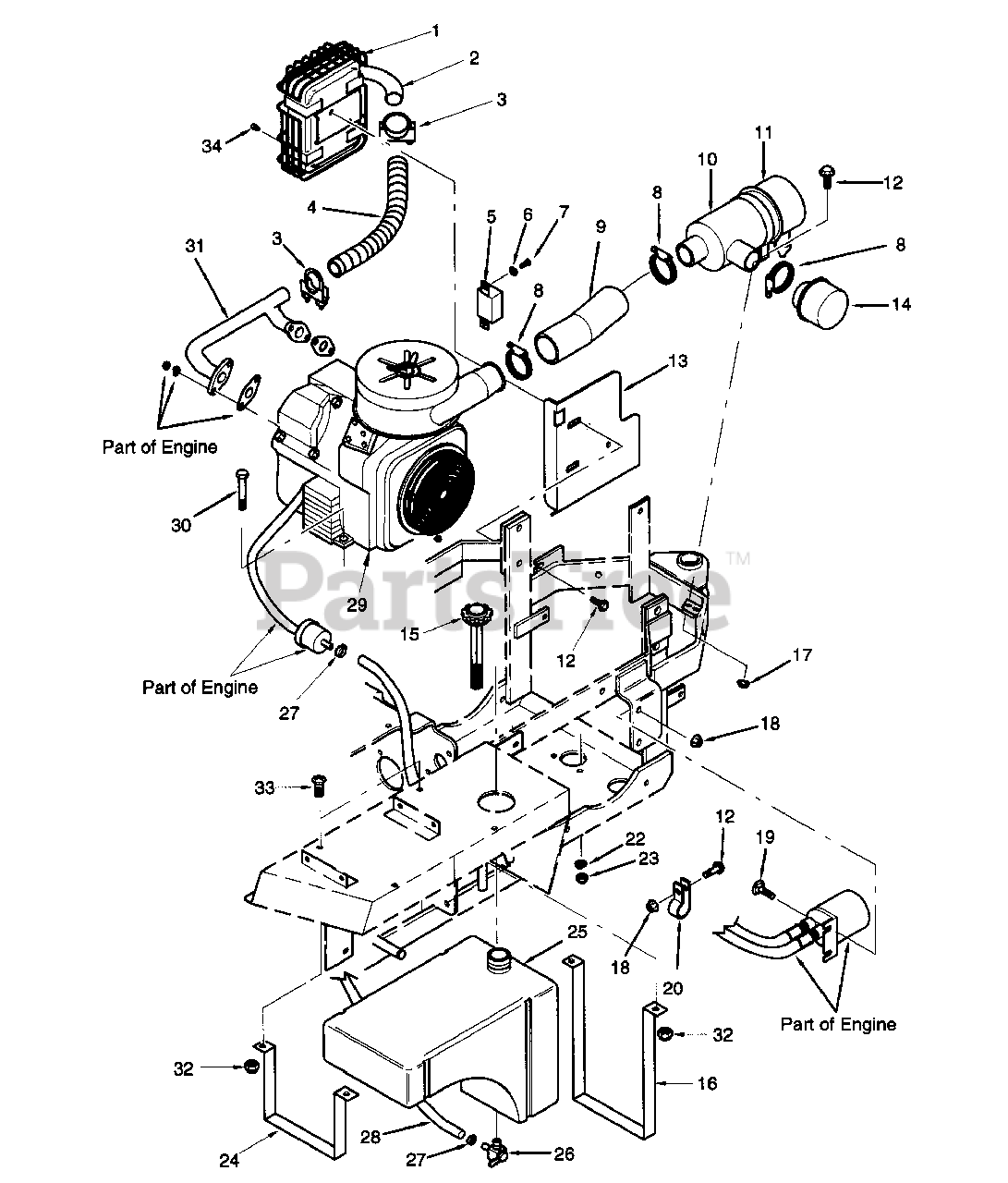

ENGINE AND ATTACHING PARTS Parts Diagram

  • Title

1

Scag 481364

GUARD, MUFFLER

$195.99

$

Usually ships in 2-12 days

0

2

Scag 481449

MUFFLER

$143.99

$

Usually ships in 2-12 days

0

3

Scag 481259

CLAMP, MUFFLER

$6.49

$

Usually ships in 2-12 days

0

4

Scag 481257

EXHAUST PIPE, FLEXIBLE

$16.99

$

Usually ships in 2-12 days

0

5

Scag 481275

RELAY

$34.99

$

In Stock, only 1 left!

0

6

Scag 04030-02

LOCKWASHER, 1/4

$0.99

$

In Stock, Qty 20+

0

7

Scag 04010-01

MACHINE SCREW, ROUND HEAD, 1/4-20 X 1/2

$0.99

$

In Stock, Qty 20+

0

8

Scag 48136-09

CLAMP, 2.25 DIA

$17.99

$

Usually ships in 2-12 days

0

9

Scag 481297

HOSE, AIR INTAKE

$23.99

$

Usually ships in 2-12 days

0

10

Scag 481332

AIR CLEANER ASSEMBLY

$232.99

$

Usually ships in 2-12 days

0

11

Scag 481334

BAND, AIR CLEANER

$36.99

$

Usually ships in 2-12 days

0

12

Scag 04017-16

SERR. FL. HEX HEAD CPSCR, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

13

Scag 421916

GUARD, MUFFLER

$

$

Not available

14

Scag 481274

PRECLEANER, AIR INTAKE

$269.99

$

Usually ships in 2-12 days

0

15

Scag 48658

CAP, FUEL TANK, WITH GAUGE
(Superseded to 483787)

$61.99

$

Usually ships in 2-12 days

0

16

Scag 421939

STRAP, FUEL TANK - REAR

$

$

Not available

17

Scag 04019-03

SERR. FL. HEX NUT, 5/16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 04003-04

CARRIAGE BOLT, 5/16-18 X 1.00

$0.99

$

In Stock, Qty 9

0

20

Scag 48030-11

CLAMP

$2.49

$

Usually ships in 2-12 days

0

?21

Scag 04040-04

FLATWASHER, 5/16(.344 X .688 X .065)

$0.99

$

In Stock, Qty 20+

0

22

Scag 04030-04

LOCKWASHER, 3/8

$0.99

$

In Stock, Qty 8

0

23

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 421938

STRAP, FUEL TANK - FRONT

$19.99

$

Usually ships in 2-12 days

0

25

Scag 48651

FUEL TANK(INCLUDES 26)

$213.99

$

Usually ships in 2-12 days

0

26

Scag 48308

VALVE, FUEL SHUT OFF
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

27

Scag 48059-01

CLAMP, HOSE

$0.99

$

In Stock, Qty 7

0

28

Scag 48058

FUEL HOSE - 20" LONG(ORDER LENGTH)
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

29

Scag 481141

ENGINE, KOHLER - 20 HP(20CH)

$

$

Not available

29

Scag 481150

ENGINE, KOHLER - 22 HP(22CH)

$

$

Not available

30

Scag 04001-21

BOLT, HEX HEAD, 3/8-16 X 1-3/4

$0.99

$

In Stock, Qty 20+

0

31

Scag 481342

MANIFOLD, EXHAUST

$

$

Not available

32

Scag 04110-01

U-NUT

$1.49

$

In Stock, Qty 18

0

33

Scag 04010-10

MACHINE SCREW, ROUND HEAD, 1/4-20 X 2.00

$0.99

$

In Stock, Qty 12

0

34

Scag 04015-05

CAPSCREW, SOCKET HEAD, #10-32 X 1/2

$0.99

$

In Stock, Qty 5

0
