STR-22CH - Scag Turf Runner Riding Mower, 22hp Kohler (SN: 60000 - 69999) DECK DRIVE Parts Diagram

Turf Runner Riding Mower, 22hp Kohler

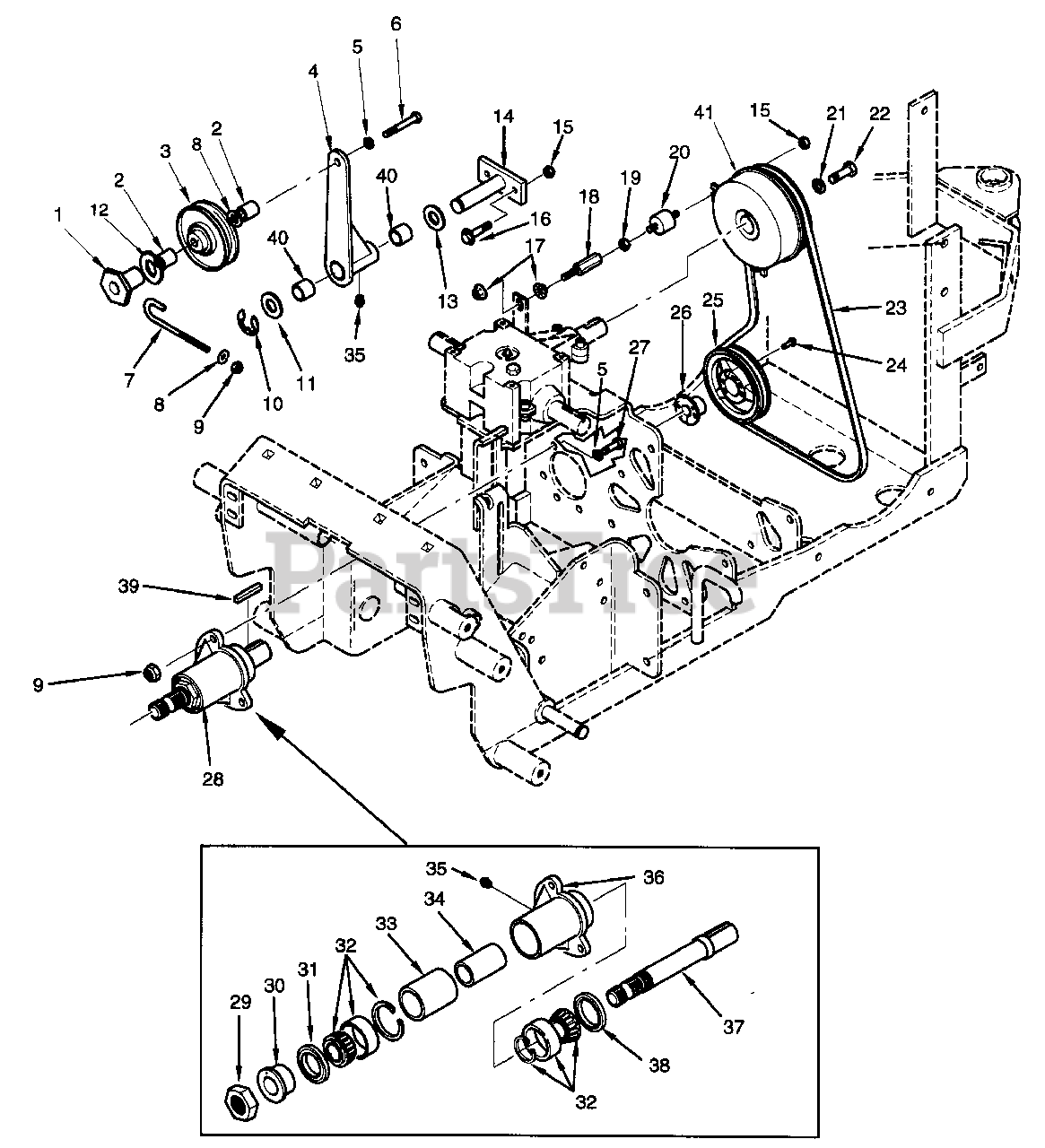

DECK DRIVE Parts Diagram

  • Title

1

Scag 43369

NUT, SPECIAL

$

$

Not available

2

Scag 43282

SPACER J-PULL ROD

$7.99

$

In Stock, only 1 left!

0

3

Scag 48068

PULLEY, IDLER

$43.99

$

Usually ships in 2-12 days

0

4

Scag 46932

IDLER ARM, AUXILIARY DRIVE

$

$

Not available

5

Scag 04030-04

LOCKWASHER, 3/8

$0.99

$

In Stock, Qty 7

0

6

Scag 04001-62

BOLT, HEX HEAD, 3/8-16 X 3-1/4

$1.49

$

In Stock, Qty 12

0

7

Scag 44078

J-PULL ROD

$6.99

$

In Stock, only 2 left!

0

8

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 04050-02

RETAINING RING, .75 "E"

$0.99

$

In Stock, Qty 7

0

11

Scag 04041-08

FLATWASHER, 3/4(.766 X 1.25 X .060)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04041-12

WASHER

$0.99

$

In Stock, Qty 9

0

13

Scag 04041-08S

FLATWASHER, 3/4(.766 X 1.25 X .035)

$0.99

$

In Stock, Qty 20+

0

14

Scag 45740

PIVOT, AUXILIARY DRIVE IDLER

$20.99

$

Usually ships in 2-12 days

0

15

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04017-17

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 1.00

$0.99

$

Usually ships in 2-12 days

0

17

Scag 04019-05

SERR. FL. HEX NUT, 7/16-14

$0.99

$

In Stock, Qty 12

0

18

Scag 43409

PIN, CLUTCH ANTI-ROTATION

$

$

Not available

19

Scag 04020-03

HEX NUT, 5/16-18

$0.99

$

In Stock, only 1 left!

0

20

Scag 481311

ISOLATOR, RUBBER

$21.99

$

Usually ships in 2-12 days

0

21

Scag 04030-05

LOCKWASHER, 7/16

$0.99

$

In Stock, Qty 5

0

22

Scag 04001-103

BOLT, HEX HEAD, 7/16-20 X 2-1/4

$

$

Currently unavailable

23

Scag 481234

BELT, BLOWER DRIVE
(Superseded to 481496)

$45.99

$

Usually ships in 2-12 days

0

24

Scag 04015-14

SOCKET HEAD CAPSCREW, 1/4-20 X 1-3/8

$2.99

$

Usually ships in 2-12 days

0

25

Scag 481435

PULLEY, 5.35 OD
(Superseded to 483284)

$37.99

$

In Stock, only 1 left!

0

26

Scag 48926

HUB, TAPERED

$30.99

$

In Stock, Qty 20+

0

27

Scag 04001-32

BOLT, HEX HEAD, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 11

0

28

Scag 46828

SPINDLE ASSEMBLY, DRIVE SHAFT(INCLUDES29-38)

$

$

Not available

29

Scag 481035

NUT, 1.06-18

$7.99

$

In Stock, only 3 left!

0

30

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 2 left!

0

31

Scag 481025

SEAL, 2.00 OD X 1.625 BORE

$4.99

$

In Stock, Qty 20+

0

32

Scag 481022

ROLLER BEARING ASSEMBLY

$59.99

$

In Stock, Qty 15

0

33

Scag 43312

SPACER, OUTSIDE

$19.99

$

In Stock, only 1 left!

0

34

Scag 43296

SPACER, INSIDE

$8.49

$

In Stock, only 2 left!

0

35

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

36

Scag 43368

SPINDLE HOUSING

$

$

Not available

37

Scag 43316

SHAFT, PTO DECK DRIVE
(Superseded to 46828)

$

$

Not available

38

Scag 481024

SEAL, 2.00 OD X 1.50 BORE

$4.99

$

In Stock, Qty 20+

0

39

Scag 04063-01

KEY, 1/4 X 1/4 X 1-1/4

$1.49

$

In Stock, only 4 left!

0

40

Scag 48100-05

BUSHING, OILITE, .753 ID

$0.99

$

In Stock, only 3 left!

0

41

Scag 481228

ELECTRIC CLUTCH

$491.99

$

Usually ships in 2-12 days

0
