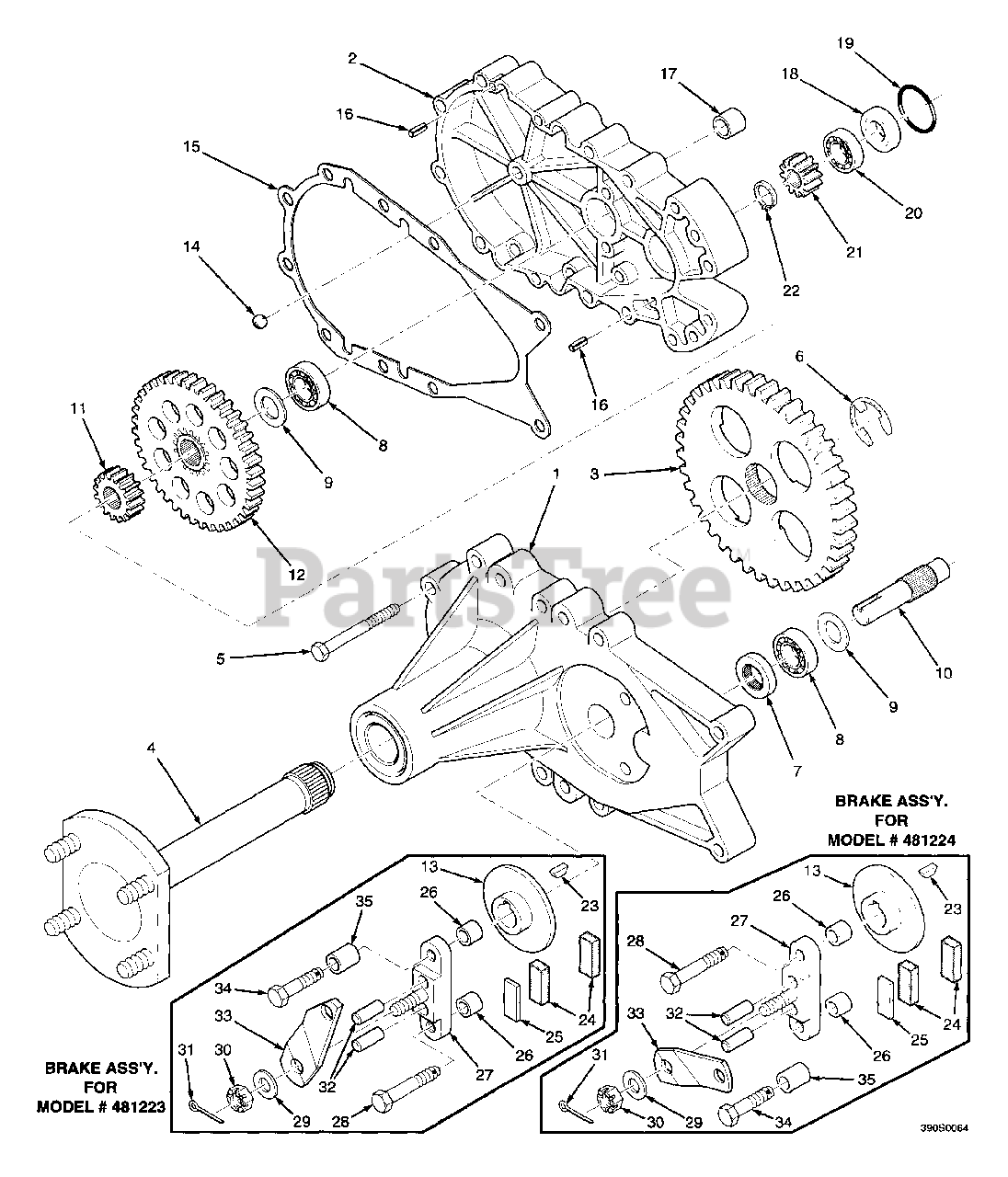

STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Hydro-Gear Axle Assembly Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

Hydro-Gear Axle Assembly Parts Diagram

  • Title

Scag 481223

Axle, L.H.

Note: Includes Items 1-36

$

$

Not available

Scag 481224

Axle, R.H.

Note: Includes Items 1-36

$

$

Not available

1

Scag HG62768

Axle Housing Assembly

$

$

Not available

2

Scag HG44533

Hydro Mount Housing

$

$

Not available

3

Scag HG44358

Splined Final Gear Drive

$

$

Not available

4

Scag HG62681

Axle Shaft Assembly

$

$

Not available

5

Scag HG44366

Bolt, 1/4-20 x 2-1/2 Hex Head

$

$

Not available

6

Scag HG44359

E-Ring

$4.99

$

Usually ships in 2-12 days

0

7

Scag HG50263

Oil Seal, 1.25 x .625"

$4.99

$

Usually ships in 2-12 days

0

8

Scag HG44147

Ball Bearing, .62 ID x 1.38 x .44"

$26.99

$

Usually ships in 2-12 days

0

9

Scag HG44371

Washer, HT. 62 ID x 1.0 OD x .05 Thick

$1.99

$

Usually ships in 2-12 days

0

10

Scag HG44351

Brake Shaft (Splined)

$174.99

$

In Stock, only 1 left!

0

11

Scag HG50419

Splined Reduction Gear, 17 Tooth

$92.99

$

Usually ships in 2-12 days

0

12

Scag HG50420

Splined 60 Tooth Gear

$142.99

$

Usually ships in 2-12 days

0

13

Scag HG44090

Disc, Brake

$14.99

$

Usually ships in 2-12 days

0

14

Scag HG9001214-3700

Ball, 3/8 Diameter

$

$

Not available

15

Scag HG50223

Gasket, Housing

$22.99

$

Usually ships in 2-12 days

0

16

Scag HG44269

Pin, Spring, 3/16 x 1/2 x 1/2 Long

$

$

Not available

17

Scag HG23749

Mounting Spacer

$

$

Not available

18

Scag HG44355

Bearing, Spacer

$2.49

$

In Stock, only 1 left!

0

19

Scag HG50267

O-Ring

$2.49

$

Usually ships in 2-12 days

0

20

Scag HG44232

Ball Bearing, 15mm x 35mm x 11mm

$

$

Not available

21

Scag HG44353

Input Gear, 11 Tooth
(Superseded to 48875)

$

$

Not available

22

Scag HG44354

Retaining Ring

$1.99

$

Usually ships in 2-12 days

0

23

Scag HG44143

Key, HI Pro 3/16 x 5/8"

$7.49

$

Usually ships in 2-12 days

0

24

Scag HG44132

Puck, Brake

$5.99

$

In Stock, only 3 left!

0

25

Scag HG44134

Plate, Puck

$2.49

$

Usually ships in 2-12 days

0

26

Scag HG23770

Brake Spacer

$3.99

$

Usually ships in 2-12 days

0

27

Scag HG62589

Brake Yoke Assembly

$

$

Not available

28

Scag HG44276

Bolt, 1/4-20 x 1-1/2 Hex Head

$

$

Not available

29

Scag HG44130

Washer, 7/16 x 7/8 OD x .06 HT

$

$

Not available

30

Scag HG44142

Nut, Castle, 5/16-24 PL

$

$

Not available

31

Scag HG44101

Pin, Cotter

$

$

Not available

32

Scag HG44127

Pin, Brake Actuating

$2.49

$

Usually ships in 2-12 days

0

33

Scag HG44094

Arm, Brake Actuator (L.H. Assembly)

$9.49

$

Usually ships in 2-12 days

0

33

Scag HG44613

Arm, Brake Actuator (R.H. Assembly)

$14.99

$

Usually ships in 2-12 days

0

34

Scag HG44612

Bolt, 1/4-20 x 2-1/2 Hex Head

$

$

Not available

35

Scag HG23711

Spacer

$

$

Not available
