STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Engine And Attaching Parts Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

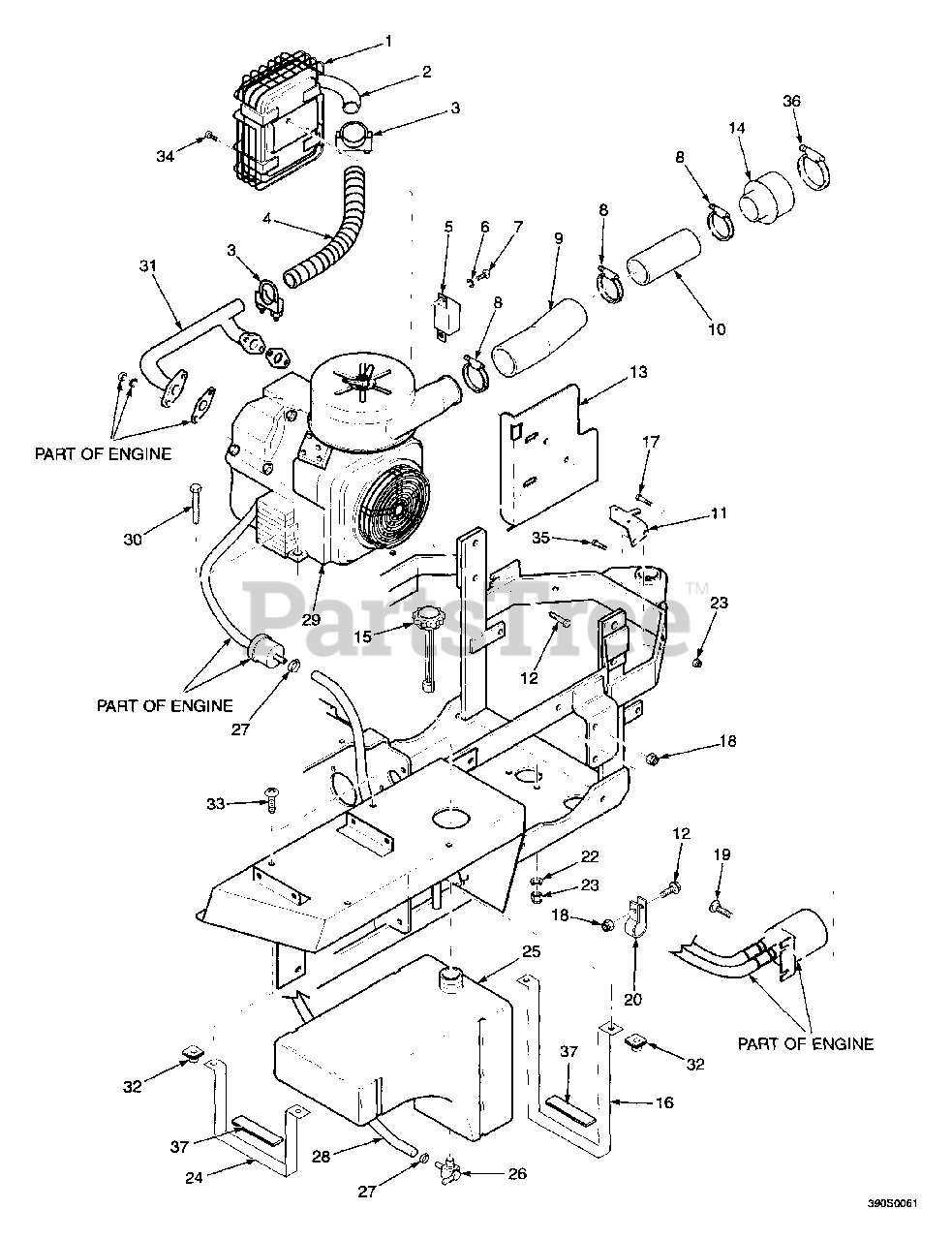

Engine And Attaching Parts Parts Diagram

  • Title

1

Scag 481364

Guard, Muffler

$195.99

$

Usually ships in 2-12 days

0

2

Scag 481449

Muffler

$143.99

$

Usually ships in 2-12 days

0

3

Scag 481259

Clamp, Muffler

$6.49

$

Usually ships in 2-12 days

0

4

Scag 481257

Exhaust Pipe, Flexible

$16.99

$

Usually ships in 2-12 days

0

5

Scag 481275

Relay

$34.99

$

In Stock, only 1 left!

0

6

Scag 04030-02

Lockwasher, 1/4

$0.99

$

In Stock, Qty 20+

0

7

Scag 04010-01

Machine Screw, Round Head, 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 20+

0

8

Scag 48136-09

Clamp, 2.25 Dia

$17.99

$

Usually ships in 2-12 days

0

9

Scag 481297

Hose, Air Intake

$23.99

$

Usually ships in 2-12 days

0

10

Scag 422233

Pipe Ext, Air Cleaner

$21.99

$

Usually ships in 2-12 days

0

11

Scag 422284

Mounting Brkt., Air Cleaner

$31.99

$

Usually ships in 2-12 days

0

12

Scag 04017-16

Serr. Flange Hex Head, CPSCR, 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 10

0

13

Scag 421916

Guard, Muffler

$

$

Not available

14

Scag 481274

Precleaner, Air Intake

$269.99

$

Usually ships in 2-12 days

0

15

Scag 48658

Gap, Fuel Tank, with Gauge
(Superseded to 483787)

$61.99

$

Usually ships in 2-12 days

0

16

Scag 421939

Strap, Fuel Tank - Rear

$

$

Not available

17

Scag 04001-20

Hex Head Bolt, 3/8-16 x 1.50"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 04003-04

Carriage Bolt, 5/16-18 x 1.00"

$0.99

$

In Stock, Qty 9

0

20

Scag 48030-11

Clamp

$2.49

$

Usually ships in 2-12 days

0

?21

Scag 04040-04

Flatwasher, 5/16 (.344 x .688 x .065)

$0.99

$

In Stock, Qty 20+

0

22

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

23

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 421938

Strap, Fuel Tank-Front

$19.99

$

Usually ships in 2-12 days

0

25

Scag 48651

Fuel Tank

Note: Includes item 26

$213.99

$

Usually ships in 2-12 days

0

26

Scag 48308

Valve, Fuel Shut Off
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

27

Scag 48059-01

Clamp, Hose

$0.99

$

In Stock, Qty 7

0

28

Scag 48058

Fuel Hose - 20" Long
(Superseded to 483617)

Note: Order Length

$0.99

$

In Stock, Qty 20+

0

29

Scag 481141

Engine, Kohler - 20 HP (20CH)

$

$

Not available

29

Scag 481150

Engine, Kohler - 22 HP (22CH)

$

$

Not available

30

Scag 04001-21

Bolt, Hex Head, 3/8-16 x 1-3/4

$0.99

$

In Stock, Qty 20+

0

31

Scag 481342

Manifold, Exhaust

$

$

Not available

32

Scag 04110-01

U-Nut

$1.49

$

In Stock, Qty 18

0

33

Scag 04010-10

Machine Screw, Round Head, 1/4-20 x 2.00"

$0.99

$

In Stock, Qty 12

0

34

Scag 04015-05

Capscrew, Socket Head, #10-32 x 1/2"

$0.99

$

In Stock, Qty 5

0

35

Scag 04001-32

Hex Head Bolt, 3/8-16 x 1.25"

$0.99

$

In Stock, Qty 12

0

36

Scag 48136-11

Clamp, Hose 5.50"

$

$

Not available

37

Scag 48657

Rubber Pad

$5.99

$

Usually ships in 2-12 days

0
