STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Electrical System Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

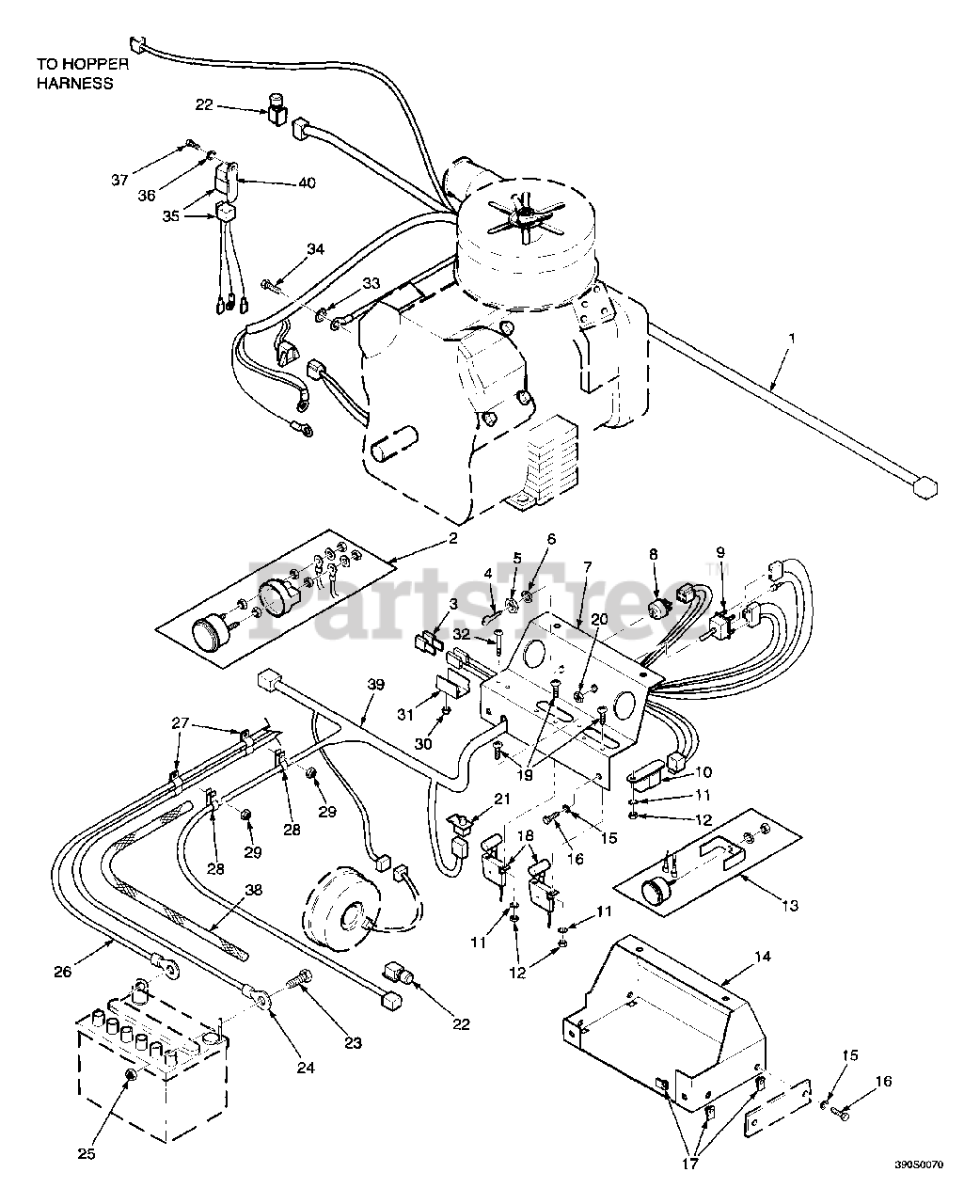

Electrical System Parts Diagram

  • Title

1

Scag 481422

Harness, Engine

$

$

Not available

2

Scag 48023

Hourmeter

$157.99

$

Usually ships in 2-12 days

0

3

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

4

Scag 48017-02

Key & Ring Assembly

$3.99

$

In Stock, Qty 9

0

5

Scag 48017-04

Nut, Hex, 5/8-32

$1.49

$

In Stock, Qty 5

0

6

Scag 48017-03

Lockwasher, 5/8 Internal

$0.99

$

In Stock, Qty 6

0

7

Scag 46883

Instrument Panel, Top With Decal

$

$

Not available

8

Scag 48798

Keyswitch

$27.99

$

In Stock, Qty 20+

0

9

Scag 48787

Switch, Mower Engagement Electric Clutch

$37.99

$

In Stock, only 1 left!

0

10

Scag 48788

Relay

$28.99

$

In Stock, Qty 9

0

11

Scag 04031-01

Lockwasher, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-01

Hex Locknut, Elastic Stop, #10-32

$0.99

$

In Stock, Qty 10

0

13

Scag 48022

Ammeter
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

14

Scag 45798

Base, Instrument Panel

$

$

Not available

15

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-01

Bolt, Hex Head, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04110-01

U-Nut

$1.49

$

In Stock, Qty 18

0

18

Scag 481363

Throttle and Choke Controls

$34.99

$

In Stock, Qty 16

0

19

Scag 04010-01

Screw, Washer Round Head, #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

20

Scag 48787-01

Nut, Hex, 1/2-27

$2.99

$

Usually ships in 2-12 days

0

21

Scag 48717

Switch, Interlock - Seat

$9.99

$

In Stock, only 3 left!

0

22

Scag 481474

Switch, Interlock - (Neutral and Hopper)

$103.99

$

In Stock, only 1 left!

0

23

Scag 04001-44

Bolt, Hex Head, 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

24

Scag 48029-16

Cable, Battery - Red

$54.99

$

Usually ships in 2-12 days

0

25

Scag 04020-02

Nut, Hex, 1/4-20

$0.99

$

In Stock, Qty 20+

0

26

Scag 48029-17

Cable, Battery - Black

$

$

Not available

27

Scag 48030-11

Clamp, Double Cable

$2.49

$

Usually ships in 2-12 days

0

28

Scag 48030-10

Clamp, Cable

$0.99

$

Usually ships in 2-12 days

0

29

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 04021-01

Hex Locknut, Elastic Stop, #10-32

$0.99

$

In Stock, Qty 10

0

31

Scag 42413

Bracket, Fuse Holder

$40.99

$

Usually ships in 2-12 days

0

32

Scag 04010-11

Screw, Round Head, #10-32 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

33

Scag 04031-03

Lockwasher, External Tooth, 5/16

$0.99

$

Usually ships in 2-12 days

0

34

Scag 04002-12

Bolt, Hex Head, M8-1.25 x 20

$0.99

$

In Stock, Qty 9

0

35

Scag 481275

Relay and Harness

Note: Includes item 40

$33.99

$

In Stock, only 1 left!

0

36

Scag 04030-02

Lockwasher, 1/4

$0.99

$

In Stock, Qty 20+

0

37

Scag 04002-14

Bolt, Hex Head, M6-1.125 x 10

$

$

Currently unavailable

38

Scag 48033-04

Nylon Sleeve, 24"

$

$

Not available

39

Scag 481421

Wire Harness, STR

$336.99

$

In Stock, only 1 left!

0

40

Scag 48788

Relay

$28.99

$

In Stock, Qty 9

0
