STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Cutter Deck Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

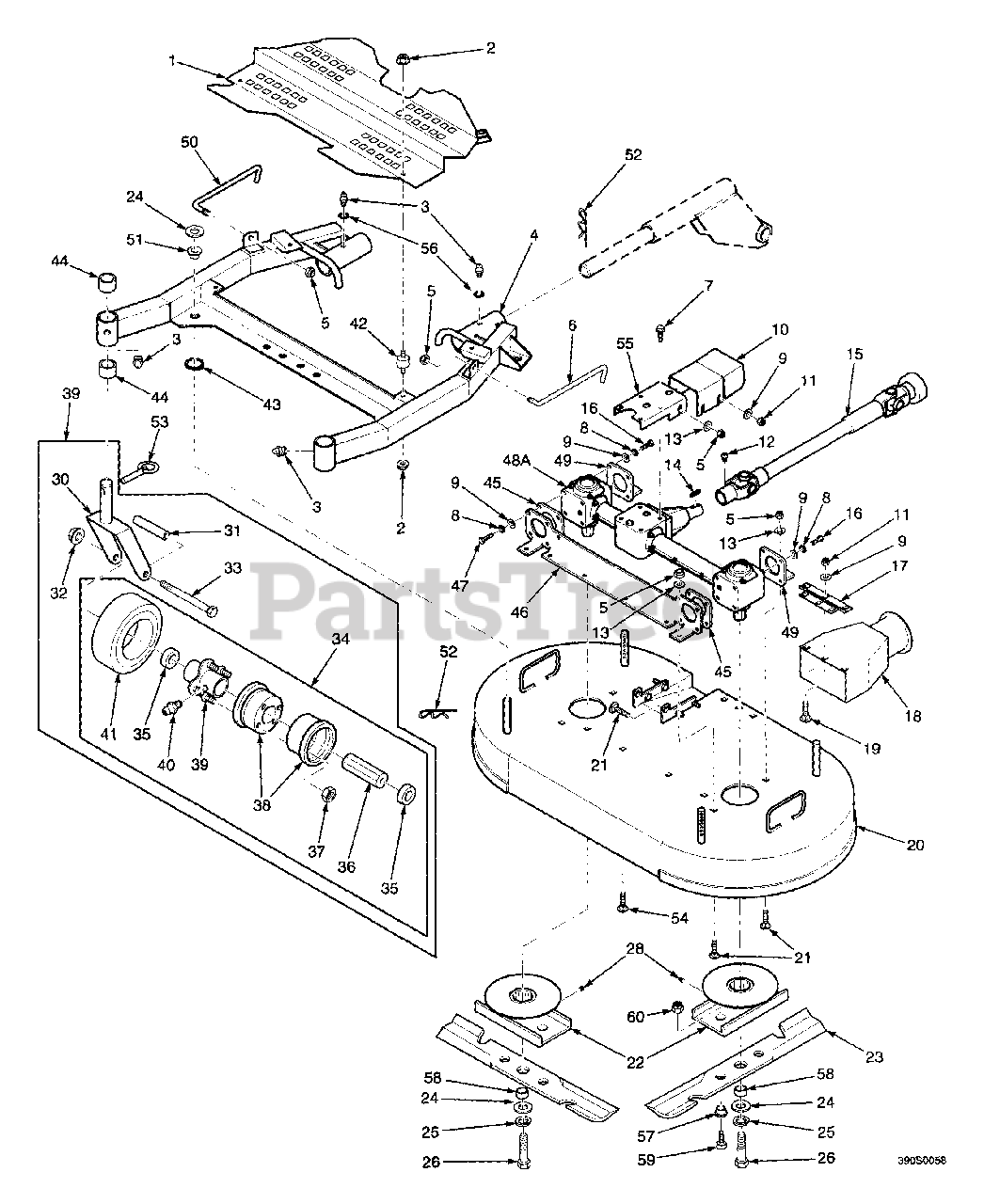

Cutter Deck Parts Diagram

  • Title

1

Scag 45811

Foot Plate

$

$

Not available

2

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

3

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

4

Scag 46964

Frame, Cutter Deck Support

Note: Includes items 3, 44 & 56

$

$

Not available

5

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 44120

Rod, Deck Prop - L.H.

$7.99

$

Usually ships in 2-12 days

0

7

Scag 04017-16

Serr. Fl. Hex Head CPSCRW, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

8

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

10

Scag 45887

Guard, U-Joint

$37.99

$

Usually ships in 2-12 days

0

11

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04012-08

Setscrew, Torx Socket, 3/8-16 x 3/8
(Superseded to 04012-06)

$0.99

$

In Stock, only 1 left!

0

13

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

14

Scag 04063-20

Key, 1/4 x 1/4 x 1.00"

$1.49

$

In Stock, Qty 5

0

15

Scag 481505

Drive Shaft
(Superseded to 481263)

$974.99

$

Usually ships in 2-12 days

0

16

Scag 04001-09

Bolt, Hex Head, 5/16-18 x 1.00"

$0.99

$

In Stock, Qty 20+

0

17

Scag 481262

Hinge, Discharge Chute

$30.99

$

Usually ships in 2-12 days

0

18

Scag 45767

Chute, Cutter Deck

$351.99

$

Usually ships in 2-12 days

0

19

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

20

Scag 46965

Cutter Deck With Decals

$

$

Not available

21

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

22

Scag 45863

Adapter, Blade Drive

$

$

Not available

23

Scag 481429

Blade, Cutter - L.H.
(Superseded to 481554)

$

$

Not available

24

Scag 04040-10

Flatwasher, 5/8 (.688 x 1.750 x .134)

$0.99

$

In Stock, Qty 11

0

25

Scag 04030-07

Lockwasher, 5/8"

$1.49

$

In Stock, Qty 19

0

26

Scag 04001-131

Bolt, Hex Head, 5/8-11 x 1-3/4"

$2.49

$

Usually ships in 2-12 days

0

?27

Scag 481430

Blade, Cutter - R.H.
(Superseded to 481555)

$41.99

$

In Stock, only 1 left!

0

28

Scag 04012-04

Setscrew, Hex Socket, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

?29

Caster Wheel Yoke Assy

Note: Not Available

$

$

Not available

30

Scag 45768

Yoke, Caster Wheel

$69.99

$

Usually ships in 2-12 days

0

31

Scag 43022

Sleeve

$6.99

$

In Stock, Qty 20+

0

32

Scag 04021-07

Hex Locknut, Elastic Stop, 1/2-13

$0.99

$

In Stock, Qty 20+

0

33

Scag 04001-37

Bolt, Hex Head, 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 15

0

34

Scag 48307

Caster Wheel Assembly

Note: Includes items 35-41

$155.99

$

Usually ships in 2-12 days

0

35

Scag 48006-07

Retainer, Caster Wheel
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

36

Scag 48006-06

Roller Bearing, Caster Wheel
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

37

Scag 48307-08

Tapered Hex Nut, 5/16-24
(Superseded to 481771)

$1.99

$

Usually ships in 2-12 days

0

38

Scag 48307-04

Rim Pair, Caster Wheel
(Superseded to 481772)

$72.99

$

In Stock, only 1 left!

0

39

Scag 48006-05

Hub Assembly with Bolts
(Superseded to 481768)

$66.99

$

Usually ships in 2-12 days

0

40

Scag 48114-03

Grease Fitting

$5.49

$

In Stock, Qty 6

0

41

Scag 48307-02

Tire
(Superseded to 481774)

$89.99

$

Usually ships in 2-12 days

0

Scag 48006-03

Inner Tube
(Superseded to 481773)

Note: Not Shown

$21.99

$

In Stock, only 2 left!

0

42

Scag 481311

Isolator, Rubber

$22.99

$

Usually ships in 2-12 days

0

43

Scag 04050-04

Retainer Ring, 1.00"

$1.99

$

In Stock, Qty 5

0

44

Scag 48100-01

Bushing, Oilite, .877 ID

$2.99

$

In Stock, Qty 5

0

45

Scag 422046

Spacer

$18.99

$

Usually ships in 2-12 days

0

46

Scag 421928

Mounting Bracket - Front

$

$

Not available

47

Scag 04001-10

Bolt, Hex Head, 5/16-18 1-1/4"

$0.99

$

In Stock, Qty 14

0

?48

Scag 481346

Gearbox Assembly
(Superseded to 461092)

Note: Includes items 48A and 48B

$6963.99

$

Usually ships in 2-12 days

0

48A

Scag 481409

Gearbox, Left and Right
(Superseded to 461092)

$6963.99

$

Usually ships in 2-12 days

0

?48B

Scag 481410

Gearbox, Center

$965.99

$

Usually ships in 2-12 days

0

49

Scag 421929

Mounting Bracket - Rear

$11.99

$

Usually ships in 2-12 days

0

50

Scag 44121

Rod, Deck Prop - R.H.

$

$

Not available

51

Scag 481264

Bushing, Cutter Deck Support

$12.99

$

Usually ships in 2-12 days

0

52

Scag 04062-04

Hairpin, Cotter, .177 x 3.25"

$1.99

$

In Stock, Qty 20+

0

53

Scag 04066-01

Quick Pin

$8.99

$

In Stock, Qty 7

0

54

Scag 04003-11

Carriage Bolt, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

55

Scag 422109

Bracket, Anti-Rotation

$36.99

$

Usually ships in 2-12 days

0

56

Scag 04031-08

Washer, Internal Lock

$0.99

$

In Stock, Qty 10

0

57

Spacer Shear Bolt

$

$

Not available

58

Scag 43432

Spacer, Cutter Blade

$3.99

$

In Stock, only 2 left!

0

59

Capscrew, #8-32 x 1.00"

$

$

Not available

60

Locknut, #8-32 Elastic Stop

$

$

Not available

Scag 46962

Shear Bolt Package
(Superseded to 461035)

$24.99

$

Usually ships in 2-12 days

0
