STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 70000 - 79999) Blower Assembly Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

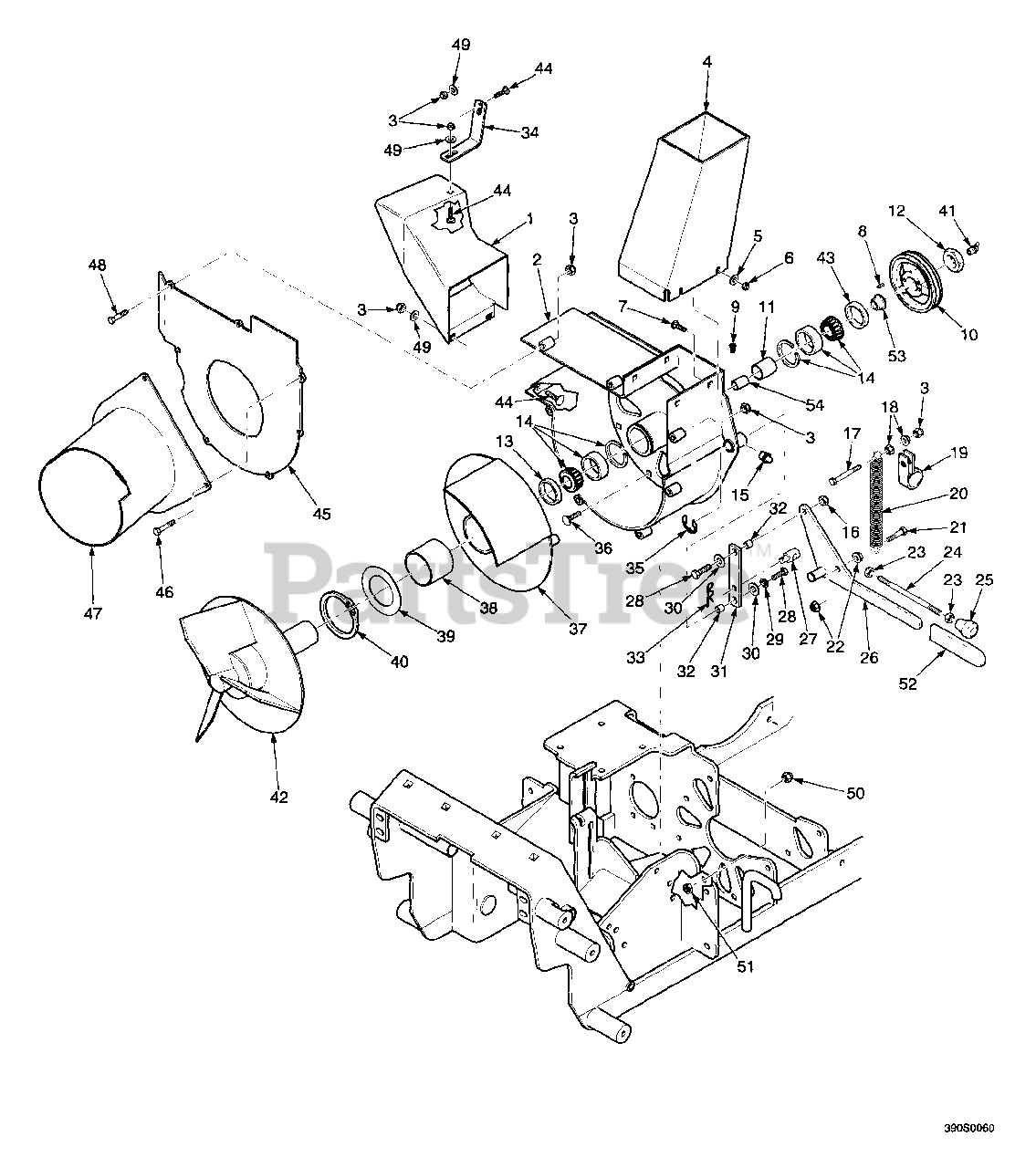

Blower Assembly Parts Diagram

  • Title

1

Scag 46955

Chute, Side Discharge
(Superseded to 46971)

$

$

Not available

2

Scag 45871

Housing, Blower

$

$

Not available

3

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

4

Scag 45819

Outlet, Blower

$

$

Not available

5

Scag 04040-03

Flatwasher, 1/4 (.281 x .625 .065)

$0.99

$

In Stock, Qty 8

0

6

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 9

0

7

Scag 04003-02

Carriage Bolt, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04063-21

Key, 1/4 x .875 Woodruff

$1.49

$

Usually ships in 2-12 days

0

9

Scag 48677

Relief Fitting

$

$

Not available

10

Scag 481468

Pulley, 5.25 OD

$94.99

$

Usually ships in 2-12 days

0

11

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

12

Scag 481106

Nut, 1-1/16-18 L.H.

$59.99

$

Usually ships in 2-12 days

0

13

Scag 481024

Seal, 2.00 OD x 1.50 Bore

$4.99

$

In Stock, Qty 20+

0

14

Scag 481022

Roller Bearing Assembly

$59.99

$

In Stock, Qty 20+

0

15

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

16

Scag 04021-05

Hex Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-53

Bolt, Hex Head, 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

18

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 48030-10

Clamp

$0.99

$

Usually ships in 2-12 days

0

20

Scag 481343

Spring

$27.99

$

Usually ships in 2-12 days

0

21

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04020-04

Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04004-30

Stud, 3/8-16 x 9.00"

$6.99

$

Usually ships in 2-12 days

0

25

Scag 48092

Knob, Shifter

$5.99

$

Usually ships in 2-12 days

0

26

Scag 45804

Lever, Blower Gate

$

$

Not available

27

Scag 43410

Joint, Swivel

$

$

Not available

28

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1.0"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

31

Scag 422086

Link, Blower Gate

$

$

Not available

32

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

33

Scag 04062-02

Hairpin, Cotter, .080 x 1.19"

$0.99

$

In Stock, Qty 20+

0

34

Scag 422169

Mounting Bracket, Discharge Chute

$

$

Not available

35

Scag 04050-01

Retaining Ring, .625 "E"

$0.99

$

In Stock, Qty 20+

0

36

Scag 04003-22

Carriage Bolt, 3/8-16 x 1-1/4"

$1.99

$

In Stock, Qty 7

0

37

Scag 45825

Gate

$207.99

$

Usually ships in 2-12 days

0

38

Scag 48100-12

Bushing, Oilite, 2.505 ID

$20.99

$

Usually ships in 2-12 days

0

39

Scag 421665

Washer, Gate Retainer

$9.99

$

Usually ships in 2-12 days

0

40

Scag 04050-15

Retaining ring, 2.50 Ext

$5.49

$

Usually ships in 2-12 days

0

41

Scag 48114-09

Grease Fitting 65ø

$4.99

$

Usually ships in 2-12 days

0

42

Scag 45886

Fan, Blower

$

$

Not available

43

Scag 481025

Seal, 2.00 OD x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

44

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

45

Scag 422287

Front, Blower Housing

$

$

Not available

46

Scag 04001-11

Bolt, Hex Head, 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

47

Scag 45884

Adapter, Blower Inlet

$

$

Not available

48

Scag 04001-11

Bolt, Hex Head, 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

49

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

50

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

51

Scag 04020-12

Nut, Jam, 3/8-16

$0.99

$

In Stock, only 3 left!

0

52

Scag 481428

Grip

$4.49

$

Usually ships in 2-12 days

0

53

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 4 left!

0

54

Scag 43296

Spacer, Inside

$8.49

$

In Stock, Qty 12

0
