STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 60000 - 69999) PARKING BRAKE AND DUMP VALVE LINKAGES Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

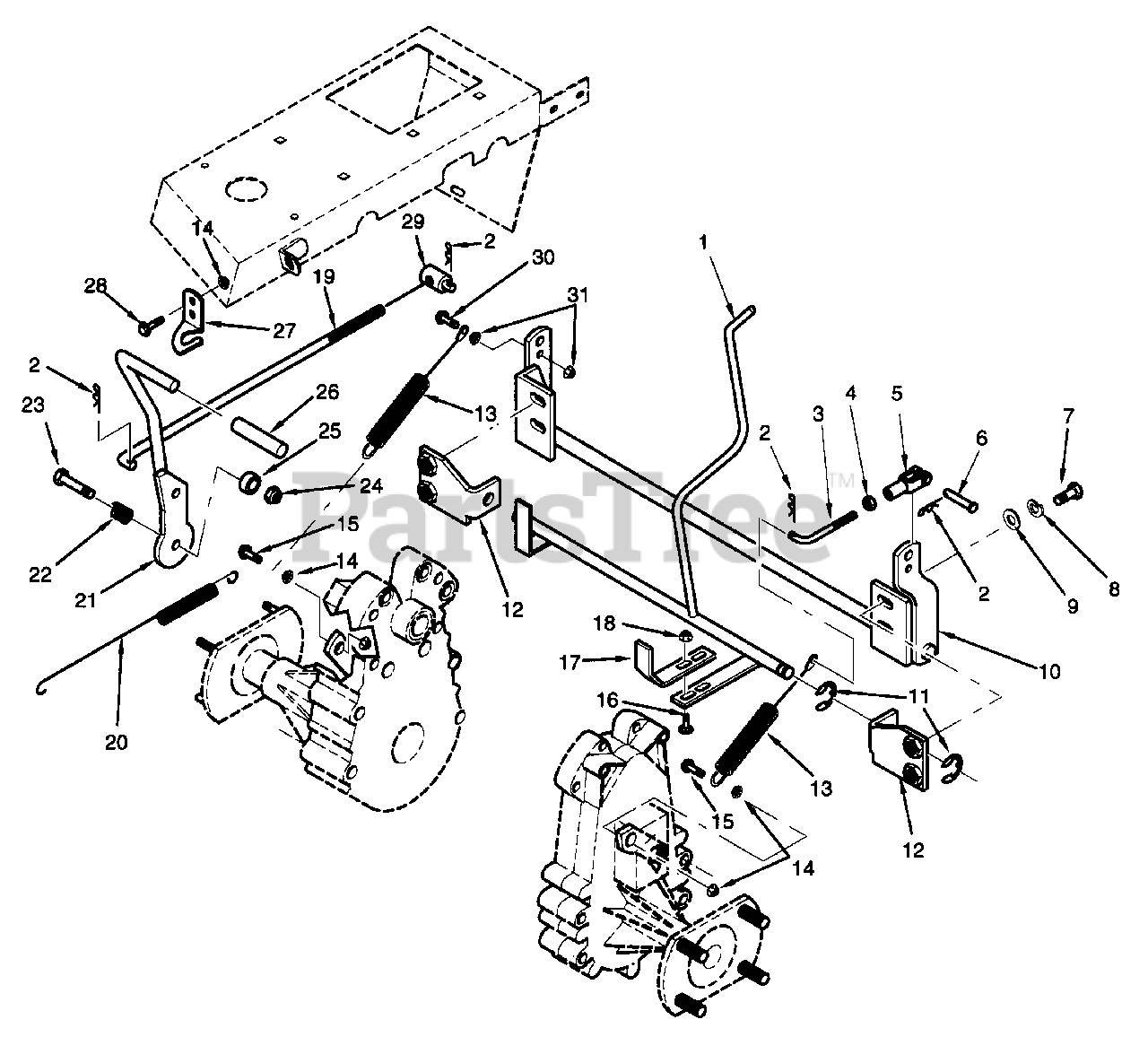

PARKING BRAKE AND DUMP VALVE LINKAGES Parts Diagram

  • Title
1

Scag 45808

LEVER, DUMP VALVE

$

$

Not available

2

Scag 04062-02

HAIRPIN

$0.99

$

In Stock, Qty 20+

0

3

Scag 44116

ROD, BRAKE - L.H.

$

$

Not available

4

Scag 04020-22

HEX NUT, 1/4-28

$

$

Currently unavailable

5

Scag 48343-03

CLEVIS

$

$

Not available

6

Scag 04064-12

PIN, CLEVIS, 1/4 X 3/4

$

$

Currently unavailable

7

Scag 04001-20

BOLT, HEX HEAD, 3/8-16 X 1-1/2

$0.99

$

In Stock, Qty 20+

0

8

Scag 04030-04

LOCKWASHER, 3/8

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 45805

ACTUATOR, BRAKE

$

$

Not available

11

Scag 04050-10

RING, RETAINER

$0.99

$

In Stock, only 4 left!

0

12

Scag 45841

MOUNTING BRACKET, DUMP VALVE

$

$

Not available

13

Scag 48840

CABLE ASSEMBLY, PARKING BRAKE
(Superseded to 485431)

$97.99

$

Usually ships in 2-12 days

0

14

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 04017-17

SERR. FL. HEX HEAD CPSCR, 5/16-18 X 1.00

$0.99

$

Usually ships in 2-12 days

0

16

Scag 04003-02

CARRIAGE BOLT, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

17

Scag 422183

BRACKET, DUMP VALVE LEVER

$

$

Not available

18

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

19

Scag 44117

ROD, BRAKE - R.H.

$6.99

$

Usually ships in 2-12 days

0

20

Scag 48950

SPRING

$

$

Not available

21

Scag 45806

LEVER, PARKING BRAKE

$

$

Not available

22

Scag 48050

SPRING, CONTROL DETENT

$

$

Not available

23

Scag 04001-46

BOLT, HEX HEAD, 3/8-16 X 2-1/4

$0.99

$

In Stock, Qty 20+

0

24

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 43063

SPACER

$7.99

$

In Stock, only 2 left!

0

26

Scag 481365

GRIP, PARKING BRAKE LEVER

$4.99

$

Usually ships in 2-12 days

0

27

Scag 422084

LATCH, BRAKE LEVER

$

$

Currently unavailable

28

Scag 04017-16

SERR. FL. HEX HEAD CPSCRW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

29

Scag 43032

SWIVEL JOINT

$6.49

$

In Stock, Qty 17

0

30

Scag 04001-59

BOLT, HEX HEAD, 1/4-20 X 1-1/4

$0.99

$

In Stock, Qty 15

0

31

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0
