STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 60000 - 69999) HYDRAULIC PUMP Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

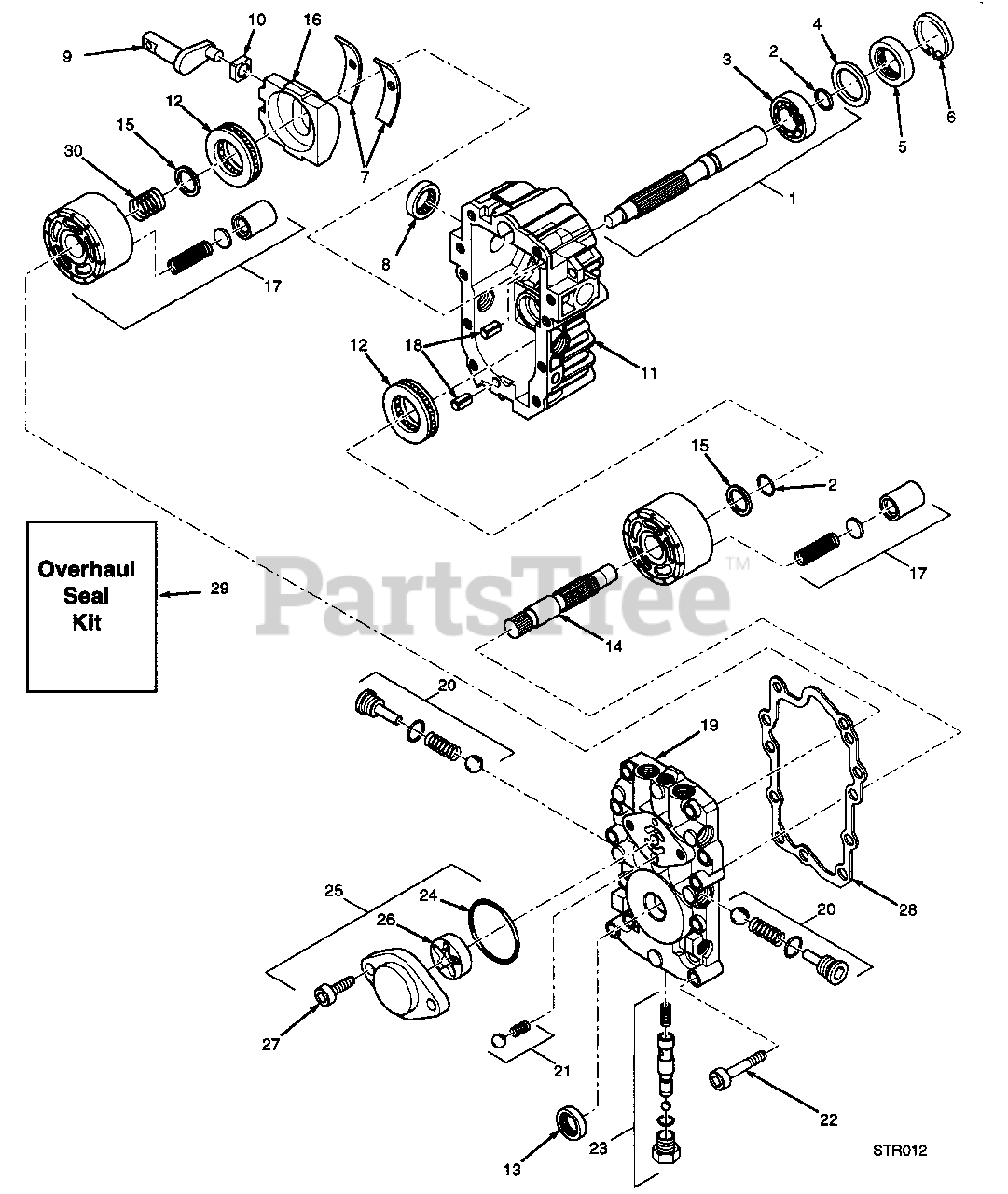

HYDRAULIC PUMP Parts Diagram

  • Title

Scag 481225

PUMP, L.H.(INCLUDES ITEMS 1 THRU 30)

$1157.99

$

Usually ships in 2-12 days

0

Scag 481226

PUMP, R.H.(INCLUDES ITEMS 1 THRU 30)

$1157.99

$

Usually ships in 2-12 days

0

1

PUMP SHAFT KIT

$

$

Not available

2

WIRE RETAINING RING

$

$

Not available

3

BALL BEARING

$

$

Not available

4

SPACER

$

$

Not available

5

LIP SEAL(16 X 35 X 7)

$

$

Not available

6

RETAINING RING

$

$

Not available

7

CRADLE BEARING

$

$

Not available

8

LIP SEAL(12 X 35 X 7)

$

$

Not available

9

TRUNNION ARM

$

$

Not available

10

SLOT GUIDE

$

$

Not available

11

TRANSMISSION HOUSING KIT(L.H.)

$

$

Not available

11

TRANSMISSION HOUSING KIT(R.H.)

$

$

Not available

12

THRUST BALL BEARING ASSEMBLY

$

$

Not available

13

LIP SEAL(15 X 24 X 7)

$

$

Not available

14

MOTOR SHAFT

$

$

Not available

15

BLOCK THRUST WASHER

$

$

Not available

16

VARIABLE SWASH PLATE

$

$

Not available

17

BDT-10L BLOCK ASSEMBLY

$

$

Not available

18

PIN ST HOLDER

$

$

Not available

19

CENTER SECTION KIT

$

$

Not available

20

CHECK VALVE KIT

$

$

Not available

21

CHARGE RELIEF KIT

$

$

Not available

22

SOCKET HEAD CAPSCREW

$

$

Not available

23

BYPASS VALVE KIT

$

$

Not available

24

O-RING

$

$

Not available

25

CHARGE PUMP COVER

$

$

Not available

26

GEROTOR ASSEMBLY

$

$

Not available

27

CAPSCREW(6MM X 20)

$

$

Not available

28

CENTER SECTION GASKET

$

$

Not available

29

OVERHAUL SEAL KIT

$

$

Not available

30

SPRING BLOCK

$

$

Not available
