STR-20CH - Scag Turf Runner Riding Mower, 20hp Kohler (SN: 60000 - 69999) BLOWER ASSEMBLY Parts Diagram

Turf Runner Riding Mower, 20hp Kohler

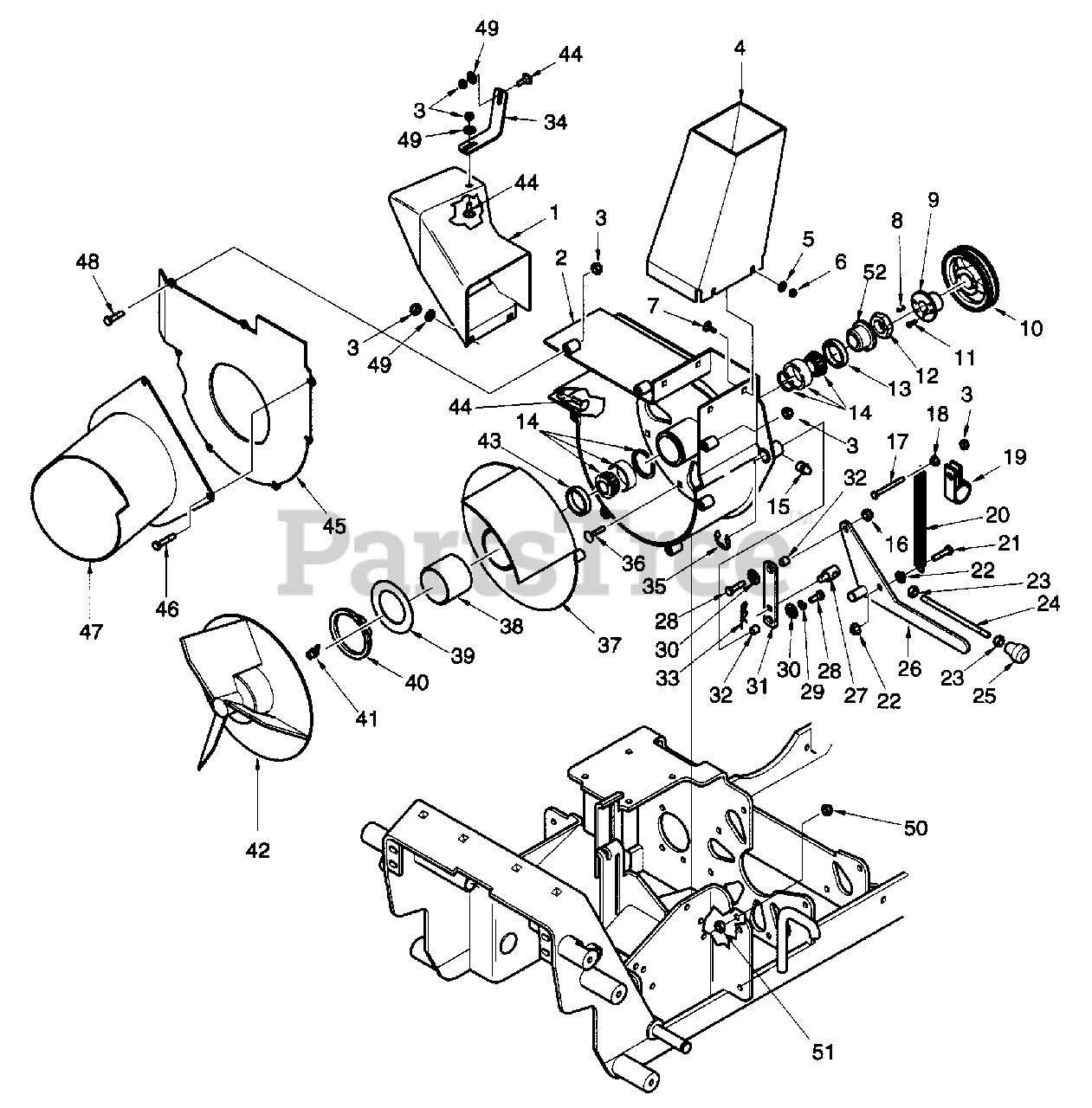

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Scag 46895

CHUTE, SIDE DISCHARGE
(Superseded to 46971)

$

$

Not available

2

Scag 45826

HOUSING, BLOWER
(Superseded to 46960)

$1253.99

$

Usually ships in 2-12 days

0

3

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

4

Scag 45819

OUTLET, BLOWER

$

$

Not available

5

Scag 04040-03

FLATWASHER, 1/4(.281 X .625 X .065)

$0.99

$

In Stock, Qty 8

0

6

Scag 04021-08

HEX LOCKNUT, ELASTIC STOP, 1/4-20

$0.99

$

In Stock, Qty 10

0

7

Scag 04003-02

CARRIAGE BOLT, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

8

Scag 04063-01

KEY, 1/4 X 1/4 X 1-1/4

$1.49

$

In Stock, only 4 left!

0

9

Scag 48141

HUB, TAPERED, 1.00 BORE

$30.99

$

In Stock, only 1 left!

0

10

Scag 481222

PULLEY, 5.25 OD

$92.99

$

Usually ships in 2-12 days

0

11

Scag 04001-109

BOLT, HEX HEAD, 1/4-20 X 1-3/8

$2.49

$

In Stock, only 2 left!

0

12

Scag 481106

NUT, 1-1/16-18 L.H.

$61.99

$

Usually ships in 2-12 days

0

13

Scag 481024

SEAL, 2.00 OD X 1.50 BORE

$4.99

$

In Stock, Qty 20+

0

14

Scag 481022

ROLLER BEARING ASSEMBLY

$61.99

$

In Stock, Qty 15

0

15

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 9

0

16

Scag 04021-05

HEX LOCKNUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-53

BOLT, HEX HEAD, 5/16-18 X 2-1/2

$0.99

$

In Stock, Qty 13

0

18

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 48030-10

CLAMP

$0.99

$

Usually ships in 2-12 days

0

20

Scag 481343

SPRING

$28.99

$

Usually ships in 2-12 days

0

21

Scag 04001-20

BOLT, HEX HEAD, 3/8-16 X 1-1/2

$0.99

$

In Stock, Qty 20+

0

22

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04020-04

HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04004-30

STUD, 3/8-16 X 9.00

$6.99

$

Usually ships in 2-12 days

0

25

Scag 48092

KNOB, SHIFTER

$5.99

$

Usually ships in 2-12 days

0

26

Scag 45804

LEVER, BLOWER GATE

$81.99

$

Usually ships in 2-12 days

0

27

Scag 43410

JOINT, SWIVEL

$

$

Not available

28

Scag 04001-19

BOLT, HEX HEAD, 3/8-16 X 1.0

$0.99

$

In Stock, Qty 7

0

29

Scag 04030-04

LOCKWASHER, 3/8

$0.99

$

In Stock, Qty 8

0

30

Scag 04040-05

FLATWASHER, 3/8(.406 X .812 X .065)

$0.99

$

In Stock, only 4 left!

0

31

Scag 422086

LINK, BLOWER GATE

$13.99

$

Usually ships in 2-12 days

0

32

Scag 43212

SLEEVE

$4.49

$

In Stock, Qty 5

0

33

Scag 04062-02

HAIRPIN, COTTER, .080 X 1.19

$0.99

$

In Stock, Qty 20+

0

34

Scag 422169

MOUNTING BRACKET, DISCHARGE CHUTE

$

$

Not available

35

Scag 04050-01

RETAINING RING, .625 "E"

$0.99

$

In Stock, Qty 20+

0

36

Scag 04003-22

CARRIAGE BOLT, 3/8-16 X 1-1/4

$1.99

$

In Stock, Qty 7

0

37

Scag 45825

GATE

$212.99

$

Usually ships in 2-12 days

0

38

Scag 48100-12

BUSHING, OILITE, 2.505 ID

$21.99

$

Usually ships in 2-12 days

0

39

Scag 421665

WASHER, GATE RETAINER

$10.99

$

Usually ships in 2-12 days

0

40

Scag 04050-15

RETAINING RING, 2.50 EXT

$5.49

$

Usually ships in 2-12 days

0

41

Scag 48114-09

GREASE FITTING, 65DEG

$5.49

$

Usually ships in 2-12 days

0

42

Scag 45683

FAN, BLOWER
(Superseded to 46960)

$1253.99

$

Usually ships in 2-12 days

0

43

Scag 481025

SEAL, 2.00 OD X 1.625 BORE

$4.99

$

In Stock, Qty 20+

0

44

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

45

Scag 422165

FRONT, BLOWER HOUSING
(Superseded to 422287)

$53.99

$

Usually ships in 2-12 days

0

46

Scag 04001-11

BOLT, HEX HEAD, 5/16-18 X 1-1/2

$0.99

$

In Stock, Qty 6

0

47

Scag 45807

ADAPTER, BLOWER INLET
(Superseded to 45884)

$80.99

$

Usually ships in 2-12 days

0

48

Scag 04001-11

BOLT, HEX HEAD, 5/16-18 X 1-1/2

$0.99

$

In Stock, Qty 6

0

49

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

50

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

51

Scag 04020-12

NUT, JAM, 3/8-16

$0.99

$

In Stock, only 3 left!

0

52

Scag 43297

BUSHING

$9.99

$

In Stock, only 2 left!

0
