STHM-23CV - Scag Three-Wheel Riding Mower, 23hp Kohler (SN: C5300001 - C5399999) Rider Frame Assembly Parts Diagram

Three-Wheel Riding Mower, 23hp Kohler

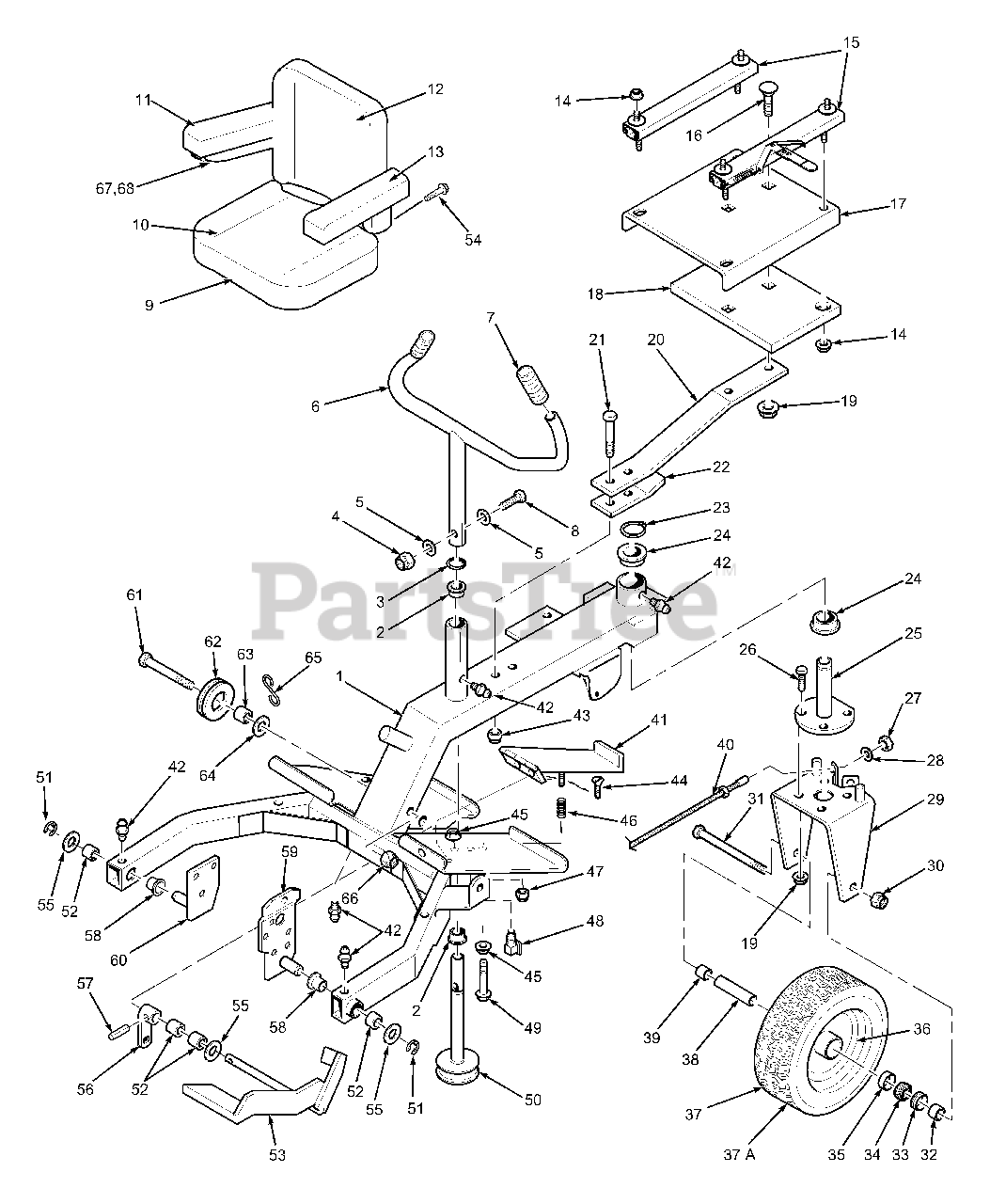

Rider Frame Assembly Parts Diagram

  • Title

1

Scag 46715

Steering Frame

Note: (Includes Bshgs and Fittings)

$1472.99

$

Usually ships in 2-12 days

0

2

Scag 48100-01

Bronze Bushing, 7/8 ID x 1.0 Flanged

$2.99

$

In Stock, Qty 5

0

3

Scag 04050-03

Retaining Ring, 7/8 external

$0.99

$

In Stock, Qty 5

0

4

Scag 04021-10

Hex Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

5

Scag 04040-15

Flat Washer, 5/16 (3/8 x 7/8 x 13 ga.)

$0.99

$

In Stock, Qty 20+

0

6

Scag 46029

Steering Handle

Note: (Includes item 7)

$138.99

$

Usually ships in 2-12 days

0

7

Scag 48159

Grip

$3.49

$

In Stock, Qty 8

0

8

Scag 04001-12

Bolt, Hex Hd., 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 482119

Seat Assy.

Note: (Includes items 10 thru 13,54)

$692.99

$

Usually ships in 2-12 days

0

10

Scag 482111

Cushion Assembly

$270.99

$

Usually ships in 2-12 days

0

11

Scag 482108

Arm Pad - R.H.

$49.99

$

In Stock, only 1 left!

0

12

Scag 482105

Seat Back Cushion
(Superseded to 484716)

$191.99

$

Usually ships in 2-12 days

0

13

Scag 482107

Arm Pad - L.H.

$49.99

$

In Stock, only 1 left!

0

14

Scag 04019-03

Serr. Fl. HH. Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 46570

Seat Adjuster Track

$212.99

$

Usually ships in 2-12 days

0

16

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 18

0

Scag 04003-03

Bolt, RDHD Carr. 3/8-16 x 2.0" (72")

$1.49

$

In Stock, Qty 5

0

17

Scag 421342

Seat Plate

$87.99

$

Usually ships in 2-12 days

0

18

Scag 42482

Ballast, Seat Mount

$256.99

$

Usually ships in 2-12 days

0

19

Scag 04019-04

Serr Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 42026

Seat Spring

$73.99

$

Usually ships in 2-12 days

0

21

Scag 04001-83

Bolt, Hex Hd., 7-16-14 x 3-1/2"

$2.49

$

In Stock, only 1 left!

0

22

Scag 42366

Reinforcement, Seat Spring

$50.99

$

Usually ships in 2-12 days

0

23

Scag 04050-05

Retaining Ring, 1-1/8" external

$0.99

$

In Stock, Qty 20+

0

24

Scag 48100-02

Bushing, Oilite - 1-1/8 ID x 1.0 Flanged

$3.99

$

In Stock, only 2 left!

0

25

Scag 45008

Rear Wheel Pivot

$144.99

$

Usually ships in 2-12 days

0

26

Scag 04001-32

Bolt, Hex Hd., 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

27

Hex Jam Nut, 3/8-24

$

$

Not available

28

Lock Washer, 3/8 Internal Tooth

$

$

Not available

29

Scag 45035

Rear Wheel Yoke

$184.99

$

Usually ships in 2-12 days

0

30

Scag 04021-13

Hex Elastic Stop Nut, 5/8-11

$1.49

$

In Stock, Qty 20+

0

31

Scag 04001-40

Bolt, Hex Hd. 5/8-11 x 9"

$81.99

$

Usually ships in 2-12 days

0

32

Scag 43020-01

Spacer, Rear Wheel, short

$44.99

$

Usually ships in 2-12 days

0

33

Scag 481897

Seal, Grease

$9.49

$

In Stock, only 1 left!

0

34

Scag 481896

Bearing Cone

$22.99

$

In Stock, only 1 left!

0

35

Scag 481895

Bearing Cup

$19.99

$

Usually ships in 2-12 days

0

36

Scag 481894

Rim Only

$312.99

$

In Stock, only 1 left!

0

37

Scag 48005

Rear Wheel Assy.

Note: (Includes items 33-36, 37A)

$380.99

$

Usually ships in 2-12 days

0

37A

Scag 481893

Tire Only

$222.99

$

Usually ships in 2-12 days

0

38

Scag 43021

Sleeve, Rear Wheel

$50.99

$

Usually ships in 2-12 days

0

39

Scag 43020-02

Spacer, Rear Wheel

$26.99

$

Usually ships in 2-12 days

0

40

Scag 48828

Cable, Steering

Note: (Includes Hardware)

$142.99

$

In Stock, only 1 left!

0

41

Scag 45606

Pedal, Foot Safety Switch

$145.99

$

Usually ships in 2-12 days

0

42

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

43

Scag 04021-11

Hex Elastic Stop Nut, 7/16-14

$0.99

$

In Stock, Qty 10

0

44

Scag 04010-17

Screw, Phillips flat hd #10-32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

46

Scag 481056

Spring, Foot Safety Switch

$30.99

$

Usually ships in 2-12 days

0

47

Scag 04021-08

Hex Nut, Elastic Stop Lock, 1/4-20

$0.99

$

In Stock, Qty 10

0

48

Scag 481476

Switch, Foot Safety

$58.99

$

Usually ships in 2-12 days

0

49

Scag 04001-02

Bolt, Hex Hd., 1/4-20 x 1-3/4"

$0.99

$

Usually ships in 2-12 days

0

50

Scag 45009

Steering Shaft

$210.99

$

Usually ships in 2-12 days

0

51

Scag 04050-02

Retaining Ring 3/4 Ext. "E"

$0.99

$

In Stock, Qty 7

0

52

Scag 48100-06

Bushing, Oilite - 3/4 ID x 1.0

$1.49

$

In Stock, only 1 left!

0

53

Scag 45502

Foot Pedal

$123.99

$

Usually ships in 2-12 days

0

54

Scag 04010-22

Screw w/washer, 1/4-20 x .75"

$3.49

$

Usually ships in 2-12 days

0

55

Scag 04041-08

Flat Washer, 3/4 x 1-1/4 x 16 Ga.

$0.99

$

In Stock, Qty 20+

0

56

Scag 45506

Foot Pedal Arm

$45.99

$

Usually ships in 2-12 days

0

57

Scag 04065-01

Pin, Drive Lock 3/16 x 1-1/4"

$2.49

$

Usually ships in 2-12 days

0

58

Scag 48100-03

Bushing, Oilite - 3/4 x .50 Flanged

$2.99

$

Usually ships in 2-12 days

0

59

Scag 45488

Sulky Mtg. Brkt. L.H.

$102.99

$

Usually ships in 2-12 days

0

60

Scag 45256

Sulky Mtg. Brkt. R.H.

$52.99

$

Usually ships in 2-12 days

0

61

Scag 04001-37

Bolt, Hex Hd., 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 15

0

62

Scag 48208

Pulley, Winch Cable

$75.99

$

Usually ships in 2-12 days

0

63

Scag 48100-04

Bushing, Oillube - 1/2 ID x .56

$0.99

$

In Stock, only 4 left!

0

64

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

65

Scag 44028

Retainer, Winch Cable

$6.99

$

Usually ships in 2-12 days

0

66

Scag 04021-07

Hex Elastic Stop Nut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

67

Scag 482109

Arm Rest Bracket, Left Hand
(Superseded to 483547)

$114.99

$

Usually ships in 2-12 days

0

68

Scag 482110

Arm Rest Bracket, Right Hand
(Superseded to 483548)

$132.99

$

In Stock, only 1 left!

0
