STHM-23CV - Scag Three-Wheel Riding Mower, 23hp Kohler (SN: C5300001 - C5399999) Brake Linkage Parts Diagram

Three-Wheel Riding Mower, 23hp Kohler

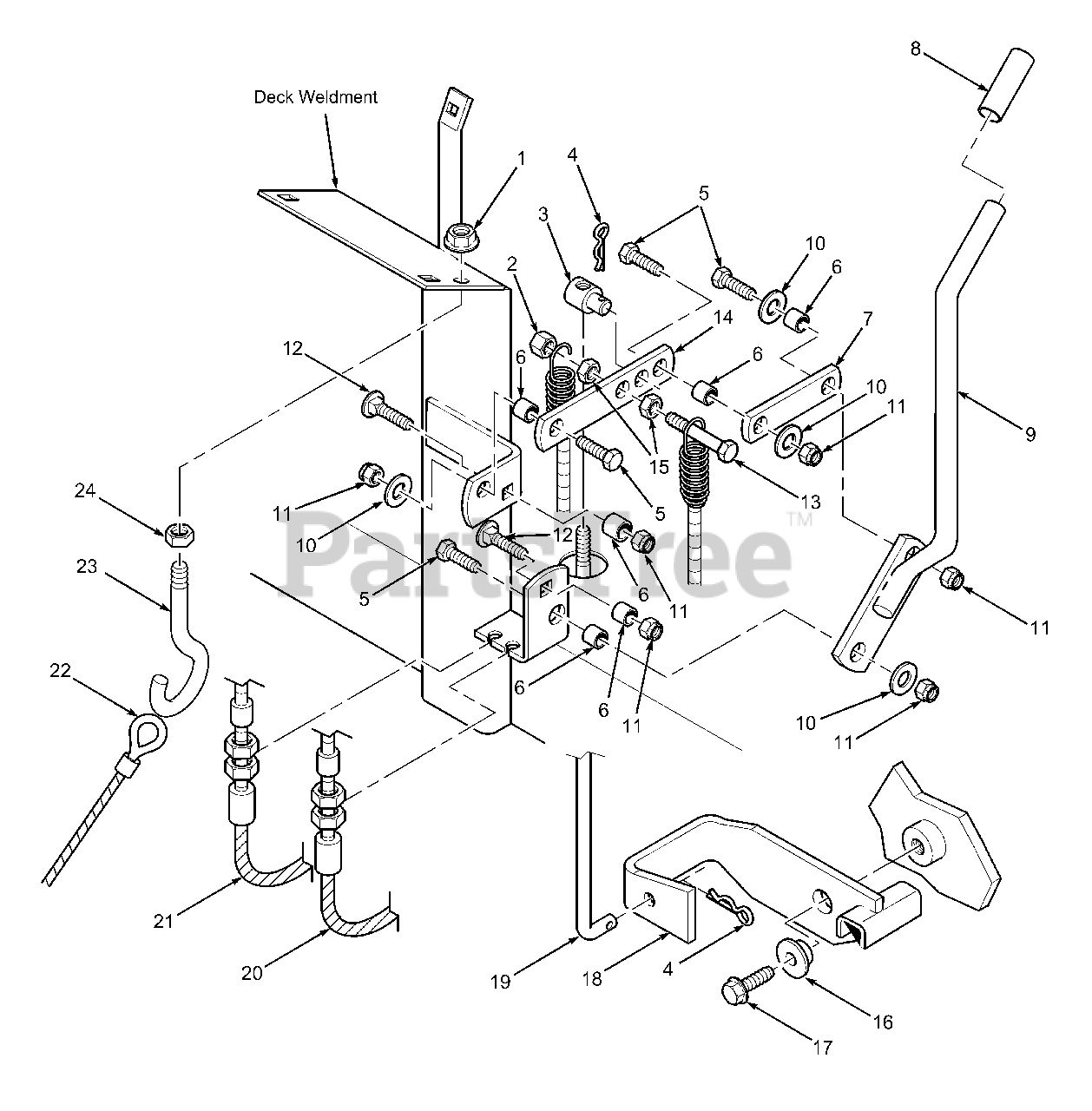

Brake Linkage Parts Diagram

  • Title

1

Scag 04019-04

Serr. Fl. HH Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 04021-05

Hex Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 43032

Swivel

$6.49

$

In Stock, Qty 17

0

4

Scag 04062-01

Hairpin Cotter (.094 x 1.62)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-32

Hex Head Bolt, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

6

Scag 43212

Sleeve, Hydro Linkage

$4.49

$

In Stock, Qty 5

0

7

Scag 421338

Link, Cam

$92.99

$

Usually ships in 2-12 days

0

8

Scag 48342

Grip, Parking Brake

$2.49

$

Usually ships in 2-12 days

0

9

Scag 45504

Handle, Parking Brake

$49.99

$

Usually ships in 2-12 days

0

10

Scag 04041-07

Flat Washer, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04021-09

Hex Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-11

Carriage Bolt, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

13

Scag 04001-21

Hex Head Bolt, 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 421339

Lever, Brake

$16.99

$

Usually ships in 2-12 days

0

15

Scag 04020-12

Hex Jam Nut, 3/8-16

$0.99

$

In Stock, only 3 left!

0

16

Scag 43260

Washer, Neutral Lock

$9.99

$

Usually ships in 2-12 days

0

17

Scag 04017-27

Serr. Fl. HH CPSCR, 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

18

Scag 45647

Bracket, Neutral Lock

$182.99

$

Usually ships in 2-12 days

0

19

Scag 44085

Rod, Neutral Lock

$

$

Not available

20

Scag 48881

Cable Assembly, Parking Brake R.H.

$84.99

$

Usually ships in 2-12 days

0

21

Scag 48880

Cable Assembly, Parking Brake L.H.

$87.99

$

Usually ships in 2-12 days

0

22

Scag 48045

Cable Winch

$202.99

$

Usually ships in 2-12 days

0

23

Scag 04070-03

Eye Bolt, 3/8-16 R.H.

$38.99

$

Usually ships in 2-12 days

0

24

Scag 04020-04

Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0
