STHM-23CV - Scag Three-Wheel Riding Mower, 23hp Kohler (SN: B2600001 - B3699999) Upper Hydraulics Parts Diagram

Three-Wheel Riding Mower, 23hp Kohler

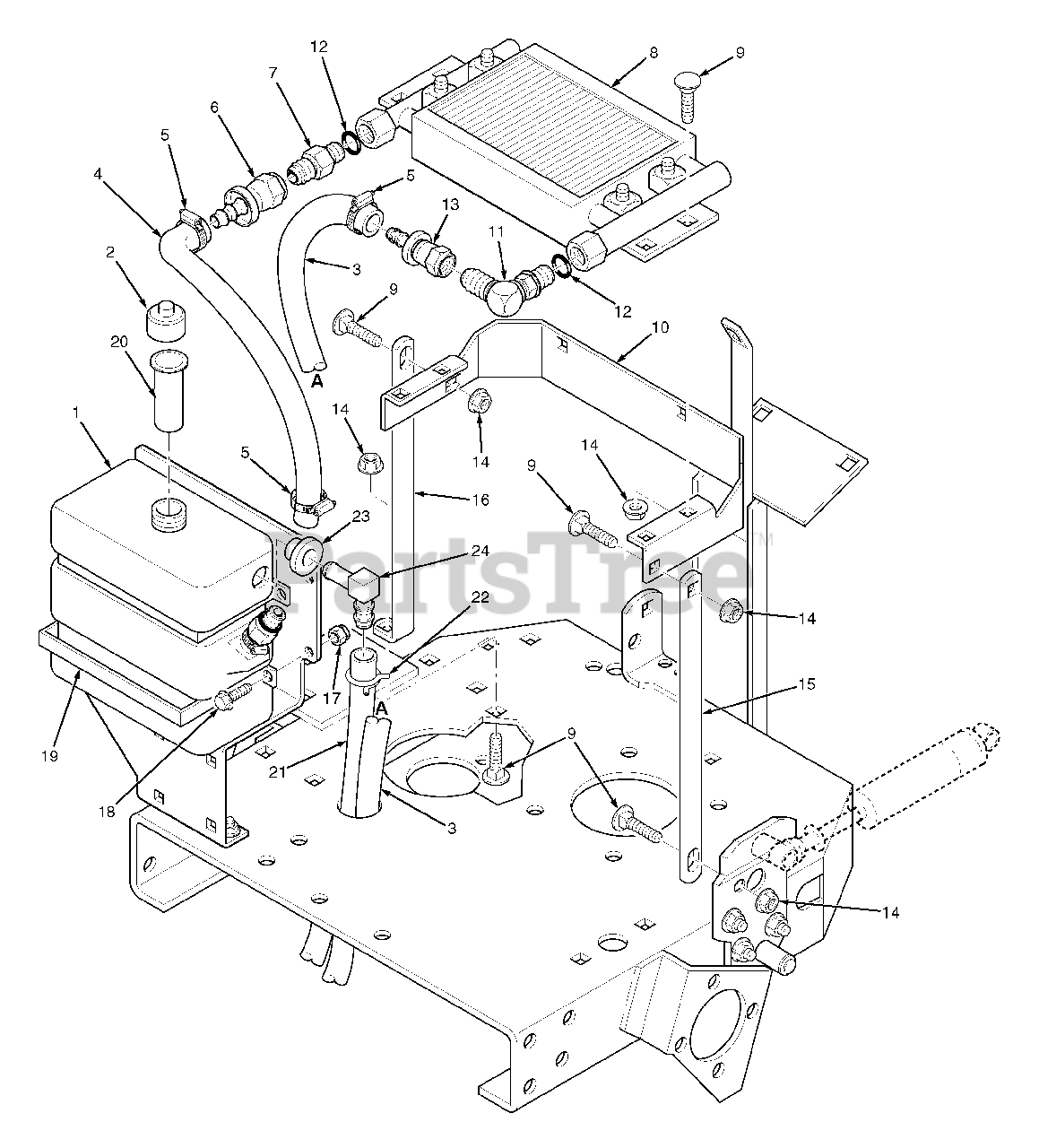

Upper Hydraulics Parts Diagram

  • Title

1

Scag 48711

Tank, Hydraulic

$377.99

$

Usually ships in 2-12 days

0

2

Scag 481164

Cap, Hydraulic Tank

$17.99

$

In Stock, Qty 8

0

3

Scag 48634

Hose, Pump to Oil Cooler

$47.99

$

Usually ships in 2-12 days

0

4

Scag 48942

Hose, Oil Cooler to Tank

$27.99

$

Usually ships in 2-12 days

0

5

Scag 48136-04

Clamp, Hose

$8.49

$

Usually ships in 2-12 days

0

6

Scag 48936-01

Coupling, Flare Swivel

$33.99

$

Usually ships in 2-12 days

0

7

Scag 48572-05

Tube, Union

$

$

Not available

8

Scag 48645

Oil Cooler Assembly

$

$

Not available

9

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

10

Scag 421279

Bracket, Oil Cooler

$83.99

$

Usually ships in 2-12 days

0

11

Scag 48350-05

Elbow, 90 Degrees

$32.99

$

Usually ships in 2-12 days

0

12

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

13

Scag 48936-02

Coupling Flare Swivel

$15.99

$

Usually ships in 2-12 days

0

14

Scag 04019-03

Serr. Fl. Hex Head Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 421280

Brace, L.H. Cooler Support

$28.99

$

Usually ships in 2-12 days

0

16

Scag 421281

Brace, R.H. Cooler Support

$16.99

$

Usually ships in 2-12 days

0

17

Scag 04021-08

Elastic Stop Nut, 1/4-20

$0.99

$

In Stock, Qty 9

0

18

Scag 04017-05

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 421288

Strap, Oil Tank

$25.99

$

Usually ships in 2-12 days

0

20

Scag 481507

Filler Neck Insert

$12.99

$

Usually ships in 2-12 days

0

21

Scag 48482

Hose, 1/4" Pushlock, Order by the inch

$0.99

$

In Stock, Qty 20+

0

22

Scag 48059-01

Clamp

$0.99

$

In Stock, Qty 7

0

23

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

24

Scag 48939

90 Degree Elbow
(Superseded to 483748)

$8.99

$

In Stock, only 2 left!

0
