STHM-23CV - Scag Three-Wheel Riding Mower, 23hp Kohler (SN: 8270001 - 8279999) Instrument Panel And Electrical Components Parts Diagram

Three-Wheel Riding Mower, 23hp Kohler

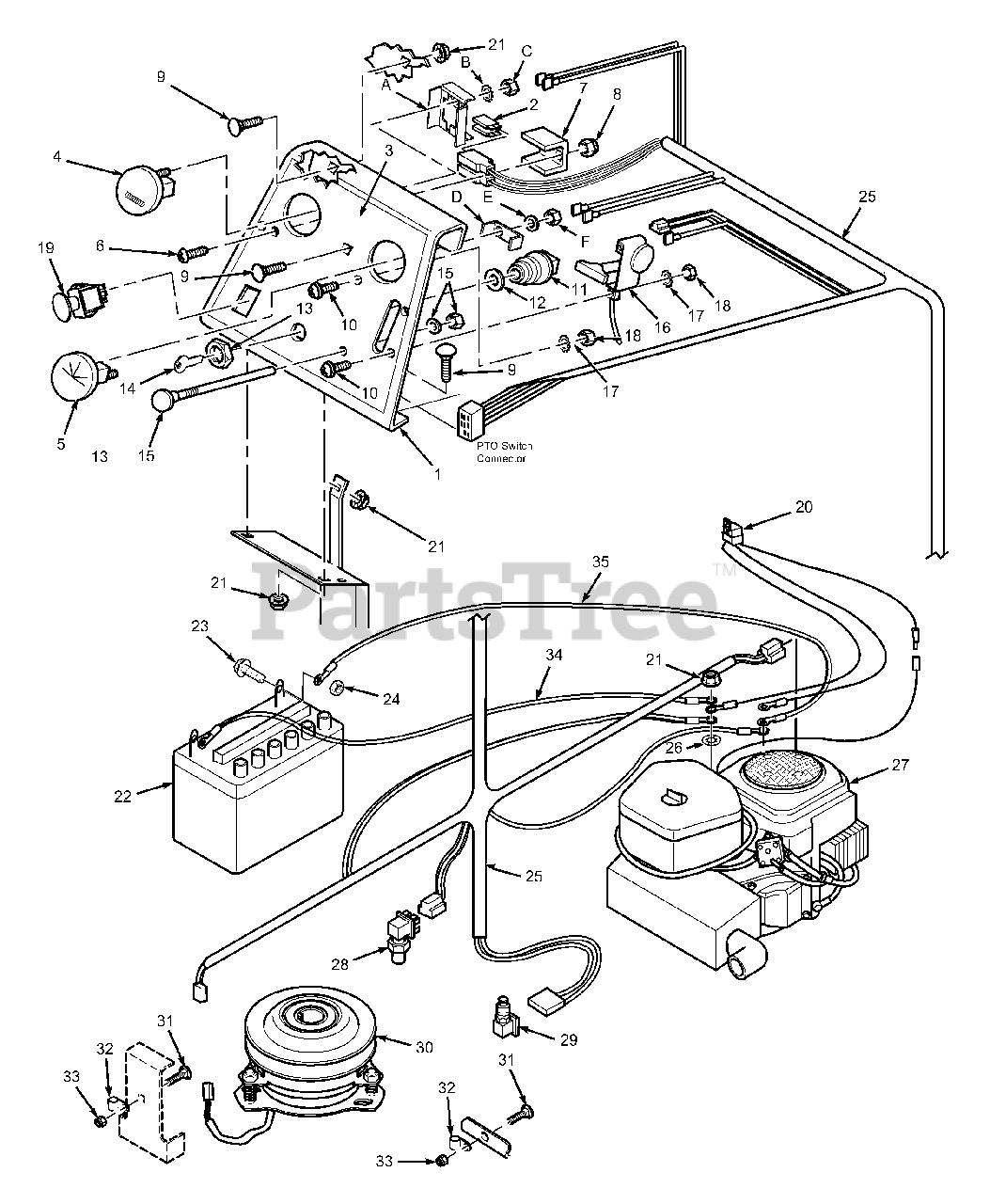

Instrument Panel And Electrical Components Parts Diagram

  • Title

1

Scag 461360

Instrument Panel

Note: (includes Decal)

$

$

Not available

2

Scag 48298

Blade Fuse, 20 amp.

$3.99

$

Usually ships in 2-12 days

0

3

Scag 482289

Decal, Instrument Panel
(Superseded to 483442)

$41.99

$

Usually ships in 2-12 days

0

4

Scag 48023

Hour Meter

Note: (includes Bracket and Hardware A, B, C)

$157.99

$

Usually ships in 2-12 days

0

A

Hour Meter Bracket

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

B

Lockwasher, #10 Ext. Tooth

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

C

Hex Nut, 10-24

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

5

Scag 481755

Ammeter
(Superseded to 487596)

Note: (includes Bracket and Hardware D, E, F)

$64.99

$

Usually ships in 2-12 days

0

D

Ammeter Bracket

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

E

Lockwasher, #10 Int. Tooth

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

F

Hex Nut, #10-32

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

6

Scag 04010-11

Phillips Rd. Head Screw, #10-32 x 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

7

Scag 42413

Bracket, Fuse Holder

$40.99

$

Usually ships in 2-12 days

0

8

Scag 04021-01

Elastic Stop Nut, #10-32

$0.99

$

In Stock, Qty 10

0

9

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04010-01

Phillips Washer Head Screw, #10-32 x .50"

$0.99

$

In Stock, Qty 20+

0

11

Scag 48798

Keyswitch

$27.99

$

In Stock, Qty 20+

0

12

Lockwasher, 5/8 Int. Tooth

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

13

Nut, Special 5/8-32

Note: Common hardware should be purchased locally. All bolts are grade 5 plated; all other fasteners are zinc plated.

$

$

Not available

14

Scag 48017-02

Ignition Key and Ring Assy.

$3.99

$

In Stock, Qty 9

0

15

Scag 482315

Choke Control

Note: (includes hardware)

$30.99

$

Usually ships in 2-12 days

0

16

Scag 48879

Throttle Control

$60.99

$

Usually ships in 2-12 days

0

17

Scag 04031-01

Lockwasher, #10 Ext. Tooth

$0.99

$

In Stock, Qty 20+

0

18

Scag 04020-01

Hex Nut, #10-32

$8.99

$

In Stock, Qty 20+

0

19

Scag 481687

Switch, PTO
(Superseded to 483957)

$37.99

$

In Stock, Qty 20+

0

20

Scag 481275

Wire Harness With Relay

$33.99

$

In Stock, only 1 left!

0

21

Scag 04019-03

Serr. Fl. HH Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 482700

Battery

Note: (Not sold through Scag)

$

$

Currently unavailable

23

Scag 04001-44

Bolt, Hex head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

24

Scag 04020-02

Hex Nut 1/4-20

$0.99

$

In Stock, Qty 10

0

25

Scag 481683

Wire Harness, STHM
(Superseded to 484077)

$216.99

$

Usually ships in 2-12 days

0

26

Scag 04031-09

Lockwasher 5/16 Int. Tooth

$0.99

$

In Stock, Qty 8

0

27

Scag 481776

Engine, 23 HP Kohler CV (Spec PS-75523)

$

$

Currently unavailable

28

Scag 481474

Switch, Parking Brake

$103.99

$

In Stock, only 1 left!

0

29

Scag 481476

Switch, Foot Safety

$56.99

$

Usually ships in 2-12 days

0

30

Scag 461397

Clutch, Electric

$306.99

$

In Stock, only 1 left!

0

31

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

32

Scag 48030-09

Wireloom

$1.49

$

In Stock, Qty 5

0

33

Scag 04021-10

Locknut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 48029-15

Battery Cable, 36" Black

$17.99

$

In Stock, only 1 left!

0

35

Scag 48029-13

Battery Cable, 25" Red

$13.99

$

In Stock, only 1 left!

0
