STHM-23CV - Scag Three-Wheel Riding Mower, 23hp Kohler (SN: 6400001 - 6409999) Winch Lift System With A Serial Number Of 6400001 to 6400114 Parts Diagram

Three-Wheel Riding Mower, 23hp Kohler

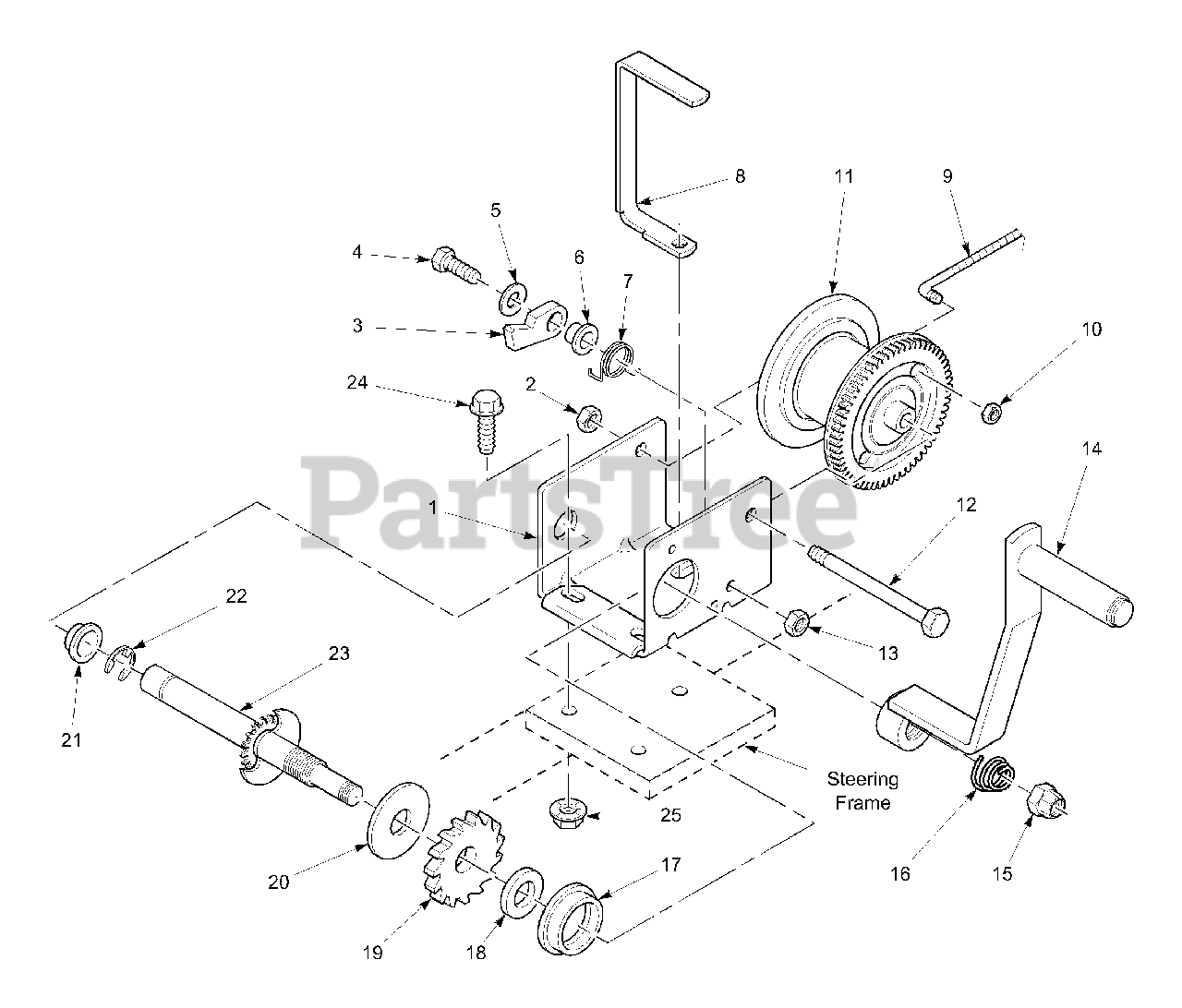

Winch Lift System With A Serial Number Of 6400001 to 6400114 Parts Diagram

  • Title

1

Scag 48043

Winch Assembly

Note: (Incl. 1-7, 11-13, 15-23)

$323.99

$

Usually ships in 2-12 days

0

2

Scag 205155

Locknut, 7/16-14

$2.99

$

Usually ships in 2-12 days

0

3

Scag 404409

Ratchet Pawl

$

$

Not available

4

Scag 205167

Ratchet Bolt

$

$

Not available

5

Scag 205024

Flatwasher

$

$

Not available

6

Scag 404166

Ratchet Spacer

$

$

Not available

7

Scag 204363

Ratchet Spring

$

$

Not available

8

Scag 42127

Cable Guide

$76.99

$

Usually ships in 2-12 days

0

9

Scag 48045

Winch Cable Assembly

$202.99

$

Usually ships in 2-12 days

0

10

Scag 04021-03

Hex Locknut, 1/4-28

$0.99

$

In Stock, only 1 left!

0

11

Scag 304227

Winch Reel

$

$

Not available

12

Scag 205008

Reel Shaft

$

$

Not available

13

Scag 205011

Hex Locknut, 3/8-16

$

$

Not available

14

Scag 48044

Winch Handle

$81.99

$

Usually ships in 2-12 days

0

15

Scag 205015

Handle Nut

$

$

Not available

16

Scag 204364

Handle Spring

$

$

Not available

17

Scag 204359

Shaft Bushing

$

$

Not available

18

Scag 404163

Pressure Washer

$10.99

$

Usually ships in 2-12 days

0

19

Scag 404164

Ratchet Wheel

$

$

Not available

20

Scag 204362

Pressure Plate

$16.99

$

Usually ships in 2-12 days

0

21

Scag 204009

Shaft Bushing

$

$

Not available

22

Scag 205116

E-Ring

$

$

Not available

23

Scag 304228

Drive Shaft

$

$

Not available

24

Scag 04017-27

Serr. Flg. HH Capscrew, 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

25

Scag 04019-04

Serr. Flg. HH Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0
