STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 70000 - 79999) Lower Hydraulics Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

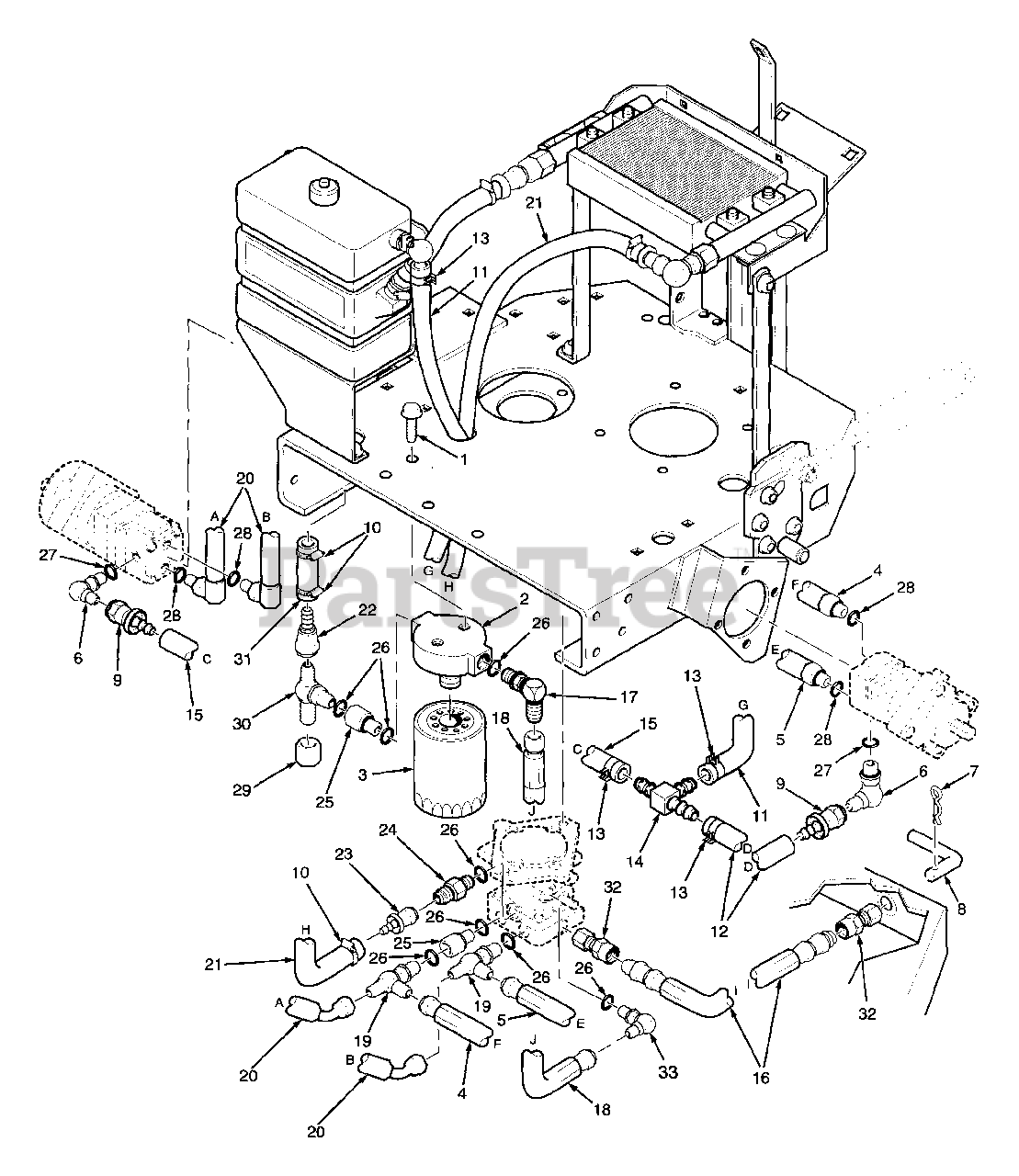

Lower Hydraulics Parts Diagram

  • Title

1

Scag 04017-04

Capscrew, 1/4-20 x 1/2 Serr. Fl. Hex Head

$0.99

$

In Stock, Qty 20+

0

2

Scag 48462-02

Filter Head

$40.99

$

Usually ships in 2-12 days

0

3

Scag 48758

Filter, Spin-On Lube

$26.99

$

In Stock, Qty 17

0

4

Scag 48991

Hose Assembly

$49.99

$

In Stock, only 1 left!

0

5

Scag 48688

Hose Assembly

$45.99

$

In Stock, only 1 left!

0

6

Scag 48350-03

Elbow, 90 Degrees

$21.99

$

Usually ships in 2-12 days

0

7

Scag 04062-01

Hairpin Cotter

$0.99

$

In Stock, Qty 20+

0

8

Scag 44088

Lever, Dump Valve

$16.99

$

Usually ships in 2-12 days

0

9

Scag 48353-02

Connector, Flare Swivel with Hose Barb

$4.49

$

Usually ships in 2-12 days

0

10

Scag 48136-04

Hose Clamp

$8.49

$

Usually ships in 2-12 days

0

11

Scag 48482

Hose, 1/4 Pushlock x 27.0"

$0.99

$

In Stock, Qty 20+

0

12

Scag 48482

Hose, 1/4 Pushlock x 12.0"

$0.99

$

In Stock, Qty 20+

0

13

Scag 48059-01

Hose Clamp

$0.99

$

In Stock, Qty 7

0

14

Scag 48935-01

Tee Union, Pushlock Hose

$

$

Not available

15

Scag 48482

Hose, 1/4 Pushlock x 12.0"

$0.99

$

In Stock, Qty 20+

0

16

Scag 48853

Hose, Dump Valve

$36.99

$

Usually ships in 2-12 days

0

17

Scag 48350-05

Elbow, 90 Deg.

$32.99

$

Usually ships in 2-12 days

0

18

Scag 48856

Inlet Hose, 3/4" ID

$71.99

$

Usually ships in 2-12 days

0

19

Scag 48937-01

Tee, 1/2" Run

$44.99

$

Usually ships in 2-12 days

0

20

Scag 48905

Motor Hose

$80.99

$

Usually ships in 2-12 days

0

21

Scag 48634

Hose, Pump To Oil Cooler

$47.99

$

Usually ships in 2-12 days

0

22

Scag 48936-01

Coupling, Flare Swivel

$33.99

$

Usually ships in 2-12 days

0

23

Scag 48936-02

Coupling, Flare Swivel With Barb

$15.99

$

Usually ships in 2-12 days

0

24

Scag 48572-06

Tube Union

$10.99

$

Usually ships in 2-12 days

0

25

Scag 48938-01

O-Ring Bushing

$20.99

$

Usually ships in 2-12 days

0

26

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

27

Scag 48603-03

O-Ring

$3.49

$

Usually ships in 2-12 days

0

28

Scag 48603-04

O-Ring

$8.99

$

In Stock, only 2 left!

0

29

Scag 48571-03

Cap

$

$

Not available

30

Scag 48810-02

Tee, Jic to O-Ring

$88.99

$

Usually ships in 2-12 days

0

31

Scag 48602

Hose, 4.0"

$

$

Not available

32

Scag 48911-01

Compression Fitting

$12.99

$

Usually ships in 2-12 days

0

33

Scag 48350-12

Elbow, 90 Deg.

$31.99

$

Usually ships in 2-12 days

0
