STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 50001 - 59999) WINCH LIFT SYSTEM Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

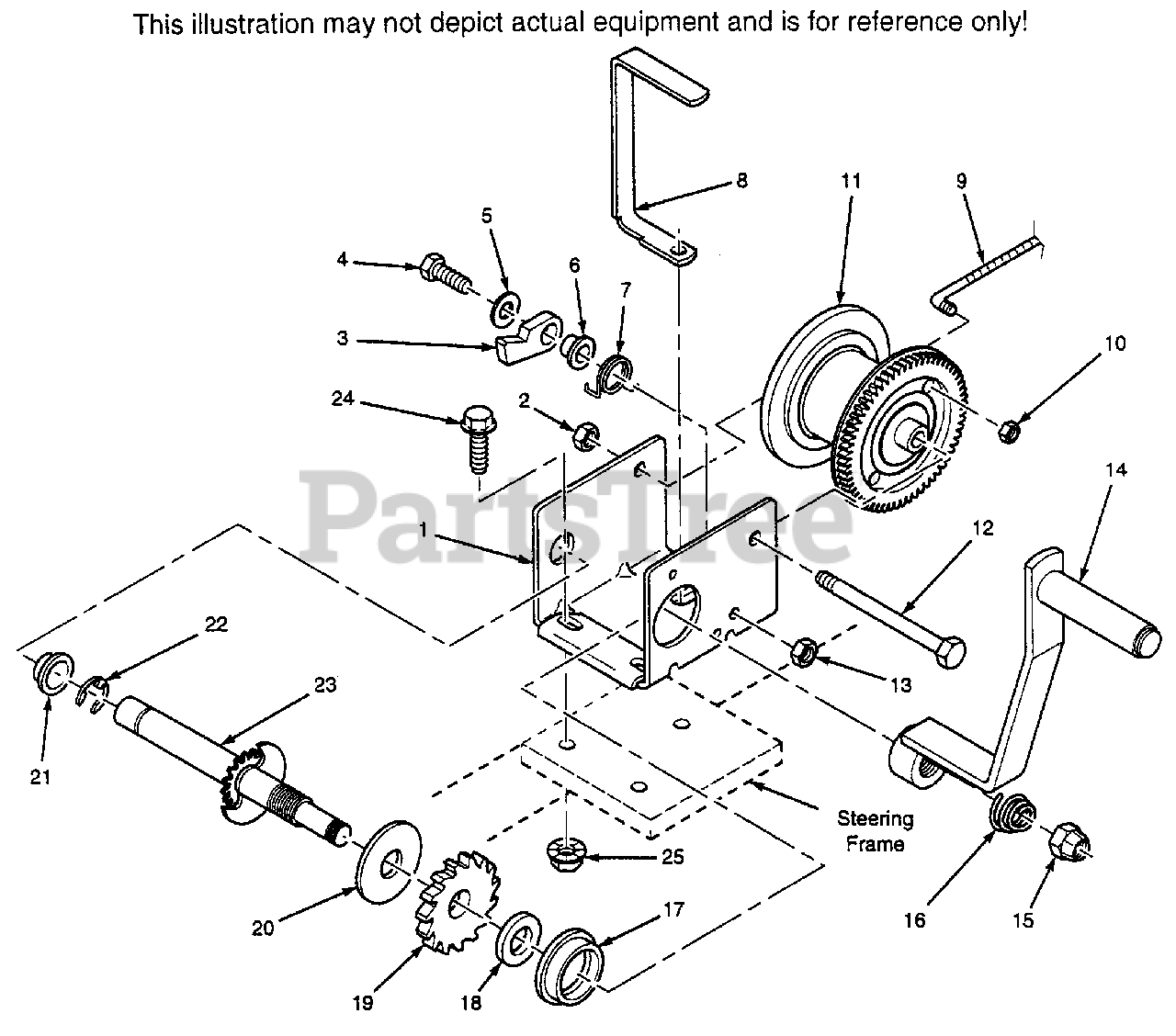

WINCH LIFT SYSTEM Parts Diagram

  • Title

1

Scag 48043

WINCH ASSEMBLY(INCL. 1-7, 11-23)

$323.99

$

Usually ships in 2-12 days

0

2

Scag 205155

LOCKNUT, 7/16-14

$2.99

$

Usually ships in 2-12 days

0

3

Scag 404409

RATCHET PAWL

$

$

Not available

4

Scag 205167

RATCHET BOLT

$

$

Not available

5

Scag 205024

FLATWASHER

$

$

Not available

6

Scag 404166

RATCHET SPACER

$

$

Not available

7

Scag 204363

RATCHET SPRING

$

$

Not available

8

Scag 42127

CABLE GUIDE

$76.99

$

Usually ships in 2-12 days

0

9

Scag 48045

WINCH CABLE ASSEMBLY

$202.99

$

Usually ships in 2-12 days

0

10

Scag 04021-03

HEX LOCKNUT, 1/4-28

$0.99

$

In Stock, only 1 left!

0

11

Scag 304227

WINCH REEL

$

$

Not available

12

Scag 205008

REEL SHAFT

$

$

Not available

13

Scag 205011

HEX LOCKNUT, 3/8-16

$

$

Not available

14

Scag 48044

WINCH HANDLE

$81.99

$

Usually ships in 2-12 days

0

15

Scag 205015

HANDLE NUT

$

$

Not available

16

Scag 204364

HANDLE SPRING

$

$

Not available

17

Scag 204359

SHAFT BUSHING

$

$

Not available

18

Scag 404163

PRESSURE WASHER

$10.99

$

Usually ships in 2-12 days

0

19

Scag 404164

RATCHET WHEEL

$

$

Not available

20

Scag 204362

PRESSURE PLATE

$16.99

$

Usually ships in 2-12 days

0

21

Scag 204009

SHAFT BUSHING

$

$

Not available

22

Scag 205116

E-RING

$

$

Not available

23

Scag 304228

DRIVE SHAFT

$

$

Not available

24

SERR. FLG HH CPSCR, 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED , ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

25

SERR. FLG HH NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED , ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available
