STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 50001 - 59999) ENGINE DECK Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

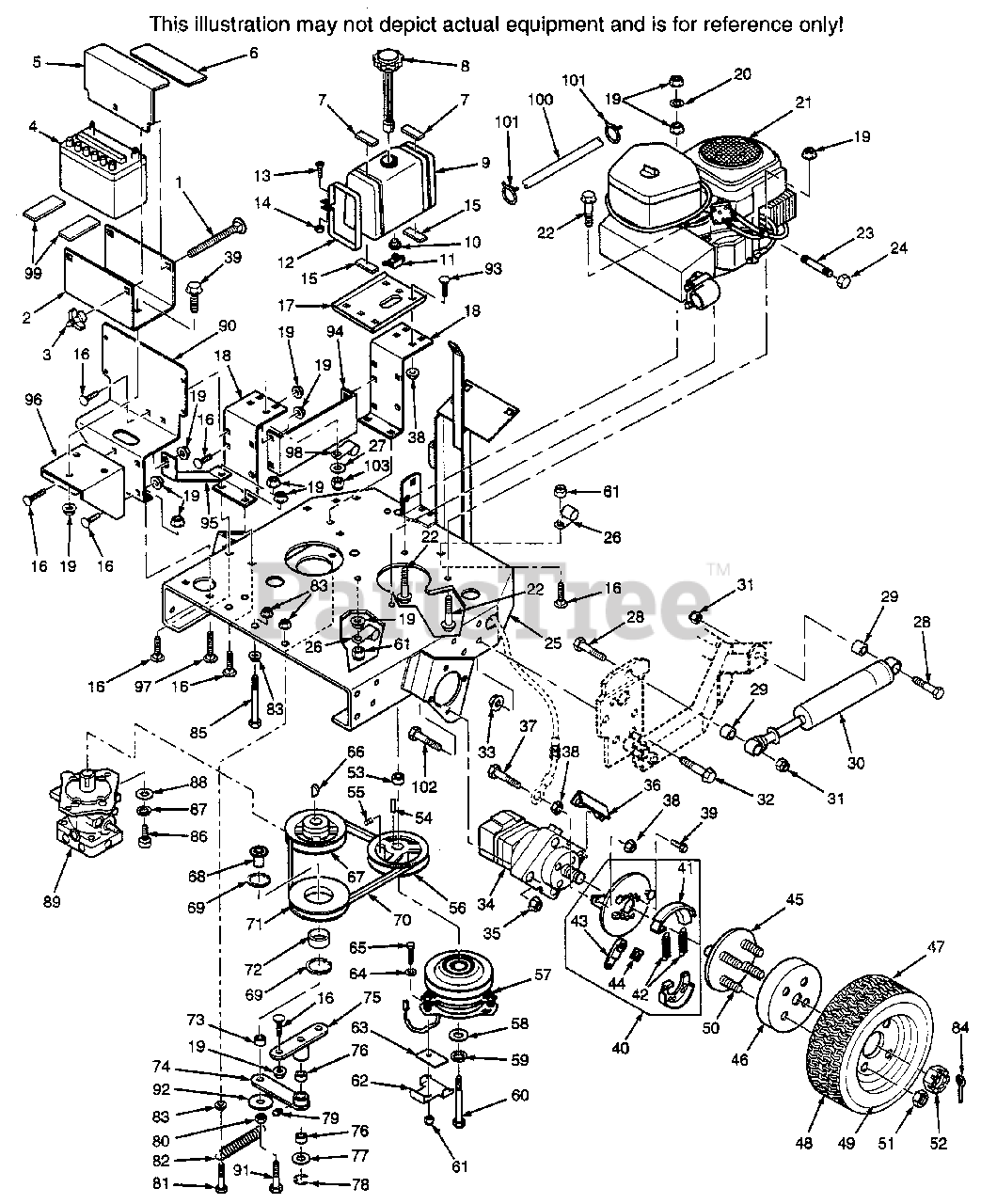

ENGINE DECK Parts Diagram

  • Title

1

Scag 04003-01

CARRIAGE BOLT, 1/4-20 X 6
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

2

Scag 42802

BATTERY BOX
(Superseded to 423308)

$52.99

$

In Stock, only 1 left!

0

3

Scag 04029-01

NUT, WING 1/4-20

$2.49

$

In Stock, Qty 19

0

4

Scag 48015

BATTERY

$

$

Not available

5

Scag 42392

BATTERY COVER

$45.99

$

Usually ships in 2-12 days

0

6

Scag 48099

INSULATION, BATTERY COVER

$5.99

$

Usually ships in 2-12 days

0

7

Scag 48292

PAD, FUEL TANK STRAP

$3.49

$

In Stock, only 2 left!

0

8

Scag 48658

CAP, FUEL TANK
(Superseded to 483787)

$60.99

$

Usually ships in 2-12 days

0

9

Scag 46174

FUEL TANK ASSY.(INCLUDES ITEMS 10-11)
(Superseded to 46846)

$242.99

$

In Stock, only 1 left!

0

10

Scag 48309

BUSHING, FUEL TANK VALVE
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

11

Scag 48308

FUEL SHUT OFF VALVE
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

12

Scag 421239

STRAP, FUEL TANK

$24.99

$

In Stock, only 4 left!

0

13

Scag 04010-10

PHIL RDHD MACHINE SCREW 1/4-20 X 2

$0.99

$

In Stock, Qty 12

0

14

Scag 04020-02

HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 10

0

15

Scag 48205

PAD, FUEL TANK SUPPORT

$4.49

$

Usually ships in 2-12 days

0

16

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

17

Scag 42377

SUPPORT, FUEL TANK

$50.99

$

Usually ships in 2-12 days

0

18

Scag 421522

BRACKET, FUEL TANK SUPPORT

$61.99

$

Usually ships in 2-12 days

0

19

Scag 04019-03

SERR. FL. HEX NUT 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 04031-09

LOCKWASHER, 5/16 INT. TOOTH

$0.99

$

In Stock, Qty 8

0

21

Scag 48836

ENGINE, 20 HP KOHLER CV

$

$

Not available

21

Scag 48837

ENGINE, 22 HP KOHLER CV

$

$

Not available

22

Scag 04017-20

SERR. FL. HEX HEAD CPSCR, 5/16-18 X 1 3/4

$

$

Not available

23

Scag 48402-02

OIL DRAIN EXTENSION

$6.49

$

Usually ships in 2-12 days

0

24

Scag 48257

CAP, PLUG

$2.49

$

In Stock, only 1 left!

0

25

Scag 45586

ENGINE DECK

$

$

Not available

26

Scag 48030-09

WIRE LOOM, .50 I.D.

$1.49

$

In Stock, Qty 5

0

27

WASHER, 1/4(.312 X .750 X .065)

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

Scag 04001-72

BOLT, HEX HEAD 1/2-13 X 2

$1.99

$

Usually ships in 2-12 days

0

29

Scag 43041

SLEEVE, SHOCK ABSORBER MOUNT

$4.99

$

Usually ships in 2-12 days

0

30

Scag 48516

SHOCK ABSORBER

$494.99

$

In Stock, only 1 left!

0

31

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP 1/2-13

$0.99

$

In Stock, Qty 20+

0

32

Scag 04017-42

SERR. FL. HEX HEAD CPSCR, 7/16-14 X 1

$4.99

$

In Stock, Qty 10

0

33

Scag 04019-05

SERR. FL. HEX NUT, 7/16-14

$0.99

$

In Stock, Qty 12

0

34

Scag 48769

MOTOR - WHITE(INCLUDES ITEM 52)

$2892.99

$

Usually ships in 2-12 days

0

35

Scag 04019-06

SERR. FL. HEX NUT, 1/2-13

$0.99

$

In Stock, Qty 10

0

36

Scag 421289

ANCHOR, BRAKE

$

$

Not available

37

Scag 04001-59

BOLT, HEX HEAD 1/4-20 X 1-1/4

$0.99

$

In Stock, Qty 5

0

38

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

39

Scag 04017-16

SERR. FL. HEX HEAD CPSCR, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

40

Scag 48461

PARKING BRAKE ASSEMBLY

$310.99

$

Usually ships in 2-12 days

0

41

Scag 48461-02

BRAKE PADS-PAIR

$145.99

$

Usually ships in 2-12 days

0

42

Scag 48461-03

SPRINGS - PAIR

$14.99

$

Usually ships in 2-12 days

0

43

Scag 48461-04

ACTUATING ARM,(INCL. PIN & CLIP)

$145.99

$

Usually ships in 2-12 days

0

44

Scag 48461-05

CLIP

$4.49

$

Usually ships in 2-12 days

0

45

Scag 46332

HUB ASSEMBLY(INCLUDES ITEM 50)
(Superseded to 46929)

$173.99

$

In Stock, only 1 left!

0

46

Scag 48513

BRAKE DRUM

$

$

Not available

47

Scag 48933

RIM AND TIRE ASSEMBLY(INCLUDES ITEMS 48,49)

$341.99

$

Usually ships in 2-12 days

0

48

Scag 48933-02

TIRE 20 X 10 X 10, 4 PLY

$

$

Not available

49

Scag 48416-04

RIM ONLY

$291.99

$

Usually ships in 2-12 days

0

50

Scag 04008-01

BOLT, HUB

$3.49

$

In Stock, Qty 20+

0

51

Scag 04028-01

WHEEL NUT

$1.49

$

In Stock, Qty 14

0

52

Scag 48813

SPRING LOCKNUT

$

$

Not available

52

Scag 48680

CASTLE NUT, 1.0-20 UNEF

$16.99

$

In Stock, only 3 left!

0

53

Scag 43261

SPACER, CLUTCH

$

$

Not available

54

Scag 04063-06

KEY, 1/4 X 1/4 X 1-1/2

$1.49

$

In Stock, only 2 left!

0

55

Scag 04012-04

HEX SOCKET SET SCREW, 5/16-18 X 3/8

$0.99

$

In Stock, Qty 14

0

56

Scag 48792

PULLEY, ENGINE PUMP DRIVE(INCL. 55)

$116.99

$

Usually ships in 2-12 days

0

57

Scag 48786

CLUTCH, ELECTRIC
(Superseded to 461074)

$507.99

$

Usually ships in 2-12 days

0

58

Scag 04041-18

FLATWASHER, 7/16(.469 X 1.50 X .25)

$

$

Not available

59

Scag 04030-05

LOCKWASHER, 7/16

$0.99

$

In Stock, Qty 5

0

60

Scag 04001-93

BOLT, HEX HEAD 7/16-20 X 3

$1.49

$

In Stock, only 3 left!

0

61

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

62

Scag 421564

BACKING PLATE, CLUTCH STOP

$86.99

$

Usually ships in 2-12 days

0

63

Scag 48814

RUBBER PAD, CLUTCH STOP

$

$

Not available

64

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

65

Scag 04001-10

BOLT, HEX HEAD 5/16-18 X 1-1/4

$0.99

$

In Stock, Qty 14

0

66

Scag 04063-12

KEY, WOODRUFF 3/16 X 5/8

$0.99

$

In Stock, Qty 12

0

67

Scag 48581

PULLEY, PUMP INPUT

$82.99

$

In Stock, only 1 left!

0

68

Scag 43117

SLEEVE, IDLER

$10.99

$

Usually ships in 2-12 days

0

69

RING, RETAINING, 1-9/16 INTERNAL

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

70

Scag 48854

BELT, PUMP DRIVE

$69.99

$

Usually ships in 2-12 days

0

71

Scag 46370

PULLEY, IDLER-TRACTION DRIVE(INCL.68,69,72)

$151.99

$

Usually ships in 2-12 days

0

72

Scag 48102

BEARING, IDLER PULLEY

$11.99

$

Usually ships in 2-12 days

0

73

Scag 43063

SPACER, IDLER

$7.99

$

In Stock, only 2 left!

0

74

Scag 46327

PUMP IDLER ARM(INCLUDES ITEMS 76,79)

$52.99

$

Usually ships in 2-12 days

0

75

Scag 45037

IDLER PIVOT BASE

$30.99

$

Usually ships in 2-12 days

0

76

Scag 48100-05

BUSHING, OILLUBE

$0.99

$

In Stock, only 3 left!

0

77

Scag 04041-08S

FLATWASHER, 3/4

$0.99

$

In Stock, Qty 20+

0

78

RING, RETAINING, 3/4 EXT. "E"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

79

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

80

Scag 04020-12

HEX NUT, JAM 3/8-16

$0.99

$

In Stock, only 3 left!

0

81

Scag 04001-62

BOLT, HEX HEAD 3/8-16 X 3-1/4

$1.49

$

In Stock, Qty 12

0

82

Scag 48929

SPRING, PUMP DRIVE IDLER

$53.99

$

Usually ships in 2-12 days

0

83

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

84

Scag 04061-04

COTTER PIN, 5/32 X 1.50

$

$

Currently unavailable

85

Scag 04001-47

BOLT, HEX HEAD 3/8-16 X 5

$3.49

$

Usually ships in 2-12 days

0

86

Scag 04015-03

SOCKET HEAD CPSCR, 1/2-13 X 1-1/4

$

$

Not available

87

Scag 04030-06

LOCKWASHER, 1/2

$0.99

$

In Stock, only 2 left!

0

88

Scag 04041-04

FLATWASHER, 1/2(.516 X .938 X .05)

$0.99

$

Usually ships in 2-12 days

0

89

PUMP, SUNDSTRAND

$

$

Not available

90

Scag 421520

BRACKET, OIL TANK SUPPORT

$

$

Not available

91

Scag 04001-21

BOLT, HEX HEAD 3/8-16 X 1-3/4

$0.99

$

In Stock, Qty 20+

0

92

Scag 04041-10

WASHER 2" OD, 3/8 ID, 16 GA.

$1.99

$

Usually ships in 2-12 days

0

93

Scag 04003-02

CARRIAGE BOLT, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

94

Scag 421523

GUARD, PULLEY

$49.99

$

Usually ships in 2-12 days

0

95

Scag 421521

GUSSET, BATTERY BOX

$15.99

$

Usually ships in 2-12 days

0

96

Scag 421519

SUPPORT, BATTERY BOX
(Superseded to 421705)

$

$

Not available

97

CARRIAGE BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

98

Scag 48030-10

WIRE LOOM, .75 I.D.

$0.99

$

Usually ships in 2-12 days

0

99

Scag 48661

RUBBER PAD

$4.99

$

Usually ships in 2-12 days

0

100

Scag 48058-15

FUEL HOSE, 26"
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

101

Scag 48059-01

CLAMP, FUEL HOSE

$0.99

$

In Stock, Qty 7

0

102

Scag 04001-52

BOLT, 1/2-13 X 2.50"

$1.49

$

Usually ships in 2-12 days

0

103

Scag 04021-08

NUT, 1/4-20 ELASTIC STOP

$0.99

$

In Stock, Qty 9

0
