STHM-22CV - Scag Three-Wheel Riding Mower, 22hp Kohler (SN: 40000 - 49999) BRAKE LINKAGE Parts Diagram

Three-Wheel Riding Mower, 22hp Kohler

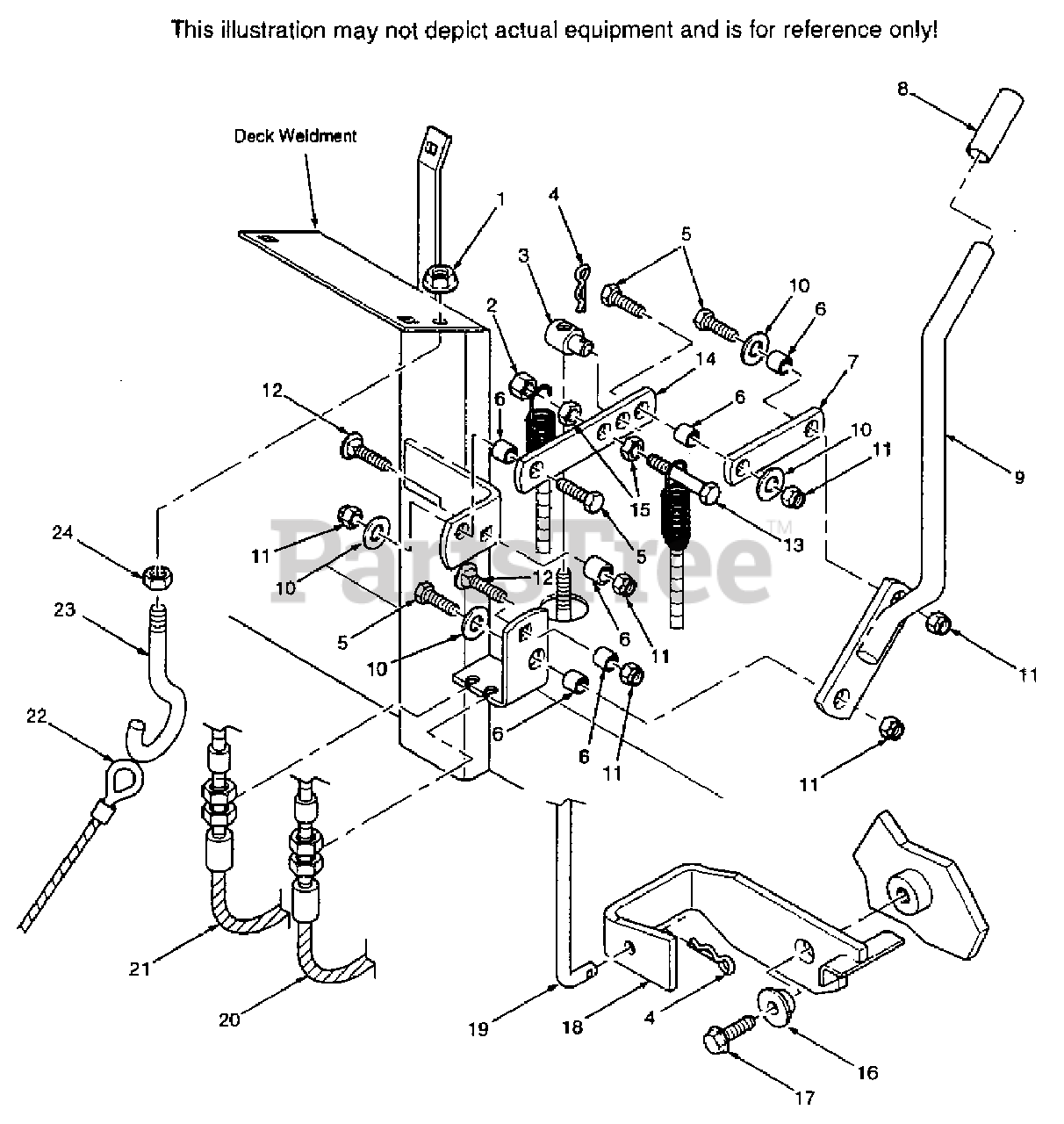

BRAKE LINKAGE Parts Diagram

  • Title

1

Scag 04019-04

SERR. FL. HH NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

HEX LOCKNUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

3

Scag 43032

SWIVEL

$6.49

$

In Stock, Qty 17

0

4

Scag 04062-01

COTTER PIN

$0.99

$

In Stock, Qty 20+

0

5

HEX HEAD BOLT, 3/8-16 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

6

Scag 43212

SLEEVE, HYDRO LINKAGE

$4.49

$

In Stock, Qty 5

0

7

Scag 421338

LINK, CAM

$92.99

$

Usually ships in 2-12 days

0

8

Scag 48342

GRIP, PARKING BRAKE

$2.49

$

Usually ships in 2-12 days

0

9

Scag 45504

HANDLE, PARKING BRAKE

$49.99

$

Usually ships in 2-12 days

0

10

FLAT WASHER, 3/8 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

11

HEX NUT, ELASTIC STOP 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

12

CARRIAGE BOLT, 3/8-16 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

13

HEX HEAD BOLT, 3/8-16 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

Scag 421339

LEVER, BRAKE

$16.99

$

Usually ships in 2-12 days

0

15

HEX JAM NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

16

Scag 43260

WASHER, NEUTRAL LOCK

$9.99

$

Usually ships in 2-12 days

0

17

Scag 04017-27

SERR. FL. HH CPSCR, 3/8-16 X 1

$1.49

$

In Stock, Qty 20+

0

18

Scag 45489

BRACKET, NEUTRAL LOCK
(Superseded to 45647)

$182.99

$

Usually ships in 2-12 days

0

19

Scag 44085

ROD, NEUTRAL LOCK

$

$

Not available

20

Scag 48881

CABLE ASSEMBLY, PARKING BRAKE R.H.

$84.99

$

Usually ships in 2-12 days

0

21

Scag 48880

CABLE ASSEMBLY, PARKING BRAKE L.H.

$87.99

$

Usually ships in 2-12 days

0

22

Scag 48045

CABLE WINCH

$202.99

$

Usually ships in 2-12 days

0

23

Scag 04070-03

EYE BOLT, 3/8-16 R.H.

$38.99

$

Usually ships in 2-12 days

0

24

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available
