STHM-20KH - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 30000 - 39999) INSTRUMENT PANEL Parts Diagram

Three-Wheel Riding Mower, 20hp Kohler

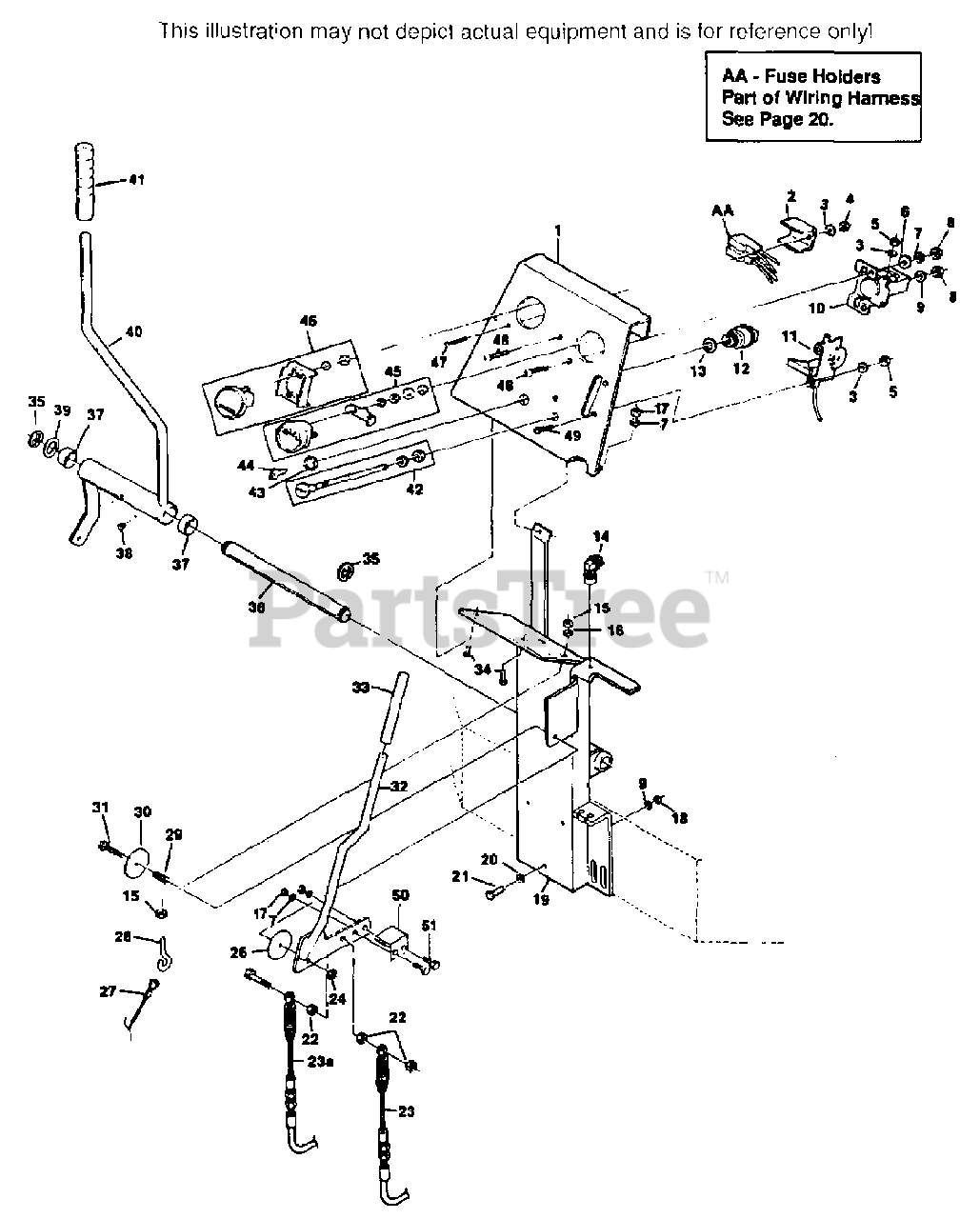

INSTRUMENT PANEL Parts Diagram

  • Title

1

Scag 46330

INSTRUMENT PANEL(INCLUDES DECAL)

$

$

Not available

2

Scag 42413

BRACKET, FUSE HOLDER

$41.99

$

Usually ships in 2-12 days

0

3

Scag 04031-01

LOCKWASHER, #10 EXTERNAL TOOTH

$0.99

$

In Stock, Qty 20+

0

4

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK #10-32

$0.99

$

In Stock, Qty 10

0

5

HEX NUT, #10-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

6

FLAT WASHER, 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

7

LOCKWASHER, 1/4 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

8

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

9

LOCKWASHER, 5/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

10

Scag 48016

SOLENOID, STARTER

$88.99

$

Usually ships in 2-12 days

0

11

Scag 48090

THROTTLE CONTROL

$61.99

$

In Stock, only 1 left!

0

12

Scag 48017

SWITCH, KEY

$23.99

$

Usually ships in 2-12 days

0

13

Scag 48017-03

LOCKWASHER, 5/8 INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

14

Scag 48522

SWITCH, PARKING BRAKE
(Superseded to 481474)

$106.99

$

In Stock, only 1 left!

0

15

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

16

LOCKWASHER, 3/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

17

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

18

HEX LOCKNUT, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

19

Scag 45284

CONSOLE SUPPORT

$

$

Not available

20

FLAT WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

21

BOLT, HEX HD., 5/16-18 X 2-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

22

HEX LOCK JAM NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

23

Scag 48466

CABLE ASSY., PARKING BRAKE - RH
(Superseded to 48881)

$86.99

$

Usually ships in 2-12 days

0

23A

Scag 48467

CABLE ASSY., PARKING BRAKE - LH
(Superseded to 48880)

$89.99

$

Usually ships in 2-12 days

0

24

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK 3/8-16

$0.99

$

In Stock, Qty 20+

0

?25

BOLT, HEX HD., 3/8-16 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

26

Scag 04041-12

FLAT WASHER, 3/8 X 1-1/2 X 16 GA.

$0.99

$

In Stock, Qty 9

0

27

Scag 48045

CABLE, WINCH

$49.99

$

Usually ships in 2-12 days

0

28

Scag 04070-03

EYE BOLT, 3/8-16 X 2

$39.99

$

Usually ships in 2-12 days

0

29

Scag 48050

SPRING, SHIFT LEVER

$33.99

$

Usually ships in 2-12 days

0

30

Scag 04041-12

FLAT WASHER, 3/8 X 1-1/2 X 16 GA.

$0.99

$

In Stock, Qty 9

0

31

BOLT, HEX HD., 3/8-16 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

32

Scag 45285

HANDLE, PARKING BRAKE

$100.99

$

Usually ships in 2-12 days

0

33

Scag 48342

GRIP, PARKING BRAKE

$2.49

$

Usually ships in 2-12 days

0

34

BOLT, HEX HD., 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

35

Scag 04050-02

RETAINING RING, 3/4 "E"

$0.99

$

In Stock, Qty 7

0

36

Scag 43158

SHAFT, BELLCRANK PIVOT

$25.99

$

Usually ships in 2-12 days

0

37

Scag 48100-06

BRONZE BUSHING

$1.49

$

In Stock, only 1 left!

0

38

Scag 48114-01

GREASE FITTING
(Superseded to 48114-04)

$1.49

$

In Stock, Qty 20+

0

39

FLAT WASHER, 3/4(49/64 X 1-1/4 X 16 GA.)

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

40

Scag 45022

BELLCRANK, BELT CLUTCH
(Superseded to 46143)

$262.99

$

Usually ships in 2-12 days

0

41

Scag 48093

GRIP, CLUTCH LEVER

$1.99

$

In Stock, only 1 left!

0

42

Scag 48091

CHOKE CONTROL(INCLUDES HARDWARE)

$51.99

$

Usually ships in 2-12 days

0

43

Scag 48017-04

HEX NUT, 5/8-11

$1.99

$

In Stock, Qty 5

0

44

Scag 48017-02

KEY, IGNITION

$4.49

$

In Stock, Qty 10

0

45

Scag 48022

AMMETER(INCLUDES HARDWARE)
(Superseded to 481755)

$

$

Not available

46

Scag 48023

HOUR METER(INCLUDES HARDWARE)

$64.99

$

Usually ships in 2-12 days

0

47

SCREW, PHILLIPS HD., #10-32 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

48

SCREW, PHILLIPS TRUSS HD., 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

SCREW, PHILLIPS WASHER HD., #10-32 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

Scag 42729

BRKT, PARKING BRAKE SWITCH ACTUATING

$39.99

$

Usually ships in 2-12 days

0

51

HEX HEAD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available
