STHM-20KH - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 30000 - 39999) ELECTRICAL SYSTEM Parts Diagram
Three-Wheel Riding Mower, 20hp Kohler

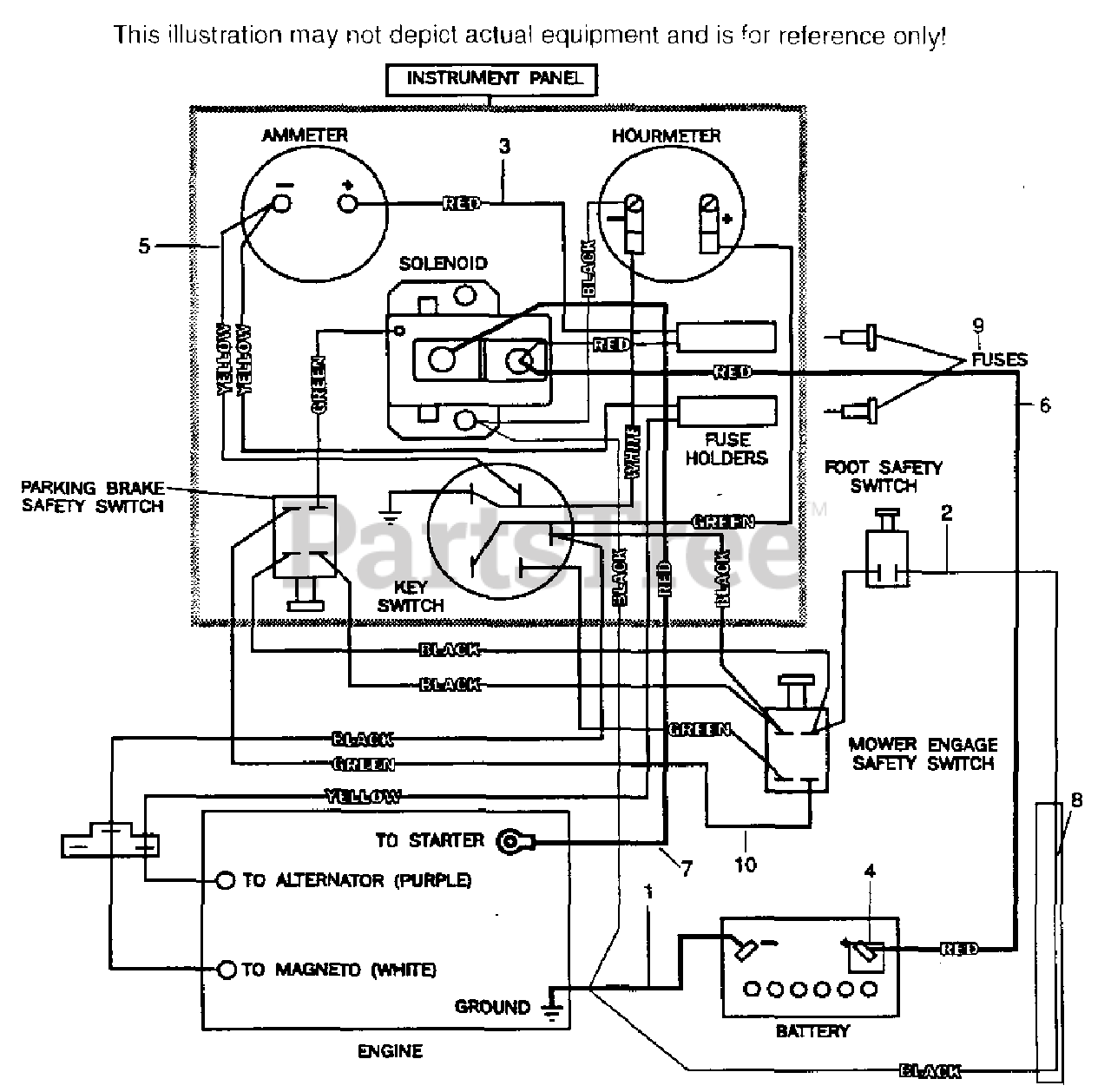

ELECTRICAL SYSTEM Parts Diagram
Scag 48029-01
BATTERY CABLE, GROUND
$9.99
$
Usually ships in 2-12 days
Scag 48616
WIRE HARNESS, FOOT SAFETY SWITCH
$39.99
$
Usually ships in 2-12 days
Scag 48368
WIRE HARNESS, SOLENOID TO AMMETER
$
$
Not available
Scag 48126
RUBBER BOOT
$8.49
$
Usually ships in 2-12 days
Scag 48614
WIRE HARNESS, INSTERMENT PANEL
$
$
Not available
Scag 48029-02
BATTERY CABLE, LONG
$15.99
$
Usually ships in 2-12 days
Scag 48029-03
BATTERY CABLE, SHORT
$10.99
$
Usually ships in 2-12 days
Scag 48033-01
CONDUIT, BLACK NYLON
$
$
Not available
Scag 48298
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE
$3.99
$
Usually ships in 2-12 days
Scag 48615
WIRE HARNESS, LOWER
$42.99
$
Usually ships in 2-12 days
$
$
Not available
$44.99
$
Usually ships in 2-12 days
