STHM-20KH - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 01001 - 09999) CUTTER DECK SM-52 Parts Diagram

Three-Wheel Riding Mower, 20hp Kohler

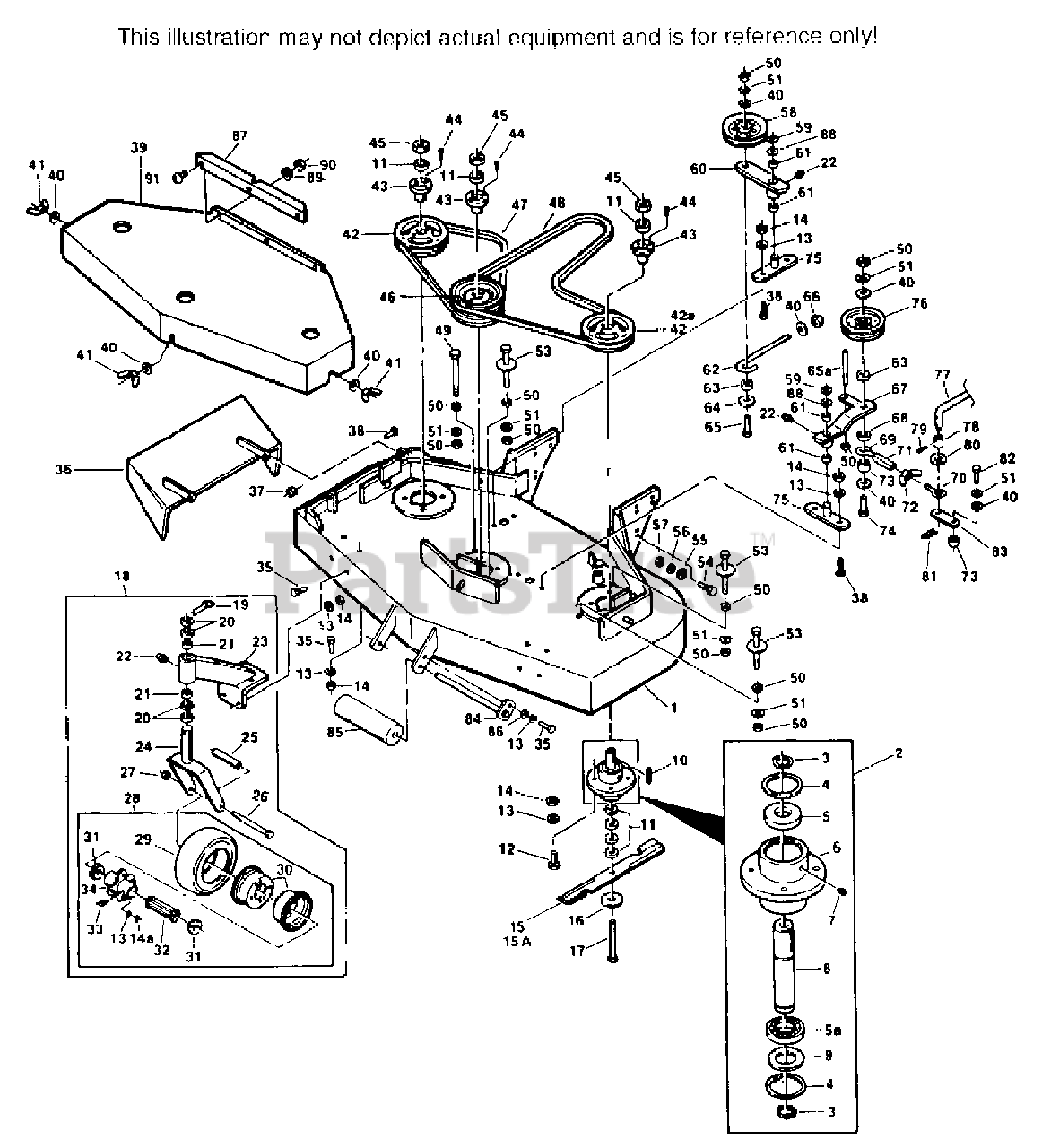

CUTTER DECK SM-52 Parts Diagram

  • Title

1

Scag 46318

CUTTER DECK(INCL. DECALS)

$

$

Not available

2

Scag 46020

CUTTER SPINDLE ASSY.(INCL. 3-9)
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

3

Scag 04050-04

RETAINING RING, 1" EXT.-INVERTED

$1.99

$

In Stock, Qty 5

0

4

Scag 04050-07

RETAINING RING, 2-7/16 INT.- BASIC

$3.99

$

Usually ships in 2-12 days

0

5

Scag 48101-01

BEARING, CUTTER SPINDLE LOWER
(Superseded to 48101-02)

$25.99

$

Usually ships in 2-12 days

0

5A

Scag 48101-02

BEARING, CUTTER SPINDLE UPPER

$25.99

$

Usually ships in 2-12 days

0

6

Scag 41001

SPINDLE HOUSING

$

$

Not available

7

Scag 48114-02

GREASE FITTING, STR. 5/16 SERR.

$1.99

$

In Stock, only 3 left!

0

8

Scag 43001-02

SPINDLE, CUTTER BLADE

$53.99

$

In Stock, only 3 left!

0

9

Scag 04041-02

WASHER, 1-15/16 X 2-13/32 X 16 GA.

$22.99

$

In Stock, only 2 left!

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

11

Scag 43038

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

HEX HEAD BOLT, 5/16-18 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

13

LOCKWASHER, SPRING, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14A

UNKNOWN

$

$

Not available

15

Scag 48108

CUTTER BLADE, 18" STD.
(Superseded to 481707)

$23.99

$

In Stock, Qty 20+

0

15A

Scag 48185

CUTTER BLADE, 18" HIGH LIFT
(Superseded to 481711)

$41.99

$

Usually ships in 2-12 days

0

16

Scag 04040-10

FLAT WASHER, 5/8

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

HEX HEAD BOLT, 5/8-11 X 9-1/2

$15.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSY, COMP.(INCL. 19-28)

$405.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.99

$

In Stock, Qty 7

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2 LONG

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 5

0

22

Scag 48114-01

GREASE FITTING, STR. 1/4-28
(Superseded to 48114-04)

$1.49

$

In Stock, Qty 20+

0

23

Scag 46082

SUPPORT ASSY.(INCL. 21-22)

$152.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE WLD.

$67.99

$

In Stock, only 1 left!

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

HEX HEAD BOLT, 1/2-13 X 5-1/2

$4.49

$

In Stock, Qty 15

0

27

HEX LOCKNUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

Scag 48307-01

WHEEL ASSY.(INCL. 13-14, 14A, 29-34)
(Superseded to 48307)

$155.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$89.99

$

Usually ships in 2-12 days

0

?29A

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$21.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$72.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

GREASE FITTING, 45' 1/4-28

$5.49

$

In Stock, Qty 6

0

34

Scag 48006-05

HUB ASSY. W/BOLTS, CASTER WHEEL
(Superseded to 481768)

$66.99

$

Usually ships in 2-12 days

0

35

HEX HEAD BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

36

Scag 45100

DISCHARGE CHUTE WLD.
(Superseded to 461291)

$97.99

$

Usually ships in 2-12 days

0

37

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

38

HEX HEAD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

Scag 46319

BELT COVER(INCL. DECALS)

$

$

Not available

40

FLAT WASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

41

Scag 04022-04

WING NUT, 3/8-16
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

42

Scag 48127

PULLEY(INCL. 43-44)
(Superseded to 482744)

$

$

Not available

42A

UNKNOWN

$

$

Not available

43

Scag 48141

TAPER HUB

$30.99

$

In Stock, only 1 left!

0

44

HEX HD. BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

45

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

46

Scag 48412

PULLEY, DOUBLE(INCL. 43-44)
(Superseded to 48923)

$113.99

$

In Stock, only 1 left!

0

47

Scag 48285

BELT, RH BLADE DRIVE

$41.99

$

Usually ships in 2-12 days

0

48

Scag 48530

BELT, BLADE DRIVE

$79.99

$

Usually ships in 2-12 days

0

49

HEX HEAD BOLT, 3/8-16 X 5

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

51

LOCKWASHER, 3/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

53

Scag 45098

BELT GUIDE

$15.99

$

Usually ships in 2-12 days

0

54

HEX HD. BOLT, 1/2-13 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

54

HEX HD. BOLT, 1/2-13 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

55

FLAT WASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

56

LOCKWASHER, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

57

HEX NUT, 1/2-13 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

58

Scag 48181

PULLEY

$26.99

$

In Stock, Qty 14

0

59

Scag 04050-02

RETAINING RING, 3/4" EXT.- "E"

$0.99

$

In Stock, Qty 7

0

60

Scag 46081

IDLER ARM ASSEMBLY(INCL. 22 & 61)

$47.99

$

Usually ships in 2-12 days

0

61

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

62

Scag 43028

J ROD, IDLER PULLEY

$4.99

$

In Stock, only 2 left!

0

63

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

64

Scag 04041-12

WASHER, 3/8 X 1-1/2 X 16 GA.

$0.99

$

In Stock, Qty 9

0

65

Scag 04004-04

STUD

$2.49

$

Usually ships in 2-12 days

0

65A

UNKNOWN

$

$

Not available

66

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

67

Scag 46145

IDLER ARM(INCL. 22 & 61)

$108.99

$

Usually ships in 2-12 days

0

68

Scag 43063

SPACER

$9.99

$

In Stock, only 2 left!

0

69

Scag 04070-02

EYEBOLT, LH

$4.49

$

Usually ships in 2-12 days

0

70

Scag 04070-01

EYEBOLT, RH

$26.99

$

In Stock, only 1 left!

0

71

Scag 43025

TURNBUCKLE

$14.99

$

In Stock, only 1 left!

0

72

Scag 04022-02

WING NUT, 5/16-18

$8.49

$

Usually ships in 2-12 days

0

73

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

74

HEX HEAD BOLT, 3/8-16 X 3-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

75

Scag 45037

IDLER PIVOT

$31.99

$

Usually ships in 2-12 days

0

76

Scag 48269

PULLEY, IDLER
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

77

Scag 44054

BLADE CLUTCH ROD

$68.99

$

Usually ships in 2-12 days

0

78

Scag 43043

SLEEVE, CLUTCH ROD

$12.99

$

Usually ships in 2-12 days

0

79

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

80

Scag 04042-01

FLAT WASHER, 33/64 X 1 X 16 GA.

$0.99

$

Usually ships in 2-12 days

0

81

Scag 04062-01

HARI PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

82

HEX HD. BOLT, 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

83

Scag 42057

CAM LINK

$86.99

$

Usually ships in 2-12 days

0

84

Scag 45046

ROLLER SHAFT
(Superseded to 45944)

$22.99

$

In Stock, Qty 20+

0

85

Scag 48038

GUIDE ROLLER

$29.99

$

In Stock, only 2 left!

0

86

FLAT WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

87

Scag 42045

BELT COVER SKIRT

$98.99

$

Usually ships in 2-12 days

0

88

Scag 04041-08S

FLAT WASHER, 49/64 X 1-1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

89

LOCKWASHER, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

90

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

91

MACHINE SCREW, 1/4-20 X 1/2 SLT. TRUSS HD.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available
