STHM-20CV - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 60000 - 69999) RIDER FRAME ASSEMBLY Parts Diagram

Three-Wheel Riding Mower, 20hp Kohler

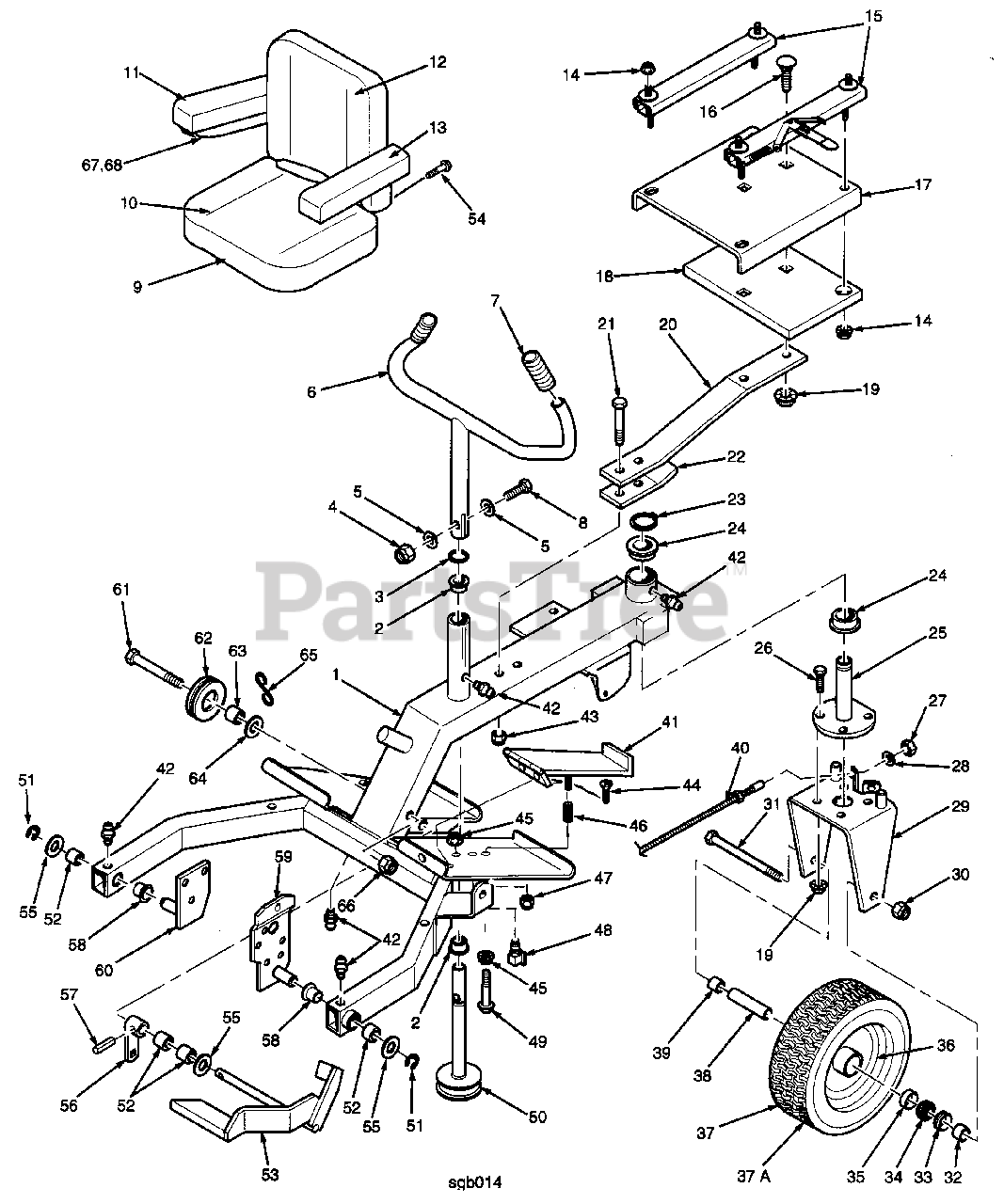

RIDER FRAME ASSEMBLY Parts Diagram

  • Title

1

Scag 46715

STEERING FRAME(INCLUDES BSHGS AND FITTINGS)

$

$

Not available

2

Scag 48100-07

BRONZE BUSHING, 7/8 ID X 1.0 FLANGED
(Superseded to 48100-01)

$2.99

$

In Stock, Qty 20+

0

3

Scag 04050-03

RETAINING RING, 7/8 EXTERNAL

$0.99

$

In Stock, Qty 5

0

4

Scag 04021-10

HEX NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

5

Scag 04040-15

FLAT WASHER, 5/16(3/8 X 7/8 X 13 GA.)

$0.99

$

In Stock, Qty 20+

0

6

Scag 46029

STEERING HANDLE(INCLUDES ITEM 7)

$135.99

$

Usually ships in 2-12 days

0

7

Scag 48159

GRIP

$3.49

$

In Stock, Qty 8

0

8

Scag 04001-12

BOLT, HEX HD., 5/16-18 X 1-3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 48930

SEAT ASSY.(INCLUDES ITEMS 10 THRU 15, 67&68)
(Superseded to 482119)

$675.99

$

Usually ships in 2-12 days

0

10

Scag 48704-03

CUSHION ASSEMBLY
(Superseded to 482111)

$264.99

$

Usually ships in 2-12 days

0

11

Scag 48704-04

ARM PAD - R.H.
(Superseded to 482108)

$97.99

$

In Stock, only 4 left!

0

12

Scag 48704-02

SEAT BACK CUSHION
(Superseded to 484716)

$186.99

$

Usually ships in 2-12 days

0

13

Scag 48704-05

ARM PAD L.H.
(Superseded to 482107)

$97.99

$

Usually ships in 2-12 days

0

14

Scag 04019-03

SERR. FL. HH. NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 48931

SEAT ADJUSTER TRACK
(Superseded to 46570)

$207.99

$

Usually ships in 2-12 days

0

16

Scag 04003-05

BOLT, RDHD CARR. 3/8-16 X 1-1/2(52" & 61")

$0.99

$

In Stock, Qty 18

0

16

Scag 04003-03

BOLT, RDHD CARR. 3/8-16 X 2.0"(72")

$1.49

$

In Stock, Qty 5

0

17

Scag 421342

SEAT PLATE
(Superseded to 424801)

$85.99

$

Usually ships in 2-12 days

0

18

Scag 42482

BALLAST, SEAT MOUNT(72" CUTTER DECK ONLY)

$

$

Not available

19

Scag 04019-04

SERR FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 42026

SEAT SPRING

$71.99

$

Usually ships in 2-12 days

0

21

Scag 04001-83

BOLT, HEX HD., 7-16-14 X 3-1/2

$2.49

$

In Stock, only 1 left!

0

22

Scag 42366

REINFORCEMENT, SEAT SPRING

$

$

Not available

23

Scag 04050-05

RETAINING RING, 1-1/8" EXTERNAL

$0.99

$

In Stock, Qty 20+

0

24

Scag 48100-02

BUSHING, OILITE - 1-1/8 ID X 1.0 FLANGED

$3.49

$

In Stock, only 2 left!

0

25

Scag 45008

REAR WHEEL PIVOT

$140.99

$

Usually ships in 2-12 days

0

26

Scag 04001-32

BOLT, HEX HD., 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 11

0

27

HEX JAM NUT, 3/8-24

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

LOCK WASHER, 3/8 INTERNAL TOOTH

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

29

Scag 45035

REAR WHEEL YOKE

$180.99

$

Usually ships in 2-12 days

0

30

Scag 04021-13

HEX ELASTIC STOP NUT, 5/8-11

$1.49

$

In Stock, Qty 20+

0

31

Scag 04001-40

BOLT, HEX HD. 5/8-11 X 9"

$

$

Not available

32

Scag 43020-01

SPACER, REAR WHEEL, SHORT

$43.99

$

Usually ships in 2-12 days

0

33

Scag 48005-06

SEAL, GREASE
(Superseded to 481897)

$8.99

$

In Stock, only 1 left!

0

34

Scag 48005-05

BEARING CONE
(Superseded to 481896)

$21.99

$

In Stock, only 1 left!

0

35

Scag 48005-04

BEARING CUP
(Superseded to 481895)

$18.99

$

Usually ships in 2-12 days

0

36

Scag 48005-03

RIM ONLY
(Superseded to 481894)

$304.99

$

In Stock, only 1 left!

0

37

Scag 48005

REAR WHEEL ASSY.(INCLUDES ITEMS 33-36, 37A)

$371.99

$

Usually ships in 2-12 days

0

37A

Scag 48005-02

TIRE ONLY
(Superseded to 481893)

$217.99

$

Usually ships in 2-12 days

0

38

Scag 43021

SLEEVE, REAR WHEEL

$48.99

$

Usually ships in 2-12 days

0

39

Scag 43020-02

SPACER, REAR WHEEL

$25.99

$

Usually ships in 2-12 days

0

40

Scag 48828

CABLE, STEERING(INCLUDES HARDWARE)

$138.99

$

In Stock, only 1 left!

0

41

Scag 45606

PEDAL, FOOT SAFETY SWITCH

$141.99

$

Usually ships in 2-12 days

0

42

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

43

Scag 04021-11

HEX ELASTIC STP NUT, 7/16-14

$0.99

$

In Stock, Qty 10

0

44

Scag 04010-17

SCREW, PHILLIPS FLAT HD #10-32 X 3/4"

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

46

Scag 481056

SPRING, FOOT SAFETY SWITCH

$29.99

$

Usually ships in 2-12 days

0

47

Scag 04021-08

HEX NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

48

Scag 48026

SWITCH, FOOT SAFETY
(Superseded to 481476)

$56.99

$

Usually ships in 2-12 days

0

49

Scag 04001-02

BOLT, HEX HD., 1/4-20 X 1-3/4

$0.99

$

Usually ships in 2-12 days

0

50

Scag 45009

STEERING SHAFT

$205.99

$

Usually ships in 2-12 days

0

51

Scag 04050-02

RETAINING RING 3/4 EXT. "E"

$0.99

$

In Stock, Qty 7

0

52

Scag 48100-06

BUSHING, OILLUBE - 3/4 ID X 1.0

$1.49

$

In Stock, only 1 left!

0

53

Scag 45502

FOOT PEDAL

$

$

Not available

54

Scag 48704-06

SCREW W/WASHER, 1/4-20 X .75
(Superseded to 04010-22)

$3.49

$

Usually ships in 2-12 days

0

55

Scag 04041-08

FLAT WASHER, 3/4 X 1-1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

56

Scag 45506

FOOT PEDAL ARM

$44.99

$

Usually ships in 2-12 days

0

57

Scag 04065-01

PIN, DRIVE LOCK 3/16 X 1-1/4"

$2.49

$

Usually ships in 2-12 days

0

58

Scag 48100-03

BUSHING, OILLUBE - 3/4 X .50 FLANGED

$2.99

$

Usually ships in 2-12 days

0

59

Scag 45488

SULKY MTG. BRKT. L.H.

$100.99

$

Usually ships in 2-12 days

0

60

Scag 45256

SULKY MTG. BRKT. R.H.

$51.99

$

Usually ships in 2-12 days

0

61

Scag 04001-37

BOLT, HEX HD., 1/2-13 X 5-1/2"

$4.49

$

In Stock, Qty 20+

0

62

Scag 48208

PULLEY, WINCH CABLE

$74.99

$

Usually ships in 2-12 days

0

63

Scag 48100-04

BUSHING, OILLUBE - 1/2 ID X .56

$0.99

$

In Stock, only 4 left!

0

64

Scag 04040-13

FLAT WASHER, 1/2(.562 X 1.375 X .109)

$0.99

$

In Stock, Qty 20+

0

65

Scag 44028

RETAINER, WINCH CABLE

$

$

Not available

66

Scag 04021-07

HEX ELASTIC STOP NUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

67

Scag 48831-01

ARM REST BRACKET, LEFT HAND
(Superseded to 483547)

$92.99

$

Usually ships in 2-12 days

0

68

Scag 48831-02

ARM REST BRACKET, RIGHT HAND
(Superseded to 483548)

$129.99

$

In Stock, only 1 left!

0
