STHM-20CV - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 50000 - 59999) UPPER HYDRAULICS Parts Diagram

Three-Wheel Riding Mower, 20hp Kohler

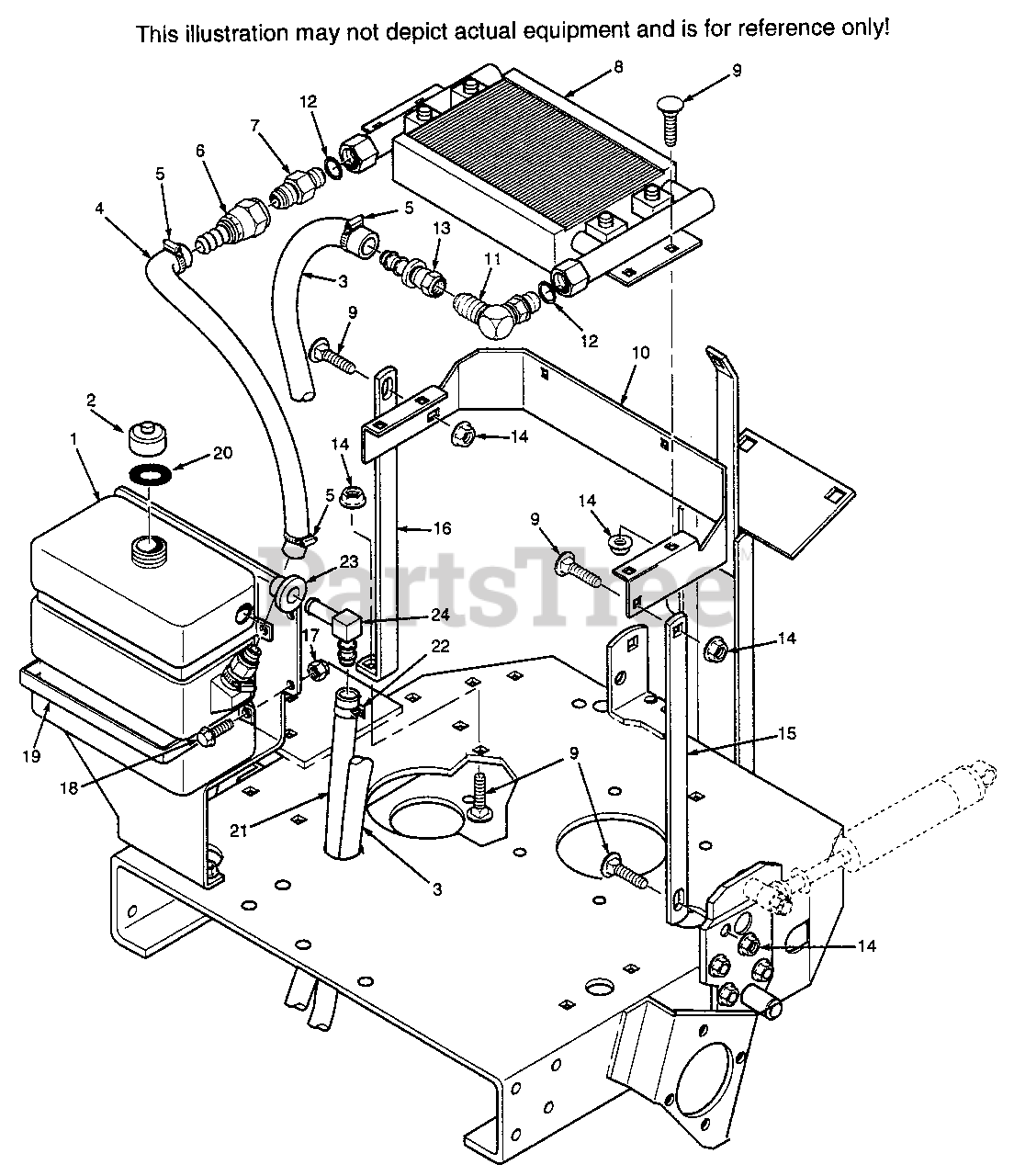

UPPER HYDRAULICS Parts Diagram

  • Title
1

Scag 48711

TANK, HYDRAULIC

$377.99

$

Usually ships in 2-12 days

0

2

Scag 48894

CAP, HYDRAULIC TANK

$

$

Not available

3

Scag 48634

HOSE, PUMP TO OIL COOLER

$47.99

$

Usually ships in 2-12 days

0

4

Scag 48942

HOSE, OIL COOLER TO TANK

$27.99

$

Usually ships in 2-12 days

0

5

Scag 48136-04

CLAMP, HOSE

$8.49

$

Usually ships in 2-12 days

0

6

Scag 48936-01

COUPLING, FLARE SWIVEL

$33.99

$

Usually ships in 2-12 days

0

7

Scag 48572-05

TUBE, UNION

$

$

Not available

8

Scag 48645

OIL COOLER ASSEMBLY

$

$

Not available

9

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

10

Scag 421279

BRACKET, OIL COOLER

$83.99

$

Usually ships in 2-12 days

0

11

Scag 48350-05

ELBOW, 90 DEGREES

$32.99

$

Usually ships in 2-12 days

0

12

Scag 48603-02

O-RING

$3.49

$

In Stock, only 3 left!

0

13

Scag 48936-02

COUPLING FLARE SWIVEL

$15.99

$

Usually ships in 2-12 days

0

14

Scag 04019-03

SERR. FL. HEX HEAD NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 421280

BRACE, L.H. COOLER SUPPORT

$28.99

$

Usually ships in 2-12 days

0

16

Scag 421281

BRACE, R.H. COOLER SUPPORT

$16.99

$

Usually ships in 2-12 days

0

17

Scag 04021-08

ELASTIC STOP NUT, 1/4-20

$0.99

$

In Stock, Qty 9

0

18

Scag 04017-05

SERR. FL. HEX HEAD CPSCR, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

19

Scag 421288

STRAP, OIL TANK

$25.99

$

Usually ships in 2-12 days

0

20

Scag 481090

GASKET, RUBBER

$1.49

$

In Stock, only 2 left!

0

21

Scag 48482

HOSE, 1/4" PUSHLOK X 27

$0.99

$

In Stock, Qty 20+

0

22

$0.99

$

In Stock, Qty 7

0

23

Scag 48309

BUSHING
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

24

Scag 48939

90 DEGREE ELBOW
(Superseded to 483748)

$8.99

$

In Stock, only 2 left!

0
