STHM-20CV - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 50000 - 59999) CUTTER DECK 52" Parts Diagram

Three-Wheel Riding Mower, 20hp Kohler

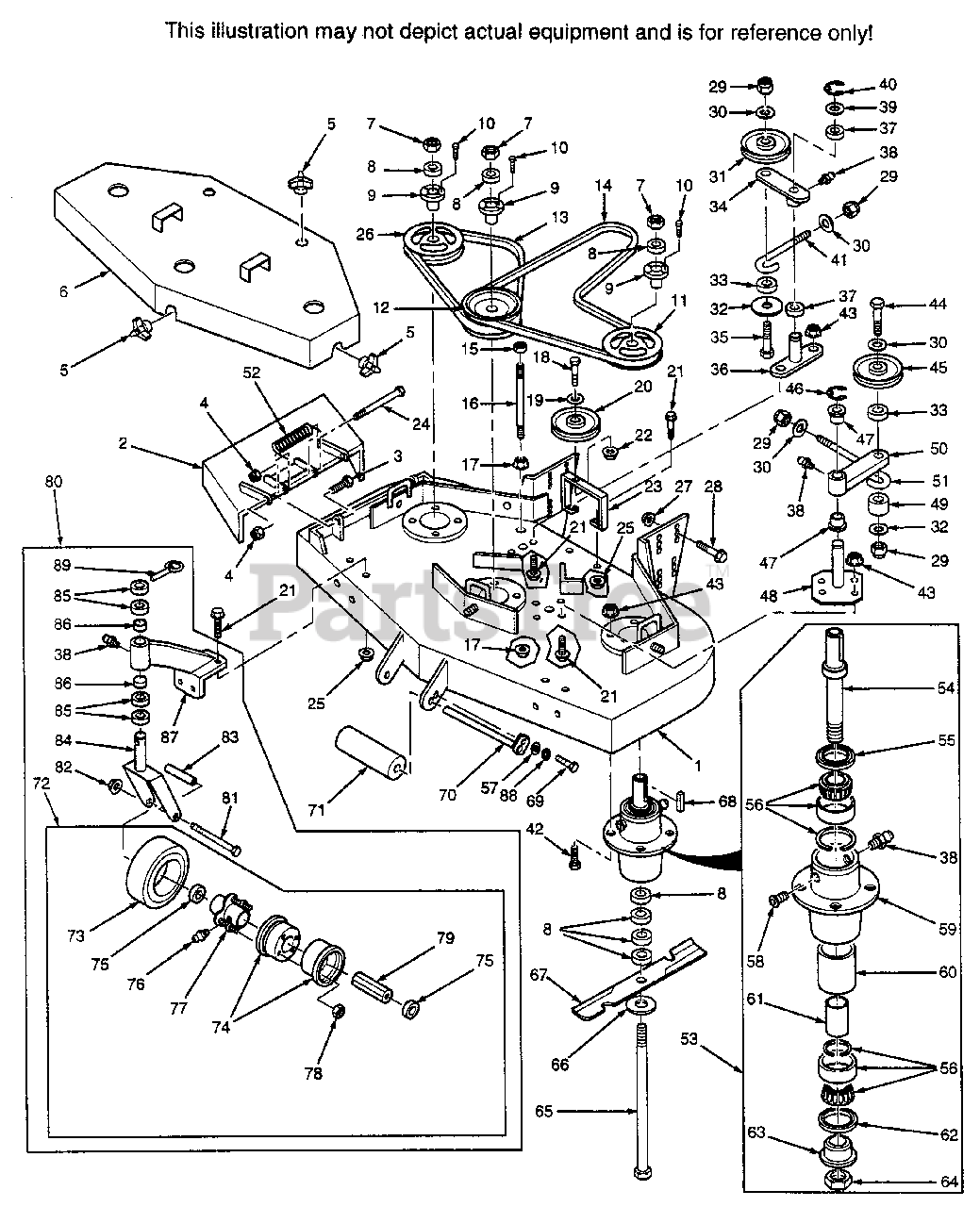

CUTTER DECK 52" Parts Diagram

  • Title

1

Scag 45594

CUTTER DECK(INCLUDES DECALS)
(Superseded to 461135)

$

$

Not available

2

Scag 46725

DISCHARGE CHUTE
(Superseded to 461291)

$94.99

$

Usually ships in 2-12 days

0

3

BOLT, 5/16-18 X 1" HEX HEAD

$

$

Not available

4

Scag 04021-10

NUT, 5/16-18 ELASTIC STOP

$0.99

$

In Stock, Qty 20+

0

5

Scag 04029-03

WING NUT, 3/8-16 X 7/8

$2.49

$

In Stock, Qty 20+

0

6

Scag 46731

BELT COVER(INCL. DECALS)
(Superseded to 462395)

$485.99

$

Usually ships in 2-12 days

0

7

Scag 04020-09

NUT, 5/8-11 HEX HEAD

$0.99

$

In Stock, Qty 20+

0

8

Scag 43278

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

9

Scag 48926

TAPERED HUB, 1.125 BORE

$30.99

$

In Stock, Qty 20+

0

10

Scag 04001-01

BOLT, 1/4-20 X 3/4 HEX HEAD

$0.99

$

In Stock, Qty 18

0

11

Scag 48924

PULLEY, 5.75 O.D.
(Superseded to 482744)

$30.99

$

Usually ships in 2-12 days

0

12

Scag 48923

PULLEY, DOUBLE GROOVE, 5.75 O.D.

$110.99

$

In Stock, only 1 left!

0

13

Scag 48285

BELT, R.H. BLADE DRIVE

$40.99

$

In Stock, only 1 left!

0

14

Scag 48530

BELT, DECK DRIVE

$77.99

$

Usually ships in 2-12 days

0

15

LOCK NUT, 3/8-16 HEX HEAD

$

$

Not available

16

Scag 04004-14

STUD, 3/8-16 X 6-3/4"

$35.99

$

Usually ships in 2-12 days

0

17

Scag 04019-04

NUT, 3/8-16 SERR. FLANGE

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-108

BOLT, 5/16-18 X 1-1/4"

$2.49

$

In Stock, Qty 9

0

25

Scag 04019-03

NUT, 5/16-18 SER. FLG. HEX HD.

$0.99

$

In Stock, Qty 20+

0

26

Scag 48924

PULLEY, 5.75
(Superseded to 482744)

$30.99

$

Usually ships in 2-12 days

0

27

Scag 04019-06

NUT, 1/2-13 SER. FLG. HEX HD.

$0.99

$

In Stock, Qty 10

0

28

Scag 04017-37

CAPSCREW, 1/2-13 X 1-1/4 SER. FLG.

$2.49

$

In Stock, only 3 left!

0

29

NUT, 3/8-16 ELASTIC STOP

$

$

Not available

30

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

31

Scag 48181

PULLEY

$26.99

$

In Stock, Qty 11

0

32

Scag 04041-12

FLATWASHER, 3/8(.375 X 1.50 X .060)

$0.99

$

In Stock, Qty 9

0

33

Scag 43077

SPACER

$4.99

$

In Stock, only 1 left!

0

34

Scag 46081

IDLER ARM(INCL. 37 & 38)

$46.99

$

Usually ships in 2-12 days

0

35

BOLT, 3/8-16 X 2-1/4"

$

$

Not available

36

Scag 45037

IDLER PIVOT

$30.99

$

Usually ships in 2-12 days

0

37

Scag 48100-05

BEARING, BRONZE OILITE

$0.99

$

In Stock, only 3 left!

0

38

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

0

39

Scag 04041-08

FLATWASHER, 1-1/4 X .059 THICK

$0.99

$

In Stock, Qty 20+

0

39

Scag 04041-08S

FLATWASHER, 1-1/4 X .035 THICK

$0.99

$

In Stock, Qty 20+

0

40

RETAINING RING

$

$

Not available

41

Scag 43028

J-ROD IDLER PULLEY

$4.99

$

In Stock, only 1 left!

0

42

Scag 04001-10

BOLT, 5/16-18 X 1-1/4"

$0.99

$

In Stock, Qty 14

0

43

Scag 04019-03

NUT, 5/16-18 SER. FLANGE

$0.99

$

In Stock, Qty 20+

0

44

BOLT, 3/8-16 X 3-1/2" HEX HEAD

$

$

Not available

45

Scag 48269

PULLEY, DECK DRIVE IDLER
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0

46

RETAINING RING

$

$

Not available

47

Scag 48100-02

BEARING, BRONZE OILITE

$3.49

$

In Stock, only 2 left!

0

48

Scag 45329

IDLER PIVOT SUPPORT

$39.99

$

Usually ships in 2-12 days

0

49

Scag 43277

SPACER

$6.49

$

In Stock, only 1 left!

0

50

Scag 46593

IDLER ARM(INCL. 38 & 47)
(Superseded to 46748)

$

$

Not available

51

Scag 44078

J-ROD, DRIVE IDLER

$6.99

$

In Stock, only 2 left!

0

52

Scag 481050

SPRING, CHUTE RETURN
(Superseded to 482245)

$10.99

$

In Stock, Qty 5

0

53

Scag 46631

SPINDLE ASSEMBLY
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

54

Scag 43298

SHAFT, CUTTER SPINDLE
(Superseded to 43589)

$58.99

$

In Stock, only 1 left!

0

55

Scag 481024

SEAL, 2.00 O.D. X 1.50 BORE

$4.99

$

In Stock, Qty 20+

0

56

Scag 481022

BEARING ASSEMBLY

$59.99

$

In Stock, Qty 15

0

57

Scag 04040-15

FLAT WASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

58

Scag 48677

RELIEF FITTING, CUTTER SPINDLE

$

$

Not available

59

Scag 43294

SPINDLE HOUSING
(Superseded to 43644)

$58.99

$

In Stock, only 2 left!

0

60

Scag 43312

SPACER, OUTSIDE

$19.99

$

In Stock, only 1 left!

0

61

Scag 43296

SPACER, INSIDE

$8.49

$

In Stock, only 2 left!

0

62

Scag 481025

SEAL, 2.00 O.D. X 1-5/8 BORE

$4.99

$

In Stock, Qty 20+

0

63

Scag 43297

SPINDLE BUSHING BOTTOM

$9.99

$

In Stock, only 2 left!

0

64

Scag 481035

NUT, 1-1/16-18 UNEF-2B

$7.99

$

In Stock, only 3 left!

0

65

Scag 04001-41

BOLT, 5/8-11 X 9-1/2"

$12.99

$

In Stock, Qty 20+

0

66

Scag 04040-10

FLATWASHER, 5/8

$0.99

$

In Stock, Qty 11

0

67

Scag 48108

CUTTER BLADE, 18" STANDARD
(Superseded to 481707)

$23.99

$

In Stock, Qty 20+

0

67

Scag 48185

CUTTER BLADE, 18" HI-LIFT
(Superseded to 481711)

$40.99

$

In Stock, only 3 left!

0

68

Scag 04063-08

KEY, 1/4 X 1/4 X 2"

$1.49

$

In Stock, Qty 20+

0

69

Scag 04001-08

BOLT, 5/16-18 X 3/4" HEX HEAD

$0.99

$

In Stock, Qty 20+

0

70

Scag 45046

SHAFT, ROLLER
(Superseded to 45944)

$21.99

$

In Stock, Qty 20+

0

71

Scag 48038

GUIDE, ROLLER

$28.99

$

In Stock, only 2 left!

0

72

Scag 48307

WHEEL ASSY., CASTER

$151.99

$

Usually ships in 2-12 days

0

73

Scag 48307-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$87.99

$

Usually ships in 2-12 days

0

73

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$20.99

$

In Stock, only 2 left!

0

74

Scag 48307-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$70.99

$

In Stock, only 1 left!

0

75

Scag 48006-07

RETAINER, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

76

Scag 48114-03

GREASE FITTING, 45 DEG. 1/4-28

$10.99

$

In Stock, Qty 6

0

77

Scag 48006-05

HUB ASSY. W/BOLTS, CASTER WHEEL
(Superseded to 481768)

$64.99

$

Usually ships in 2-12 days

0

78

Scag 48307-08

TAPERED HEX NUT, 5/16-18
(Superseded to 481771)

$1.49

$

Usually ships in 2-12 days

0

79

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$27.99

$

In Stock, only 2 left!

0

80

Scag 46079

CASTER WHEEL ASSEMBLY

$395.99

$

Usually ships in 2-12 days

0

81

BOLT, 1/2-13 X 5-1/2" HEX HEAD

$

$

Not available

82

NUT, 1/2-13 ELASTIC STOP

$

$

Not available

83

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

84

Scag 45006

CASTER YOKE

$65.99

$

In Stock, only 1 left!

0

85

Scag 43037-01

SPACER, CASTER YOKE 1/2"

$2.49

$

In Stock, Qty 20+

0

86

Scag 48100-05

BUSHING, 5/8 X 1" FLANGED

$0.99

$

In Stock, only 3 left!

0

87

Scag 46082

SUPPORT ASSEMBLY(INCL. 88-90)

$148.99

$

In Stock, only 1 left!

0

88

Scag 04030-03

LOCK WASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

89

Scag 04066-01

QUICK PIN

$8.49

$

In Stock, Qty 7

0

90

Scag 48924

PULLEY, 5.75
(Superseded to 482744)

$30.99

$

Usually ships in 2-12 days

0
