STHM-20CV - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 50000 - 59999) CONTROL LINKAGE Parts Diagram

Three-Wheel Riding Mower, 20hp Kohler

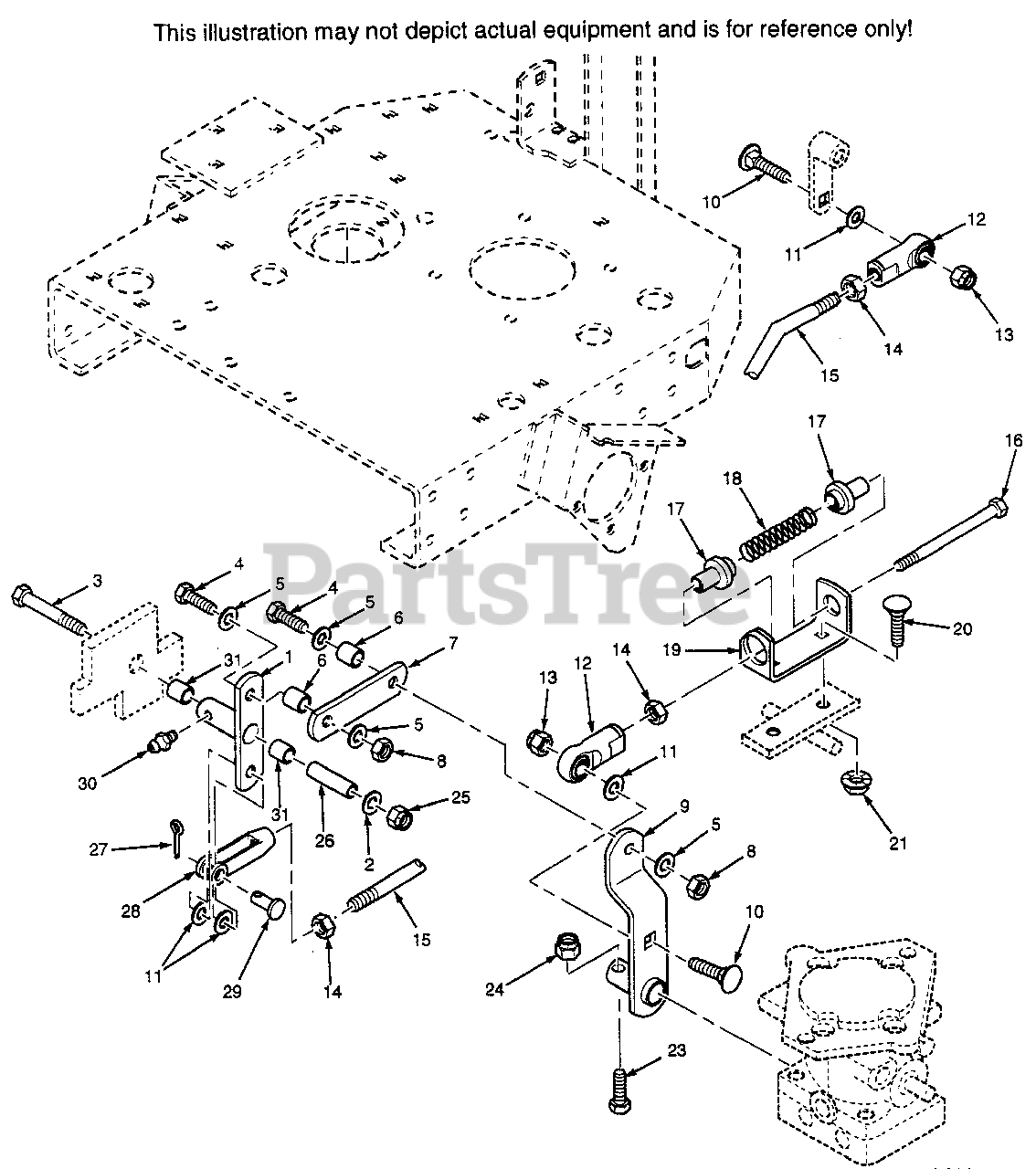

CONTROL LINKAGE Parts Diagram

  • Title

1

Scag 46328

CONTROL LINKAGE, BELLCRANK(INCLUDES 30,31)

$61.99

$

Usually ships in 2-12 days

0

2

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-13

BOLT, HEX HEAD 5/16-18 X 2-3/4

$0.99

$

In Stock, only 1 left!

0

4

Scag 04001-19

BOLT, HEX HEAD 3/8-16 X 1

$0.99

$

In Stock, Qty 7

0

5

Scag 04040-05

FLATWASHER, 3/8(.406 X .812 X .065)

$0.99

$

In Stock, only 4 left!

0

6

Scag 43212

SLEEVE, PUMP CONTROL LINK

$4.49

$

In Stock, Qty 5

0

7

Scag 42658

LINK, SPEED CONTROL

$42.99

$

In Stock, only 1 left!

0

8

Scag 04021-05

HEX LOCKNUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 45485

CONTROL ARM, PUMP

$49.99

$

Usually ships in 2-12 days

0

10

Scag 04003-05

CARRAGE BOLT, RH SH SQNK 3/8-16 X 1-1/2

$0.99

$

In Stock, Qty 18

0

11

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

12

Scag 48464

ROD END, RH FEMALE THD 3/8-24

$23.99

$

In Stock, only 1 left!

0

13

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-14

HEX NUT, 3/8-24

$0.99

$

In Stock, only 3 left!

0

15

Scag 44044

CONTROL ROD

$12.99

$

In Stock, only 1 left!

0

16

Scag 48512

BOLT HEX HEAD, 3/8-24 X 6-3/4

$42.99

$

Usually ships in 2-12 days

0

17

Scag 43257

BUSHING, SPRING KEEPER

$16.99

$

Usually ships in 2-12 days

0

18

Scag 48463

SPRING, NEUTRAL RETURN

$5.49

$

Usually ships in 2-12 days

0

19

Scag 421148

RETAINER, NEUTRAL SPRING

$21.99

$

Usually ships in 2-12 days

0

20

Scag 04003-04

CARRAGE BOLT, 5/16-18 X 1

$0.99

$

In Stock, Qty 9

0

21

Scag 04019-03

SERR. FL. HEX NUT 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-59

BOLT, HEX HEAD 1/4-20 X 1-1/4

$0.99

$

In Stock, Qty 6

0

24

Scag 04021-08

HEX LOCKNUT, ELASTIC STOP 1/4-20

$0.99

$

In Stock, Qty 10

0

25

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 43110

SLEEVE, CONTROL ARM

$8.49

$

Usually ships in 2-12 days

0

27

Scag 04061-02

COTTER PIN, 3/32 X .75

$0.99

$

In Stock, Qty 11

0

28

Scag 48343-02

CLEVIS, PUMP CONTROL
(Superseded to 48343-04)

$17.99

$

In Stock, only 2 left!

0

29

Scag 04064-02

PIN, CLEVIS 3/8

$1.49

$

In Stock, only 4 left!

0

30

Scag 48114-05

GREESE FITTING, 1/4-28 SELF TAP

$1.49

$

In Stock, Qty 9

0

31

Scag 48100-04

BUSHING, BRONZE

$0.99

$

In Stock, only 4 left!

0
