STHM-20CV - Scag Three-Wheel Riding Mower, 20hp Kohler (SN: 40000 - 49999) LOWER HYDRAULICS Parts Diagram

Three-Wheel Riding Mower, 20hp Kohler

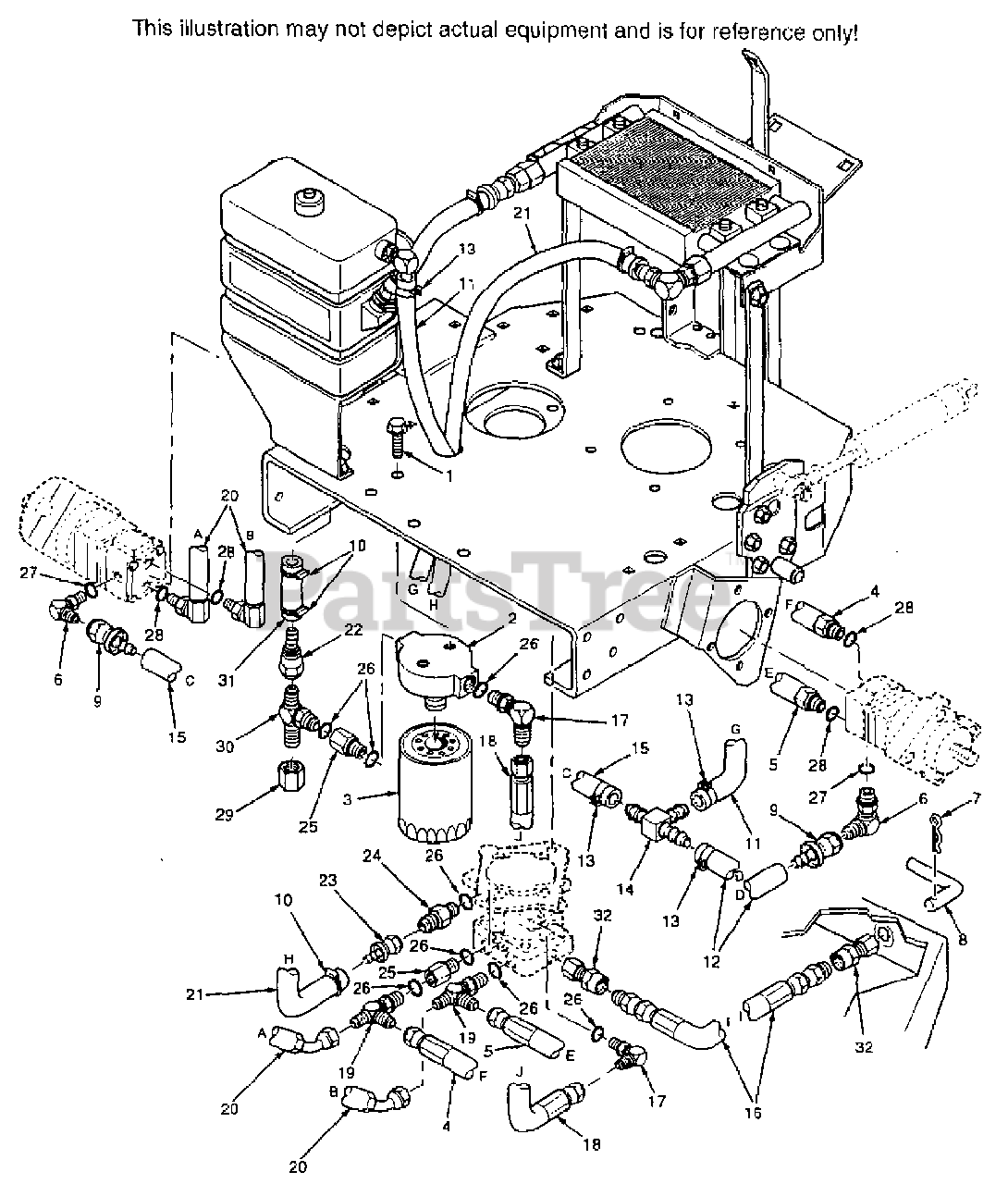

LOWER HYDRAULICS Parts Diagram

  • Title

1

Scag 04017-04

SERR. FL. HEX HEAD CPSCR, 1/4-20 X 1/2

$0.99

$

In Stock, Qty 20+

0

2

Scag 48462-02

FILTER HEAD

$41.99

$

Usually ships in 2-12 days

0

3

Scag 48758

FILTER SPIN-ON LUBE

$27.99

$

In Stock, Qty 20+

0

4

Scag 48991

HOSE ASSEMBLY

$51.99

$

In Stock, only 1 left!

0

5

Scag 48688

HOSE ASSEMBLY

$46.99

$

In Stock, only 1 left!

0

6

Scag 48350-03

ELBOW, 90 DEGREES

$21.99

$

Usually ships in 2-12 days

0

7

Scag 04062-01

PIN, COTTER

$0.99

$

In Stock, Qty 20+

0

8

Scag 44088

LEVER, DUMP VALUE

$17.99

$

Usually ships in 2-12 days

0

9

Scag 48353-02

CONNECTOR, FLARE SWIVEL WITH HOSE BARB

$4.49

$

Usually ships in 2-12 days

0

10

Scag 48136-04

CLAMP, HOSE

$8.49

$

Usually ships in 2-12 days

0

11

Scag 48482-12

HOSE, 1/4 PUSHLOCK
(Superseded to 48482)

$0.99

$

In Stock, Qty 20+

0

12

Scag 48482-05

HOSE, 1/4 PUSHLOCK
(Superseded to 48482)

$0.99

$

In Stock, Qty 20+

0

13

Scag 48059-01

CLAMP, HOSE

$0.99

$

In Stock, Qty 7

0

14

Scag 48935-01

TEE UNION, PUSHLOCK HOSE

$17.99

$

Usually ships in 2-12 days

0

15

Scag 48482-05

HOSE, 1/4 PUSHLOCK
(Superseded to 48482)

$0.99

$

In Stock, Qty 20+

0

16

Scag 48853

HOSE, DUMP VALUE

$37.99

$

Usually ships in 2-12 days

0

17

Scag 48350-05

ELBOW

$32.99

$

Usually ships in 2-12 days

0

18

Scag 48856

INLET HOSE, 3/4" ID

$73.99

$

Usually ships in 2-12 days

0

19

Scag 48937-01

TEE, 1/2" RUN

$45.99

$

Usually ships in 2-12 days

0

20

Scag 48905

MOTOR HOSE

$82.99

$

Usually ships in 2-12 days

0

21

Scag 48634

HOSE, PUMP TO OIL COOLER

$48.99

$

Usually ships in 2-12 days

0

22

Scag 48936-01

COUPLING, FLARE SWIVEL

$33.99

$

Usually ships in 2-12 days

0

23

Scag 48353-02

COUPLING, FLARE SWIVEL WITH HOSE BARB

$4.49

$

Usually ships in 2-12 days

0

24

Scag 48572-04

TUBE UNION

$8.49

$

In Stock, only 1 left!

0

25

Scag 48938-01

O-RING BUSHING

$21.99

$

Usually ships in 2-12 days

0

26

Scag 48603-02

O-RING

$3.49

$

In Stock, only 3 left!

0

27

Scag 48603-03

O-RING

$3.49

$

Usually ships in 2-12 days

0

28

Scag 48603-04

O-RING

$8.99

$

In Stock, only 2 left!

0

29

Scag 48571-03

CAP

$

$

Not available

30

Scag 48810-02

TEE, JIC TO O-RING

$90.99

$

Usually ships in 2-12 days

0

31

Scag 48602-04

HOSE
(Superseded to 48602)

$1.99

$

Usually ships in 2-12 days

0

32

Scag 48911-01

COMPRESSION FITTING

$12.99

$

Usually ships in 2-12 days

0
